METER / GAUGE / DISPLAY: COMBINATION METER: REMOVAL

1. REMOVE LOWER STEERING COLUMN COVER Removal

2. REMOVE UPPER STEERING COLUMN COVER Removal

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

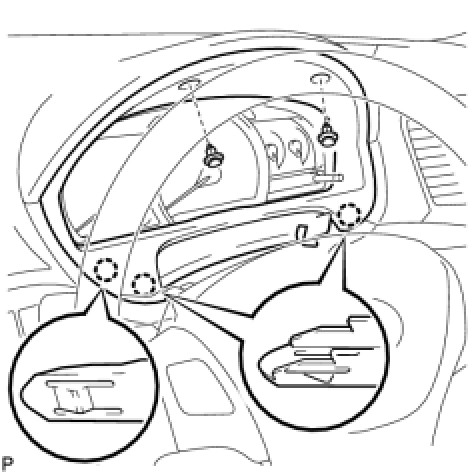

4. REMOVE INSTRUMENT CLUSTER FINISH PANEL

(a) Remove the 2 clips.





(b) Disengage the 3 claws and remove the instrument cluster finish panel.

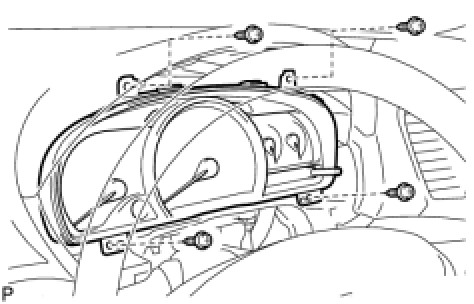

5. REMOVE COMBINATION METER ASSEMBLY

(a) Remove the 4 screws.





(b) Disconnect the connectors and remove the combination meter assembly.
