Installation

METER / GAUGE / DISPLAY: ACCESSORY METER: INSTALLATION

1. INSTALL ACCESSORY METER ASSEMBLY (w/o Rear View Monitor System)

(a) Connect the connector.

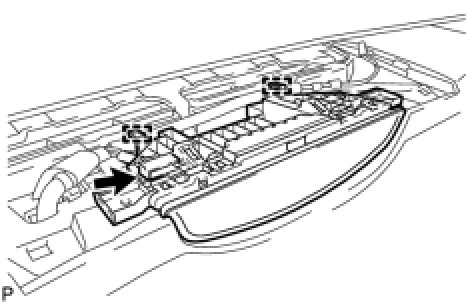

(b) Engage the 2 clamps.

(c) Engage the 2 clips.

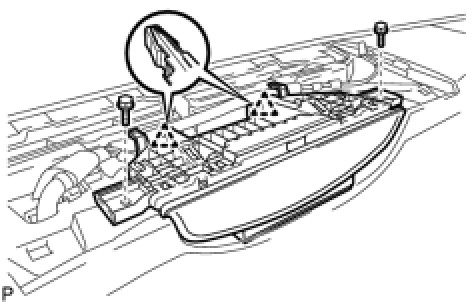

(d) Install the accessory meter assembly with the 2 bolts.

2. INSTALL ACCESSORY METER ASSEMBLY (w/ Rear View Monitor System)

(a) Connect the connectors.

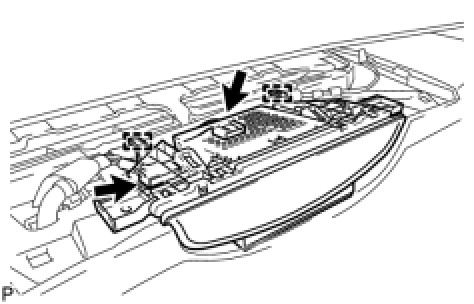

(b) Engage the 2 clamps.

(c) Engage the 2 clips.

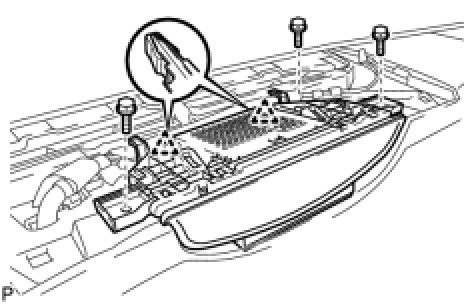

(d) Install the accessory meter assembly with the 3 bolts.

3. INSTALL DEFROSTER NOZZLE GARNISH Installation
