Installation

LIGHTING (INT): REAR DOOR COURTESY SWITCH: INSTALLATION

1. INSTALL REAR DOOR COURTESY LIGHT SWITCH

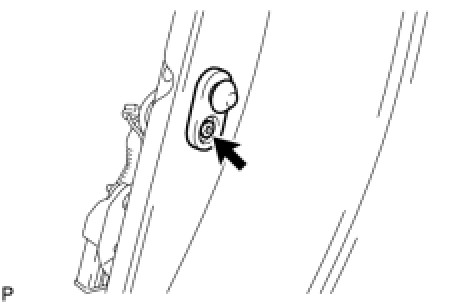

(a) Using "TORX" socket wrench T30, install the rear door courtesy light switch with the "TORX" bolt.





Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(b) Connect the rear door courtesy light switch connector.

2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side) Installation

3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side) Installation

4. CONNECT REAR SEAT OUTER BELT ASSEMBLY Installation

5. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation

6. INSTALL RECLINING REMOTE CONTROL BEZEL Installation

7. INSTALL REAR SEAT ASSEMBLY LH (for LH Side) Installation

8. CONNECT REAR SEAT NO. 2 RECLINING CONTROL CABLE SUB-ASSEMBLY (for LH Side) Installation

9. INSTALL REAR SEAT OUTER TRACK BRACKET COVER (for LH Side) Installation

10. INSTALL REAR SEAT INNER TRACK BRACKET COVER (for LH Side) Installation

11. INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side) Installation

12. INSTALL REAR SEAT ASSEMBLY RH (for RH Side) Installation

13. CONNECT REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY (for RH Side) Installation

14. INSTALL REAR SEAT OUTER TRACK BRACKET COVER (for RH Side) Installation

15. INSTALL REAR SEAT INNER TRACK BRACKET COVER (for RH Side) Installation

16. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side) Installation

17. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side) Installation

18. INSTALL REAR FLOOR FINISH PLATE Installation

19. INSTALL REAR SEAT SUB FLOOR PANEL ASSEMBLY Installation

20. INSTALL NO. 1 DECK BOARD Installation

21. INSTALL DECK SIDE TRIM BOX LH Installation

22. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY Installation

23. INSTALL DECK SIDE TRIM BOX RH Installation

24. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY Installation

25. INSTALL DECK BOARD ASSEMBLY Installation

26. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover) Installation

27. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP Installation

28. INSTALL REAR DOOR SCUFF PLATE Installation
