Clock: Description and Operation

METER / GAUGE / DISPLAY: CLOCK SYSTEM: SYSTEM DIAGRAM

1. CAN AND DIRECT LINE SIGNALS

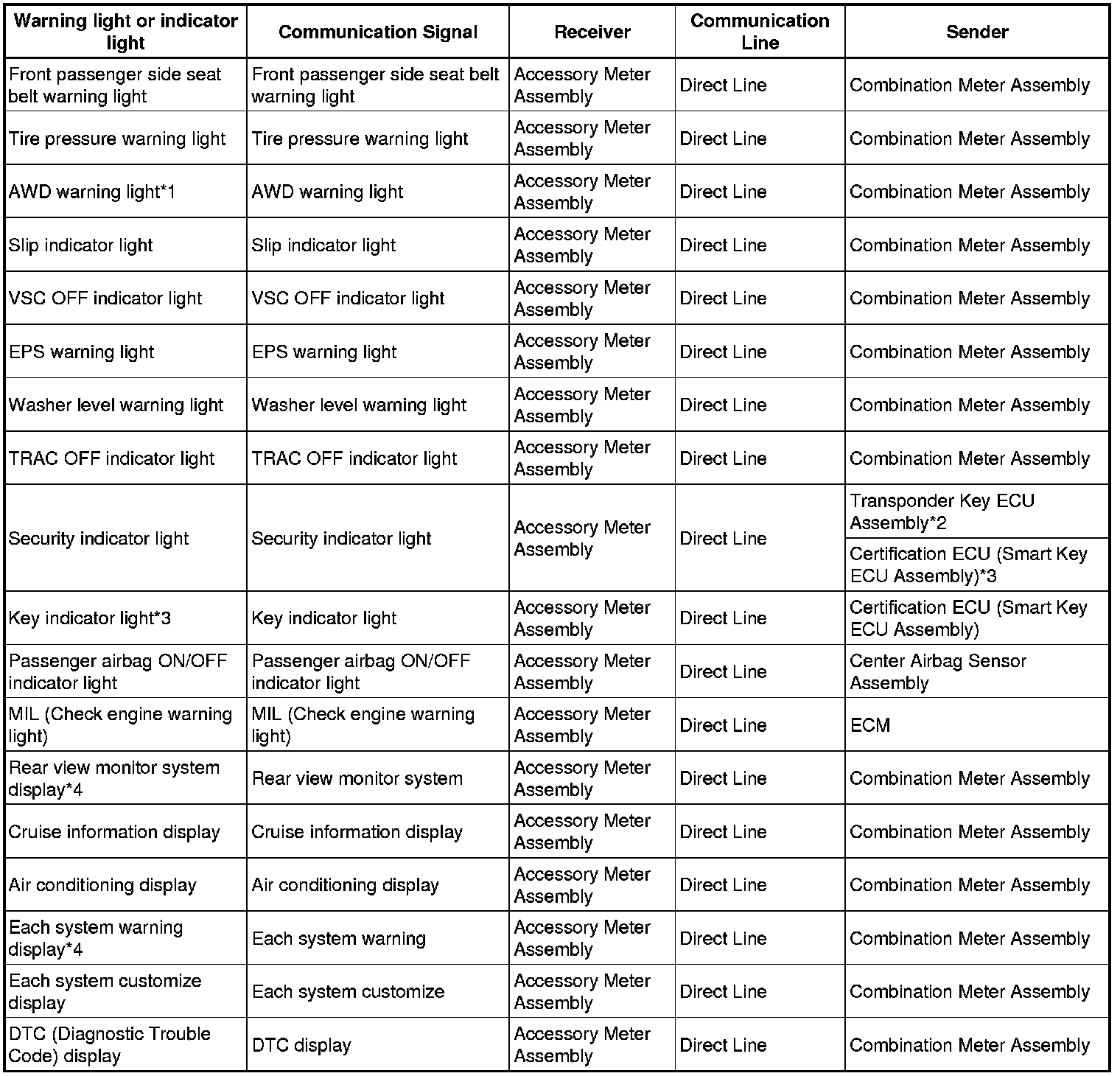

2. INPUT AND OUTPUT SIGNALS OF THE ACCESSORY METER ASSEMBLY





* *1: for AWD

* *2: w/o Smart Key System

* *3: w/ Smart Key System

* *4: w/ Rear View Monitor System

METER / GAUGE / DISPLAY: CLOCK SYSTEM: SYSTEM DESCRIPTION

1. ACCESSORY METER ASSEMBLY

(a) Warning or Indicator





* *1: for AWD

* *2: w/o Smart Key System

* *3: w/ Smart Key System

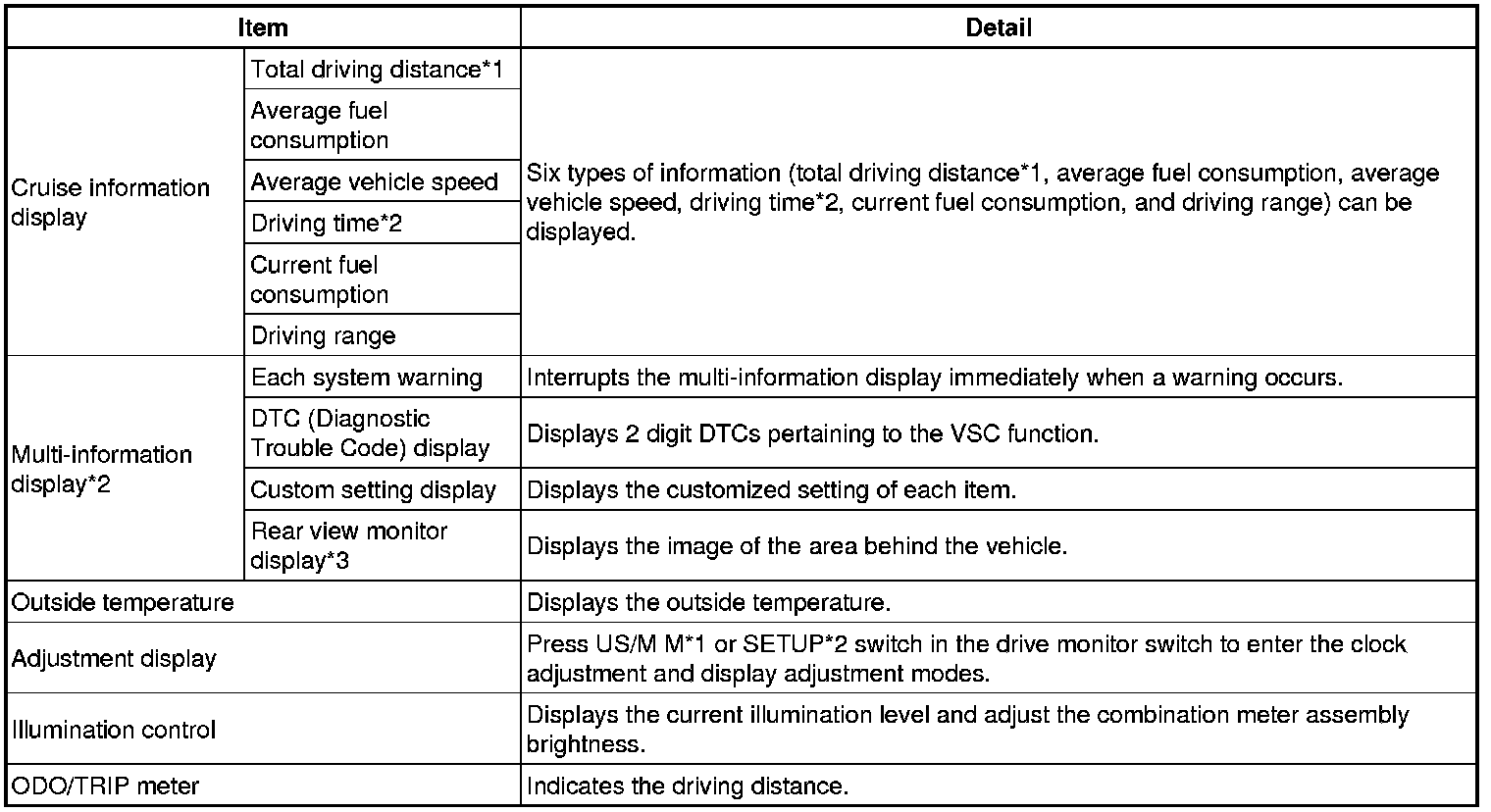

(b) Multi-information Display





* *1: w/o Rear View Monitor System

* *2: w/ Rear View Monitor System

* *3: w/ Navigation System
