Installation

HEATING / AIR CONDITIONING: FRONT EVAPORATOR TEMPERATURE SENSOR: INSTALLATION

1. INSTALL NO. 1 COOLER THERMISTOR

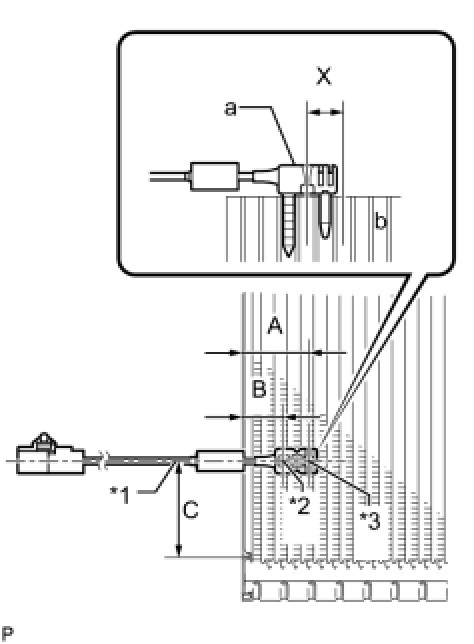

(a) Install the No. 1 cooler thermistor as shown in the illustration.

Text in Illustration:

NOTICE:
* Be sure to insert the thermistor only once because reinserting it into the same position will not allow it to be firmly secured.
* When reusing the evaporator, insert the thermistor one row next to the one that has been used previously (X in the illustration).
* After inserting the thermistor, do not apply excessive force to the wire.
* Directly insert the thermistor until the edge of plastic case "a" comes into contact with evaporator "b".
2. INSTALL COOLER EVAPORATOR SUB-ASSEMBLY Reassembly

3. INSTALL BLOWER ASSEMBLY Installation

4. INSTALL COOLER EXPANSION VALVE Reassembly

5. INSTALL AIR CONDITIONING HARNESS ASSEMBLY (for Manual Air Conditioning System) Reassembly

6. INSTALL AIR CONDITIONING HARNESS ASSEMBLY (for Automatic Air Conditioning System) Reassembly

7. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY Reassembly

8. INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY Reassembly

9. INSTALL NO. 2 FINISH PANEL MOUNTING BRACKET Reassembly

10. INSTALL NO. 1 FINISH PANEL MOUNTING BRACKET Reassembly

11. INSTALL AIR CONDITIONING UNIT ASSEMBLY

HINT
Refer to the procedure for Install Air Conditioning Unit Assembly Installation.
