Reassembly

HEATING / AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

1. INSTALL FRONT BLOWER MOTOR SUB-ASSEMBLY

(a) Install the front blower motor sub-assembly with the 3 screws.





2. INSTALL AIR INLET SERVO MOTOR SUB-ASSEMBLY

(a) Install the air inlet servo motor sub-assembly with the 3 screws.





3. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

(a) Install the air conditioning amplifier assembly with the 2 screws.





4. INSTALL CLEAN AIR FILTER

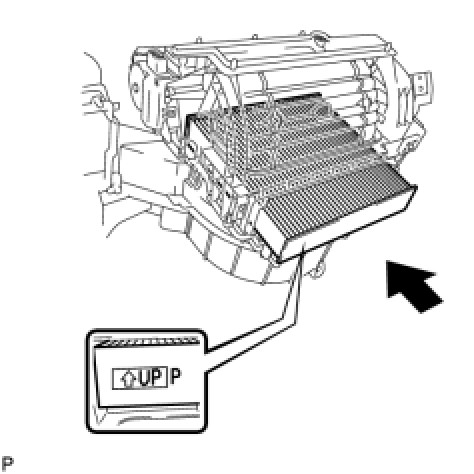

(a) Install the clean air filter as shown in the illustration.





5. INSTALL AIR FILTER COVER PLATE

(a) Engage the 2 claws to install the air filter cover plate.





6. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY

(a) Engage the 4 claws to install the No. 1 air duct sub-assembly.
