Fuel Pressure: Specifications

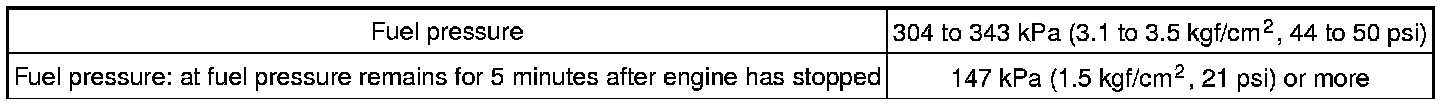

FUEL PRESSURE





Standard injection volume:

88 to 106 cc (5.4 to 6.5 cu in.) per 15 seconds

Standard difference between each injector:

18 cc (1.1 cu in.) or less
