Torque Specifications





SPECIFICATIONS: 1AR-FE COOLING: TORQUE SPECIFICATIONS

Coolant:





Water pump:





Thermostat:

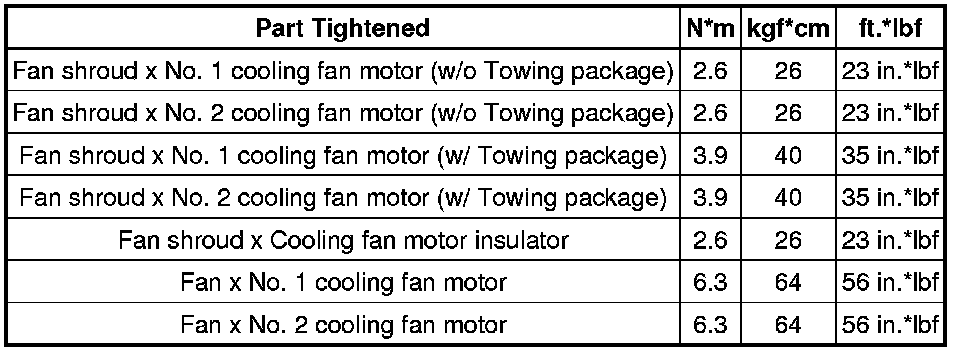

Cooling fan motor:

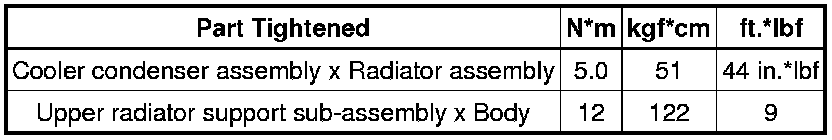

Radiator:
