Back Door Closer, Back Door Opener [w/o Power Back Door w/ Back Door Closer]

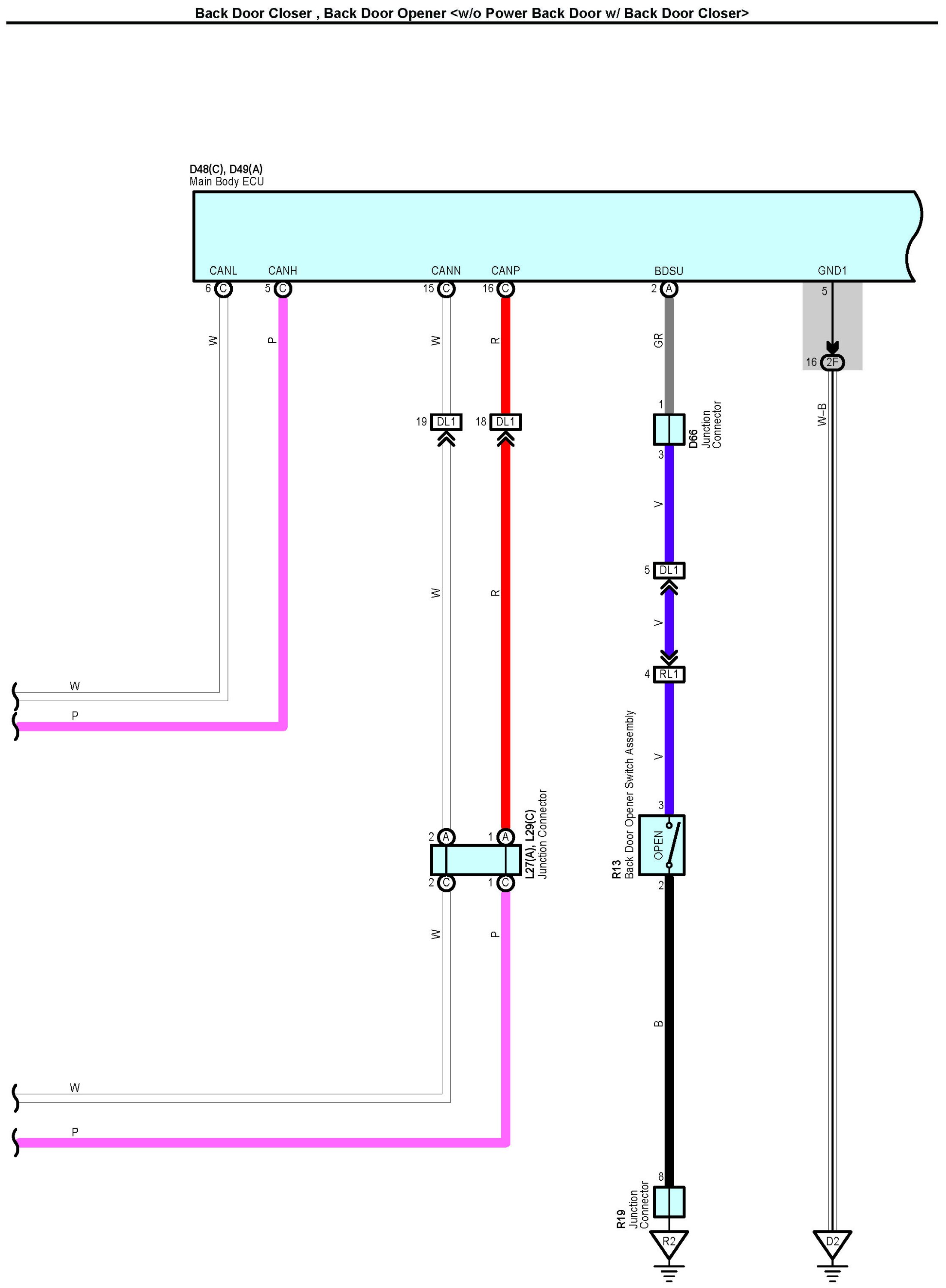

Back Door Closer, Back Door Opener [w/o Power Back Door w/ Back Door Closer] Part 1:

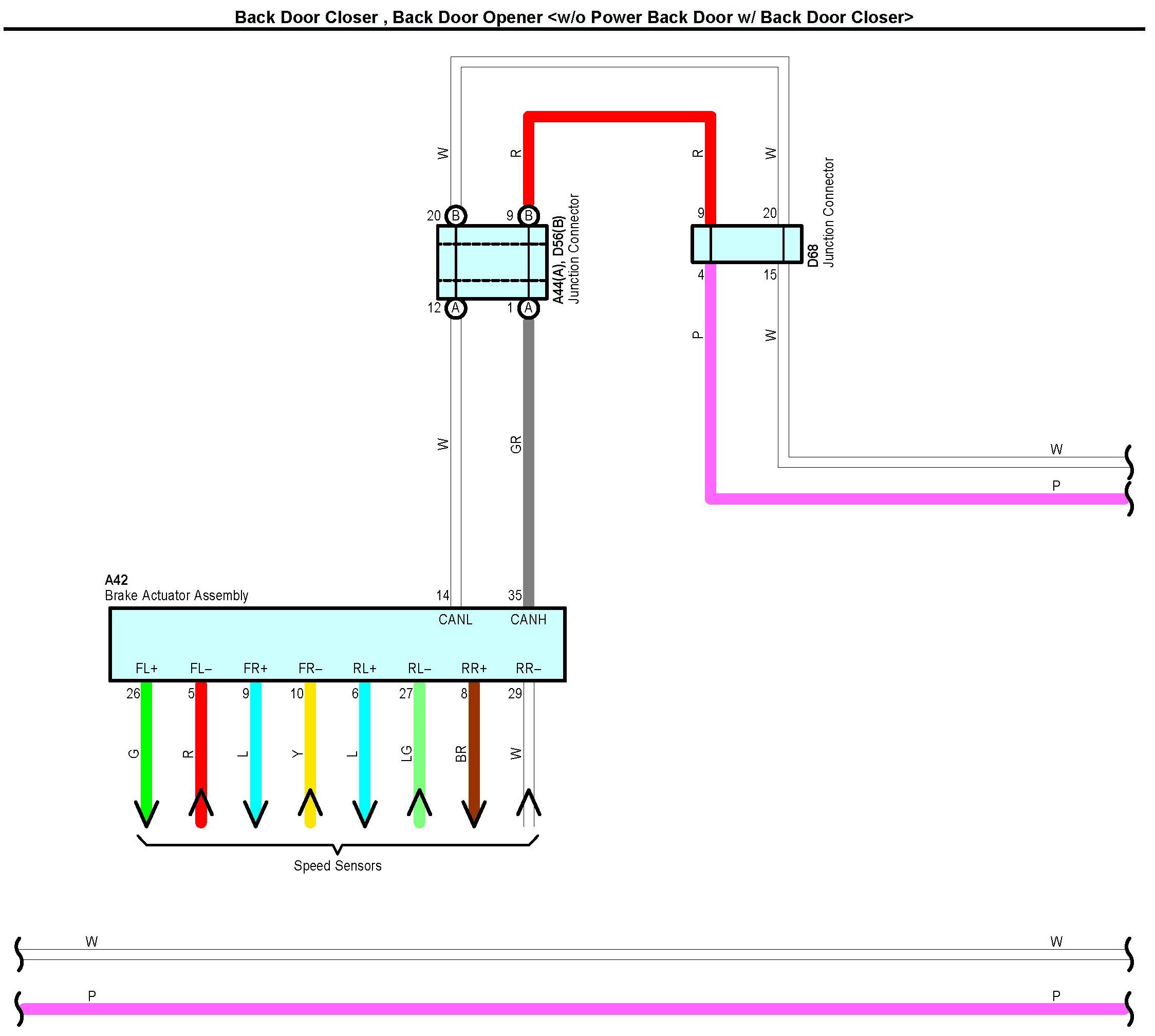

Back Door Closer, Back Door Opener [w/o Power Back Door w/ Back Door Closer] Part 2:

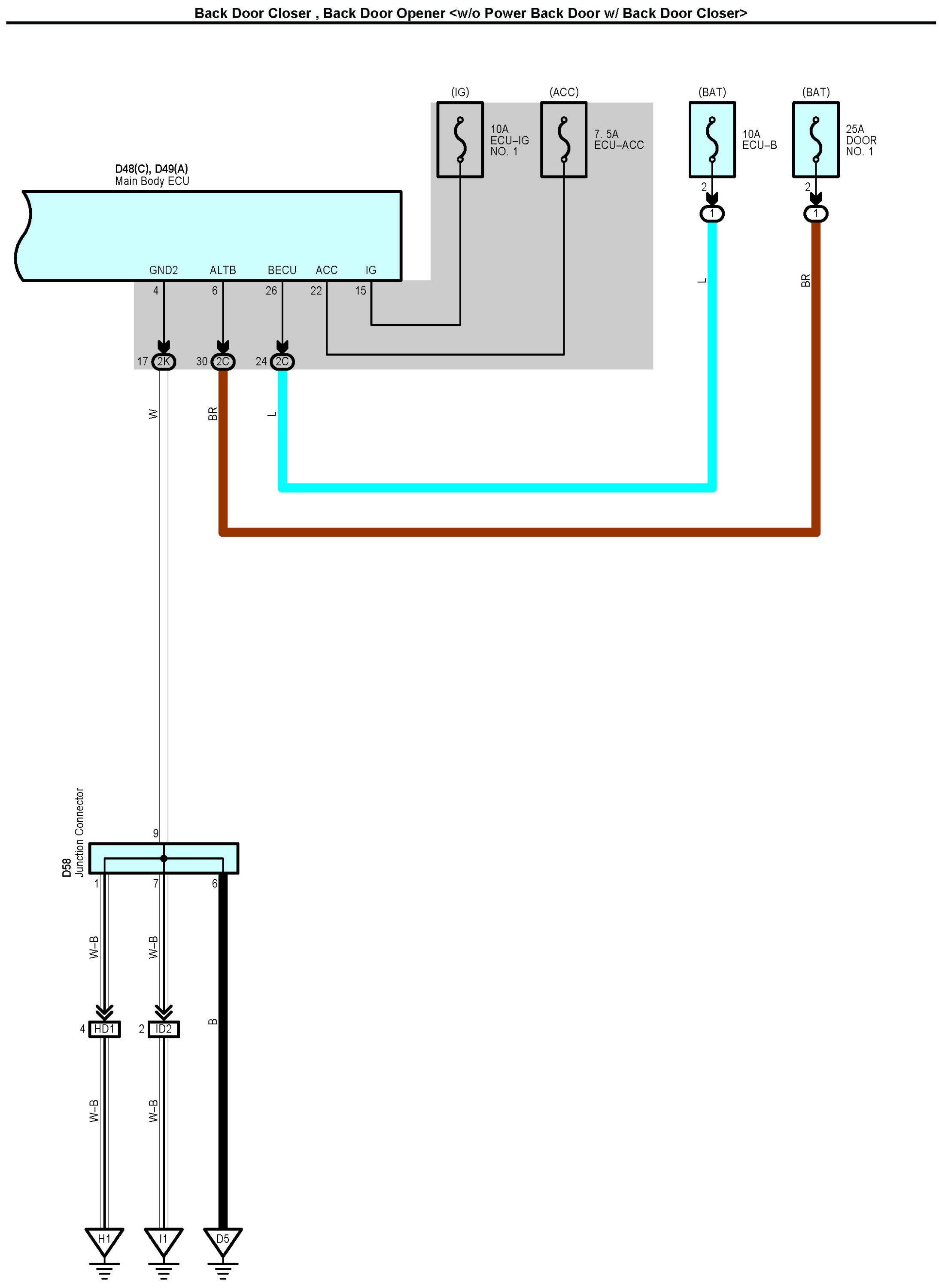

Back Door Closer, Back Door Opener [w/o Power Back Door w/ Back Door Closer] Part 3:

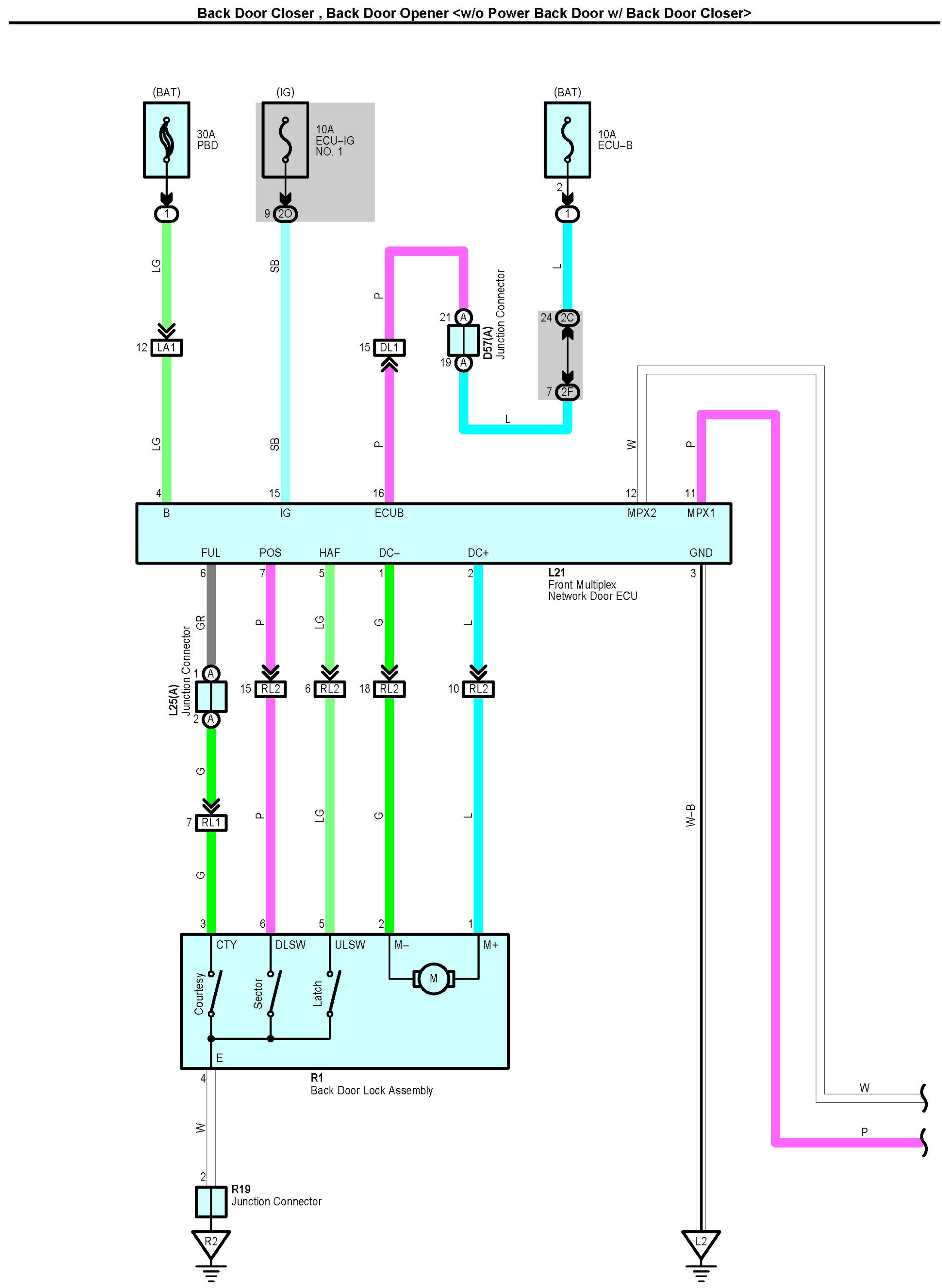

Back Door Closer, Back Door Opener [w/o Power Back Door w/ Back Door Closer] Part 4:

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
