Fuse Block

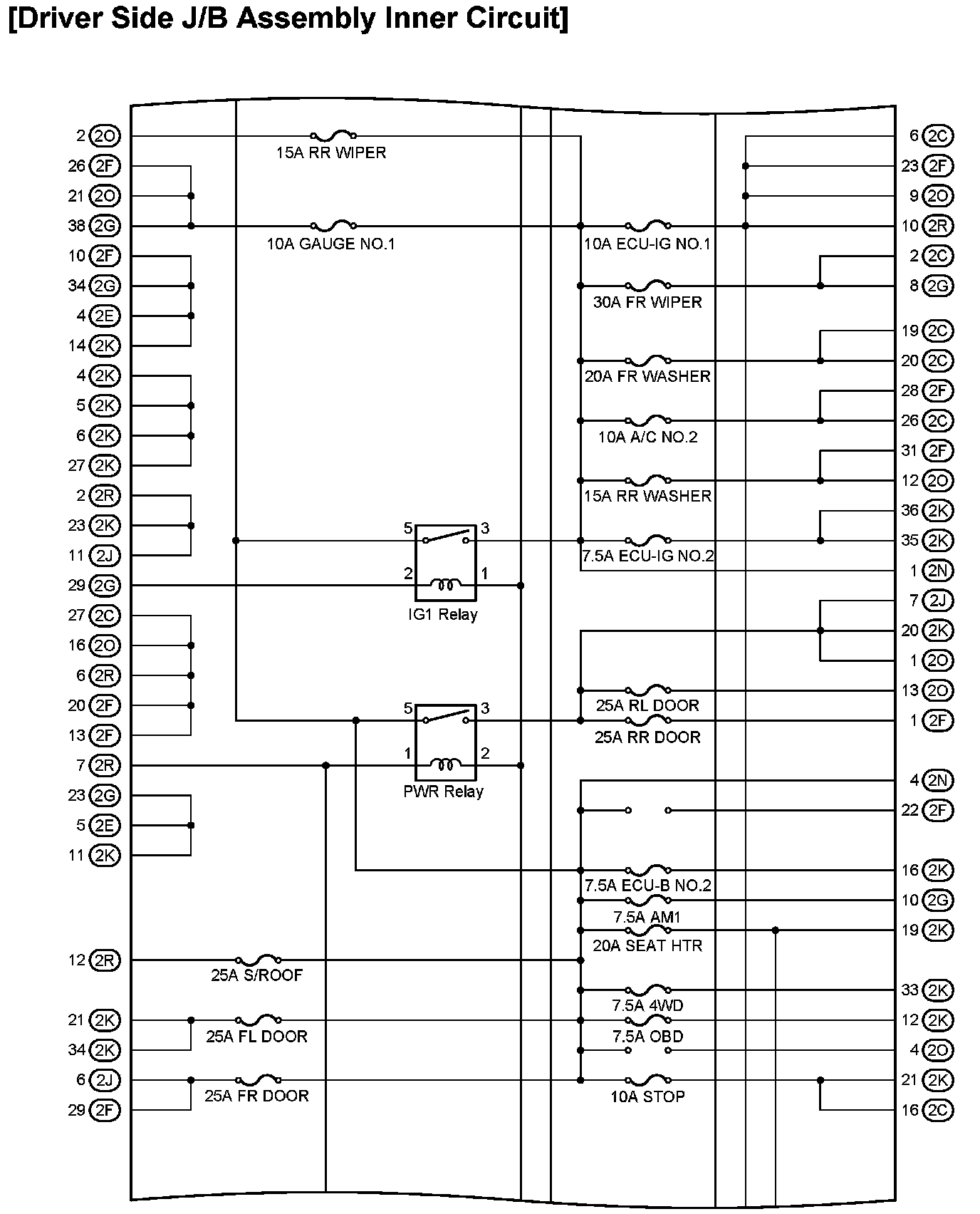

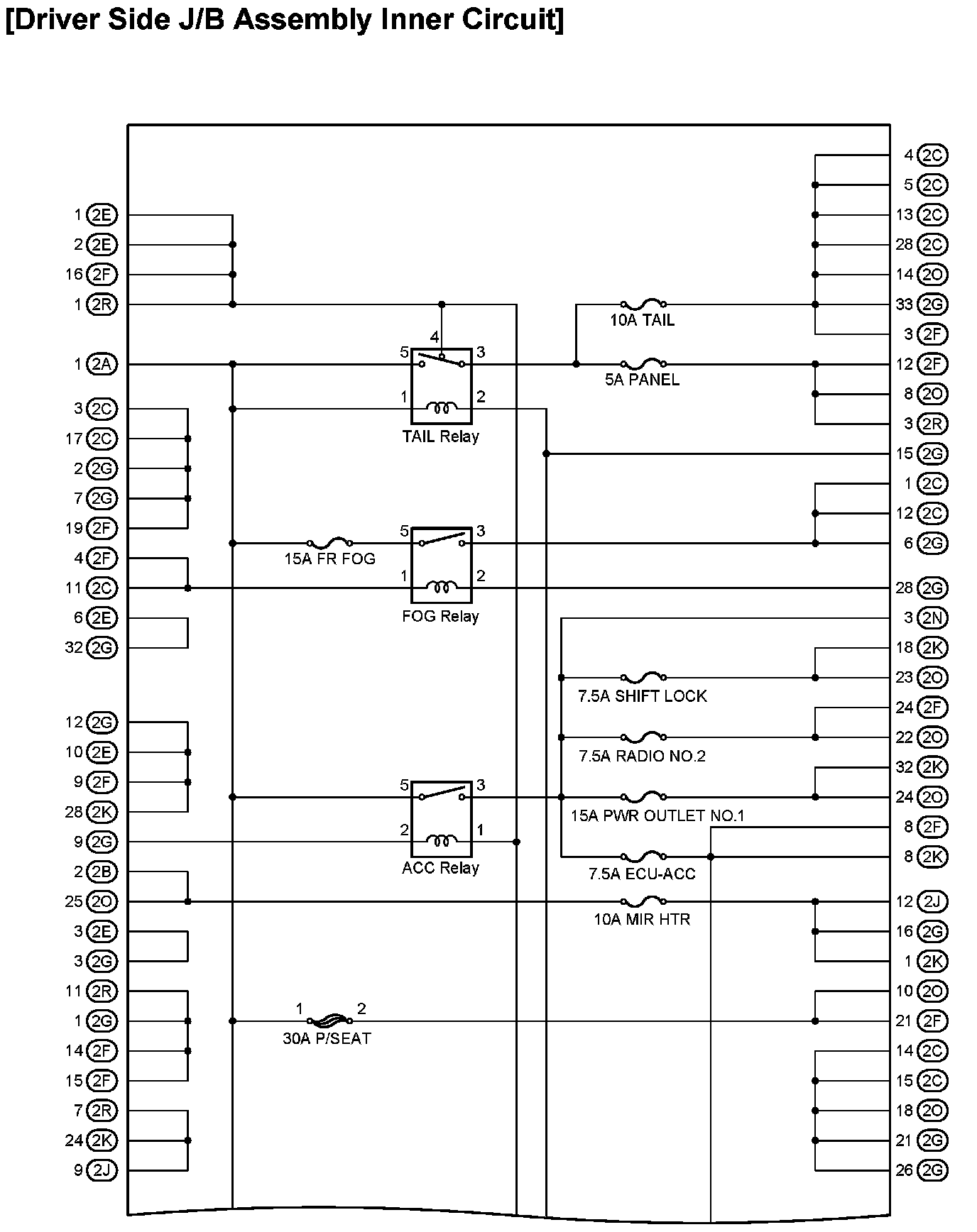

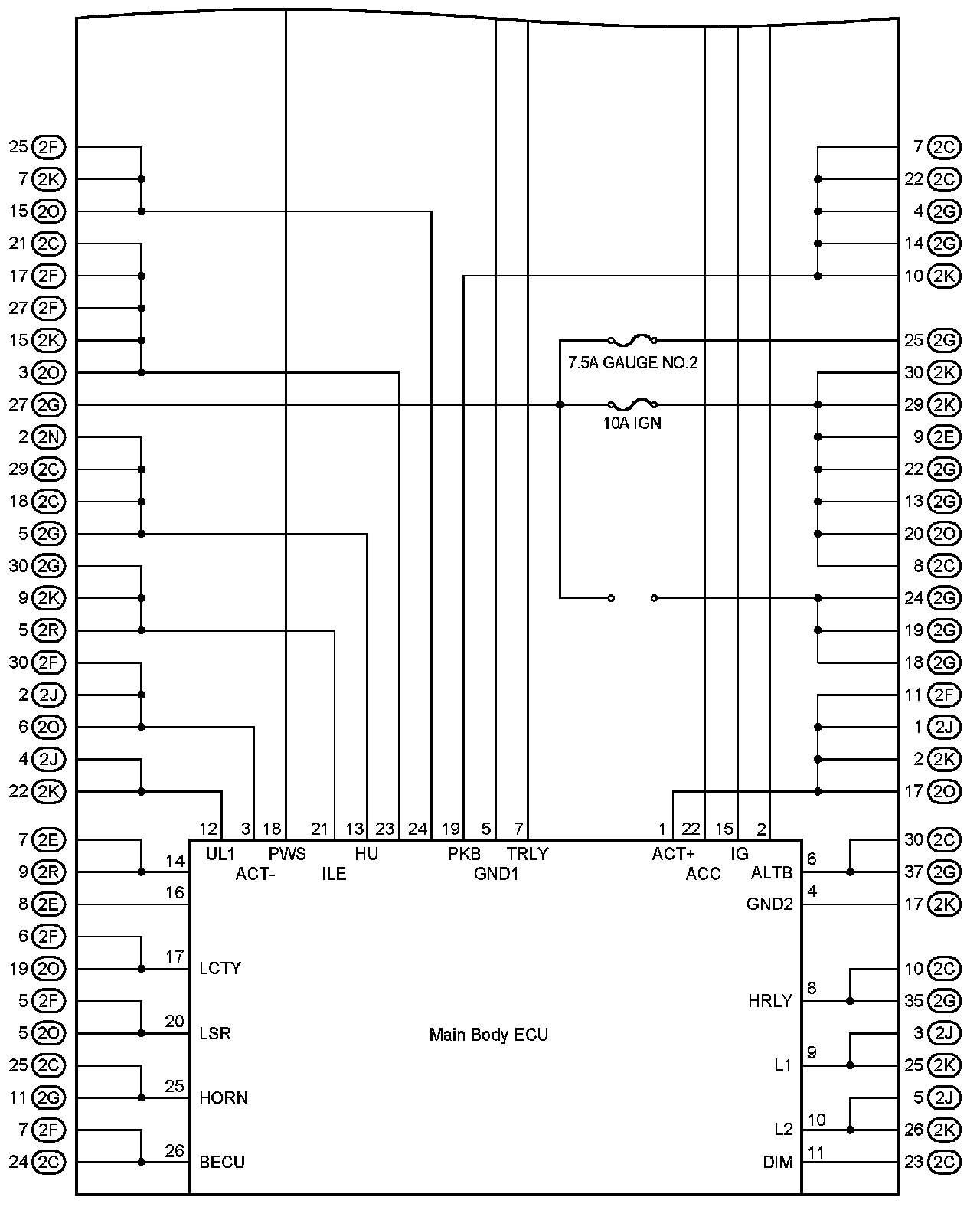

Driver Side J/B Assembly Inner Circuit:

Driver Side J/B Assembly Inner Circuit:

Driver Side J/B Assembly Inner Circuit:

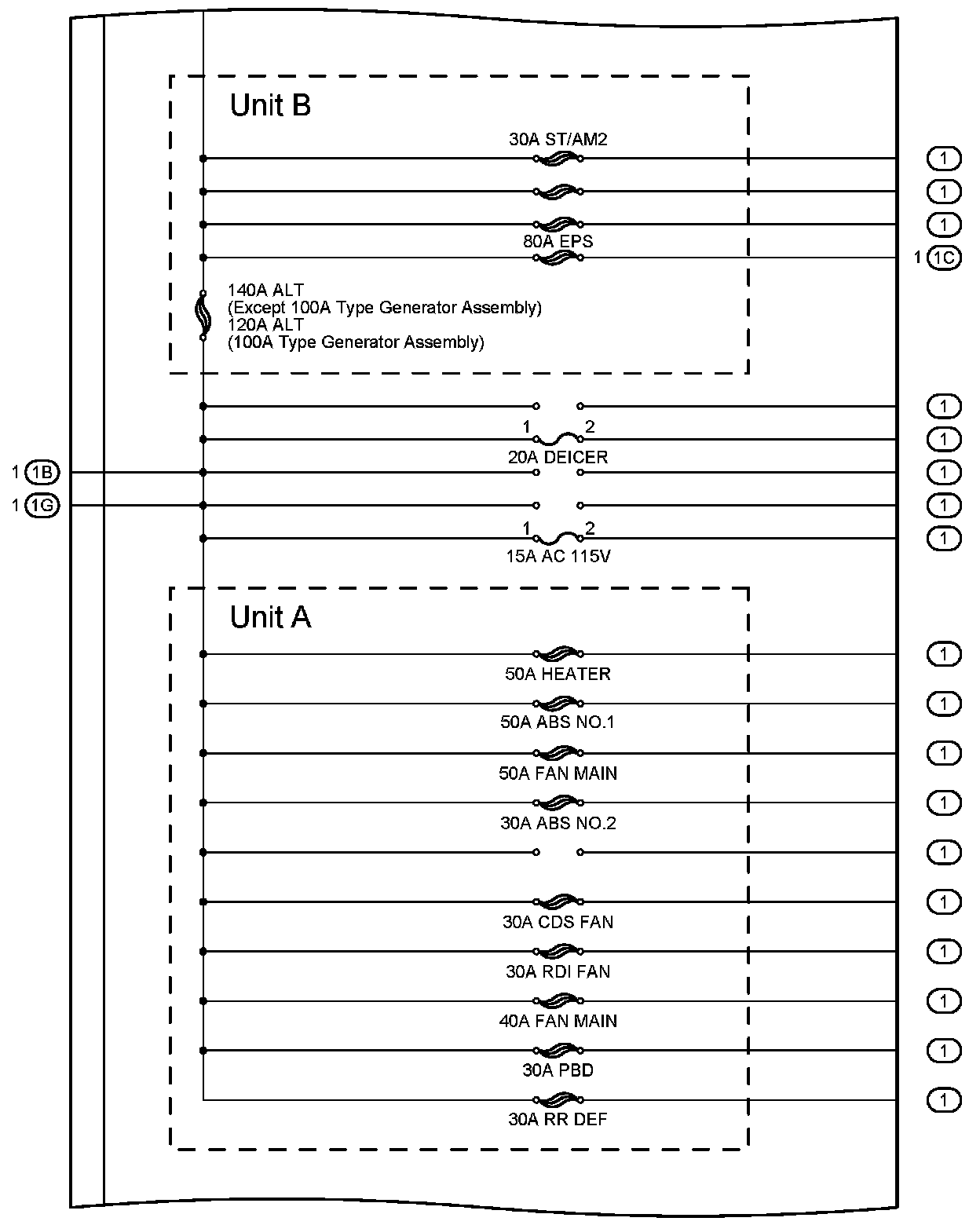

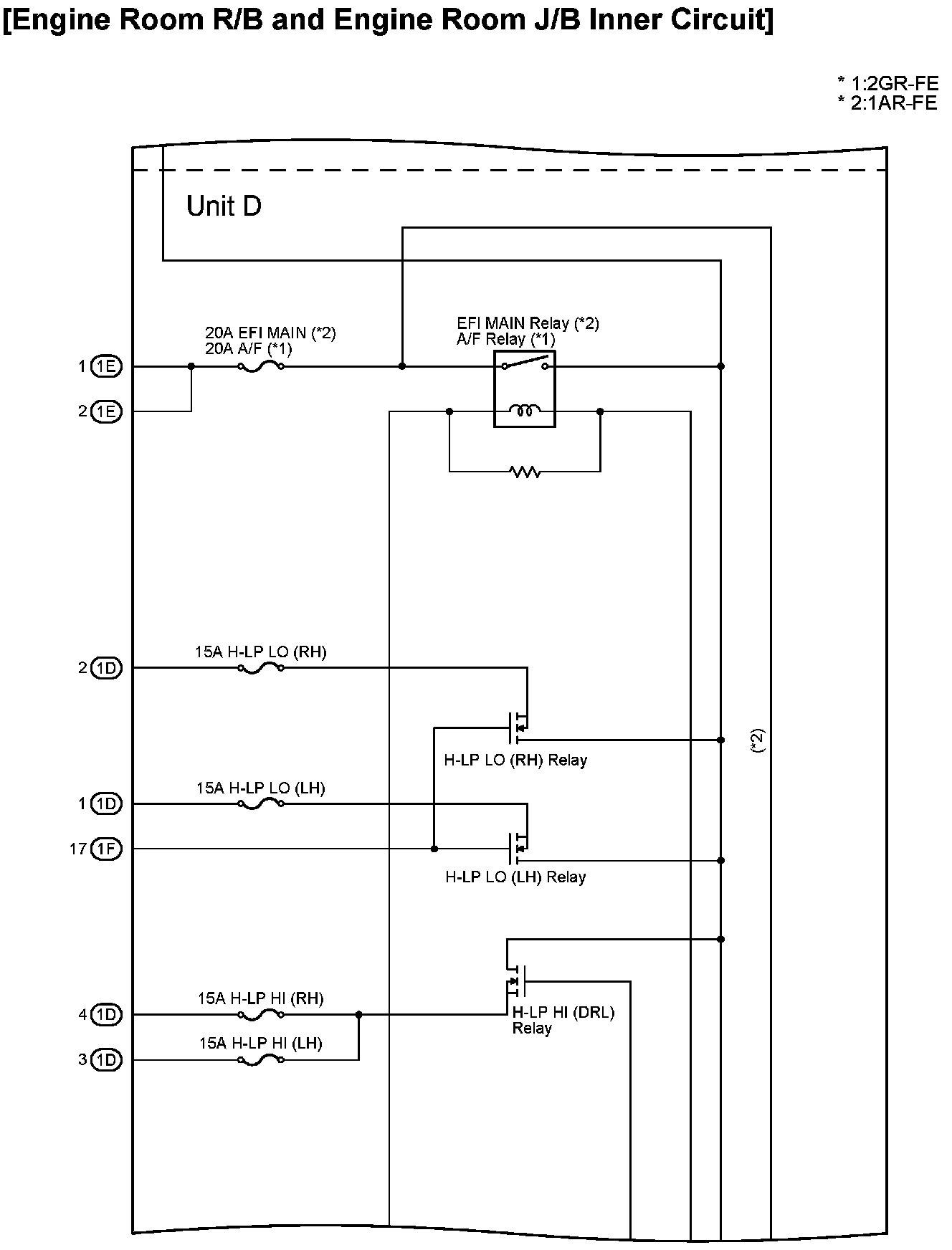

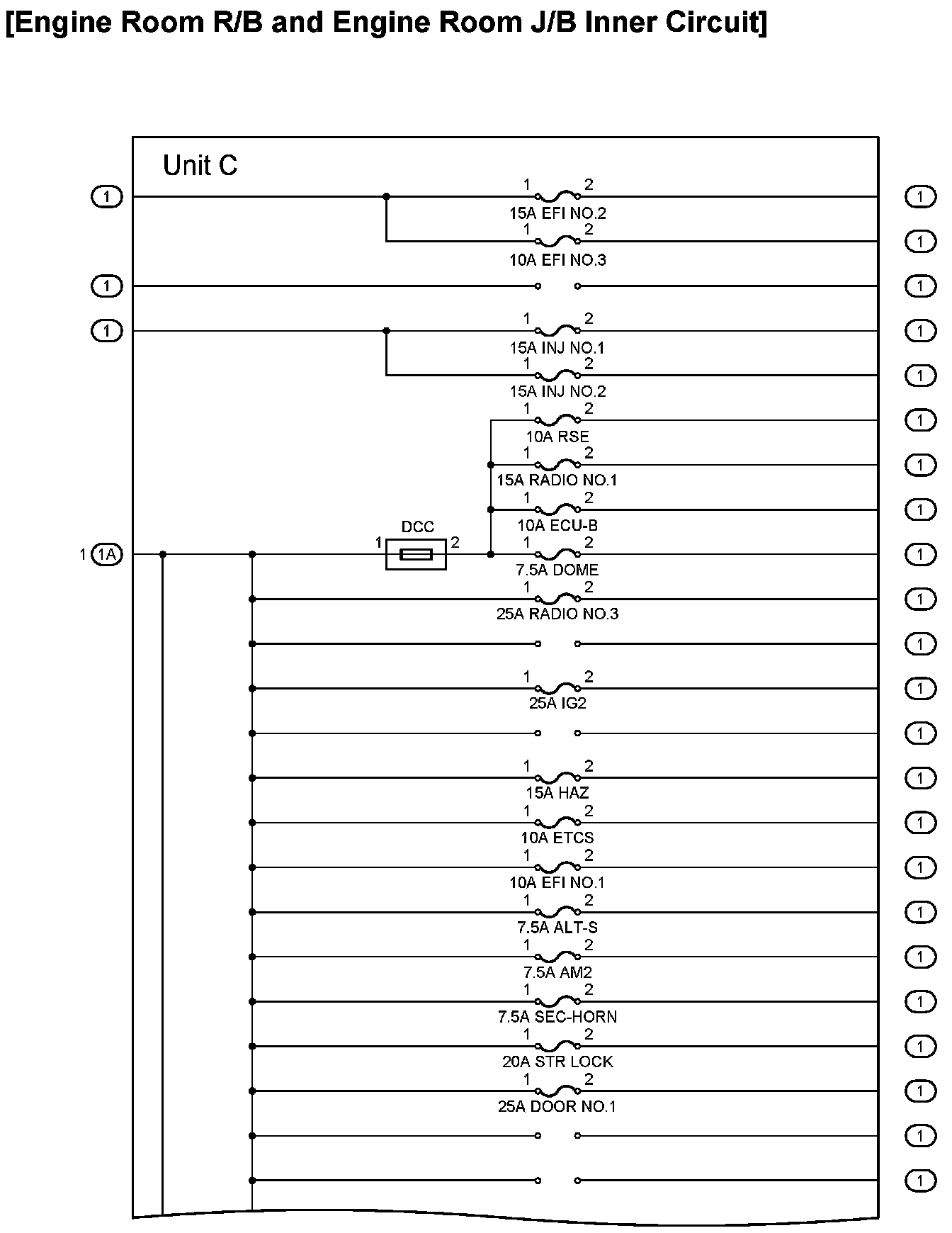

Engine Room R/B and Engine Room J/B Inner Circuit:

Engine Room R/B and Engine Room J/B Inner Circuit:

Engine Room R/B and Engine Room J/B Inner Circuit:

Engine Room R/B and Engine Room J/B Inner Circuit:
