Venza AWD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>

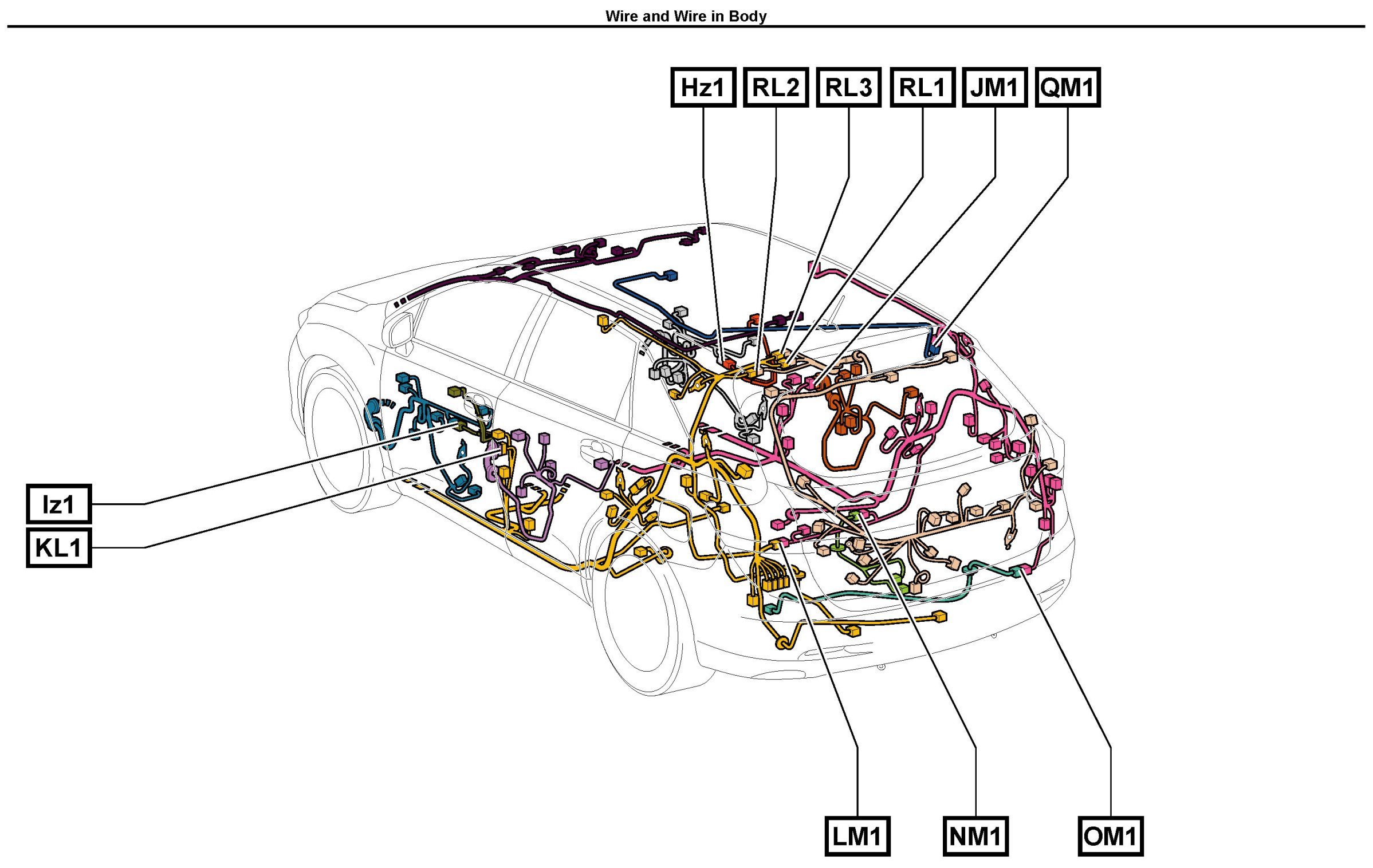

Wire and Wire In Body
Wire and Wire In Body

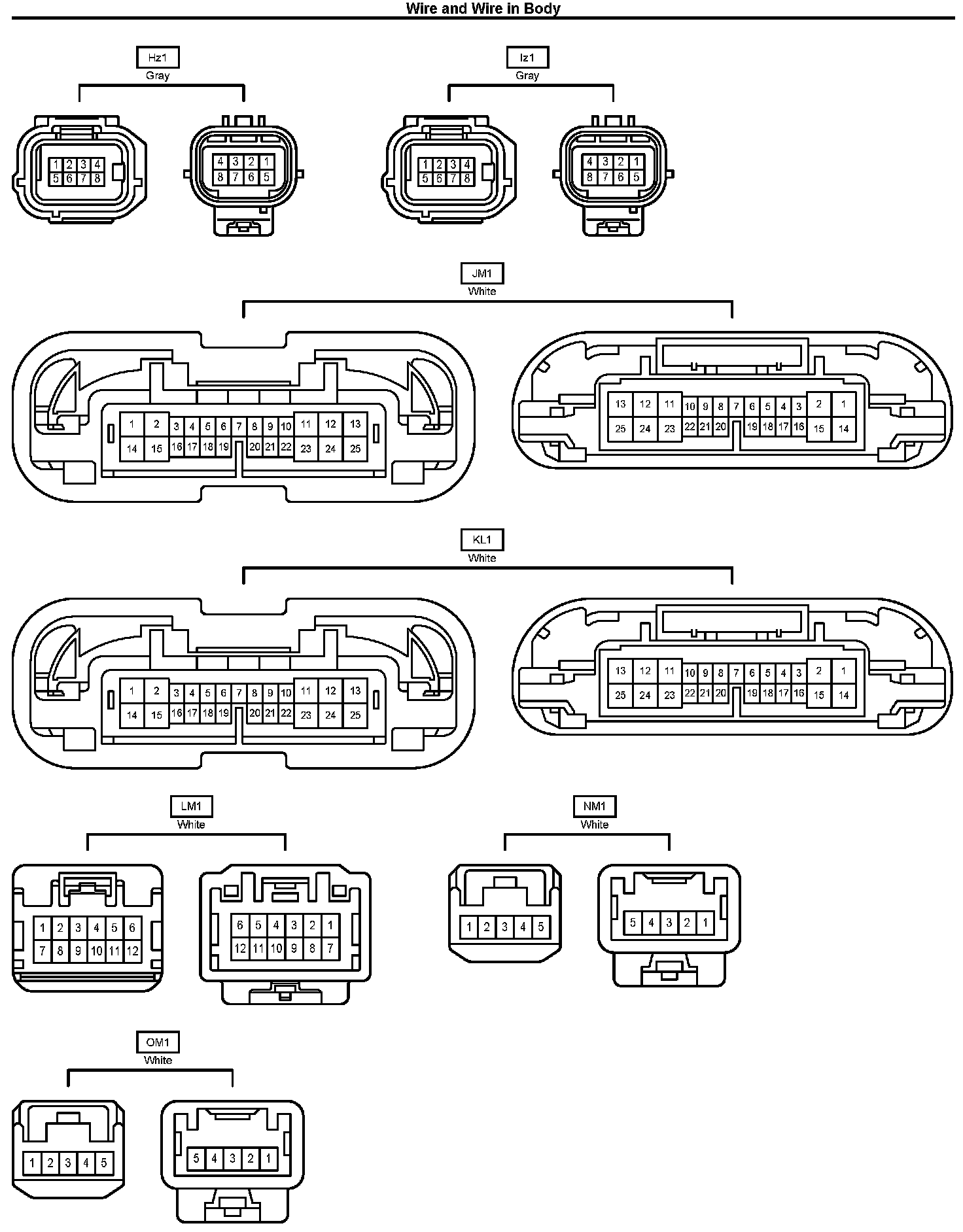

Hz1-RL3:
Hz1-OM1:

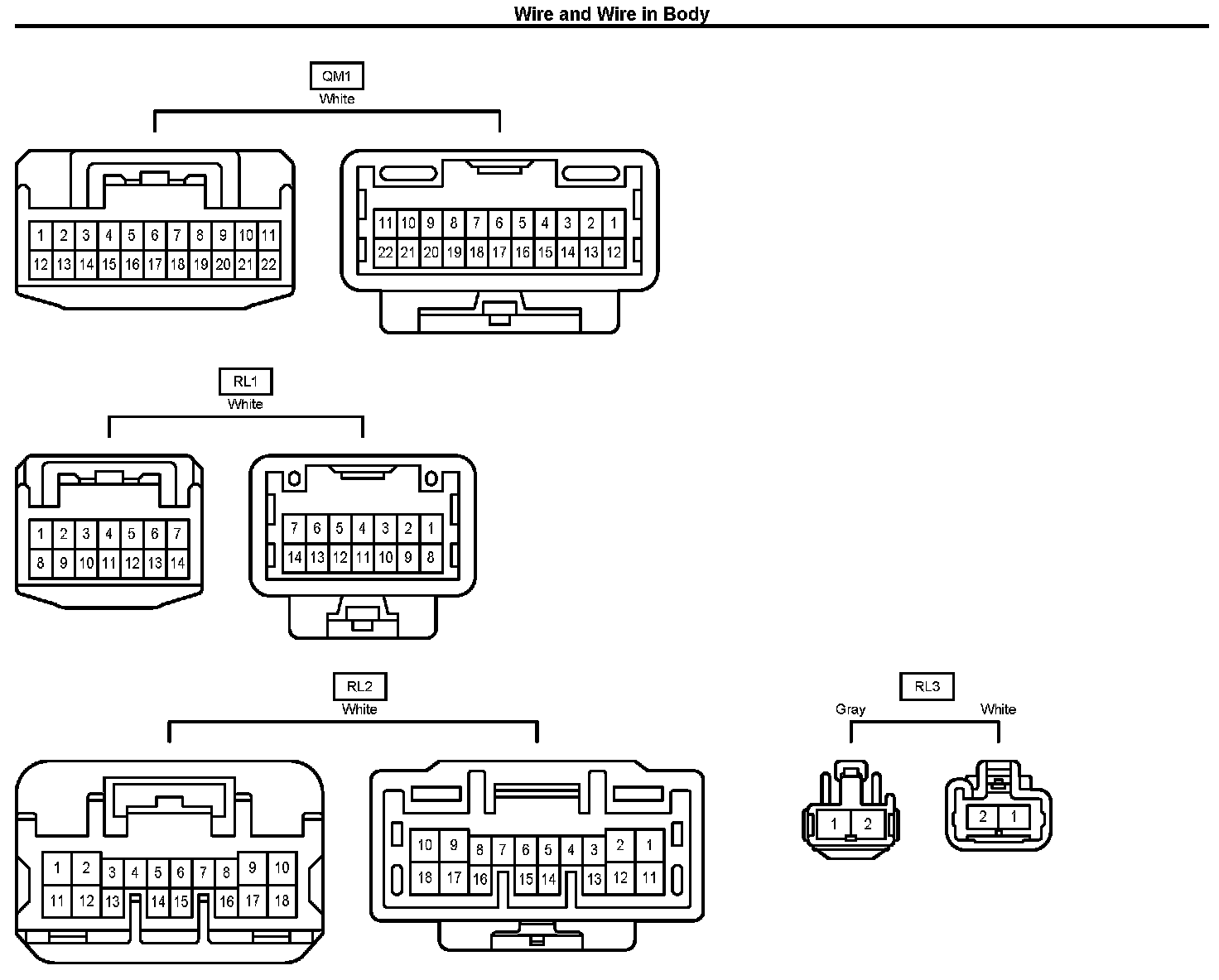

QM1-RL3:
