Venza AWD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>

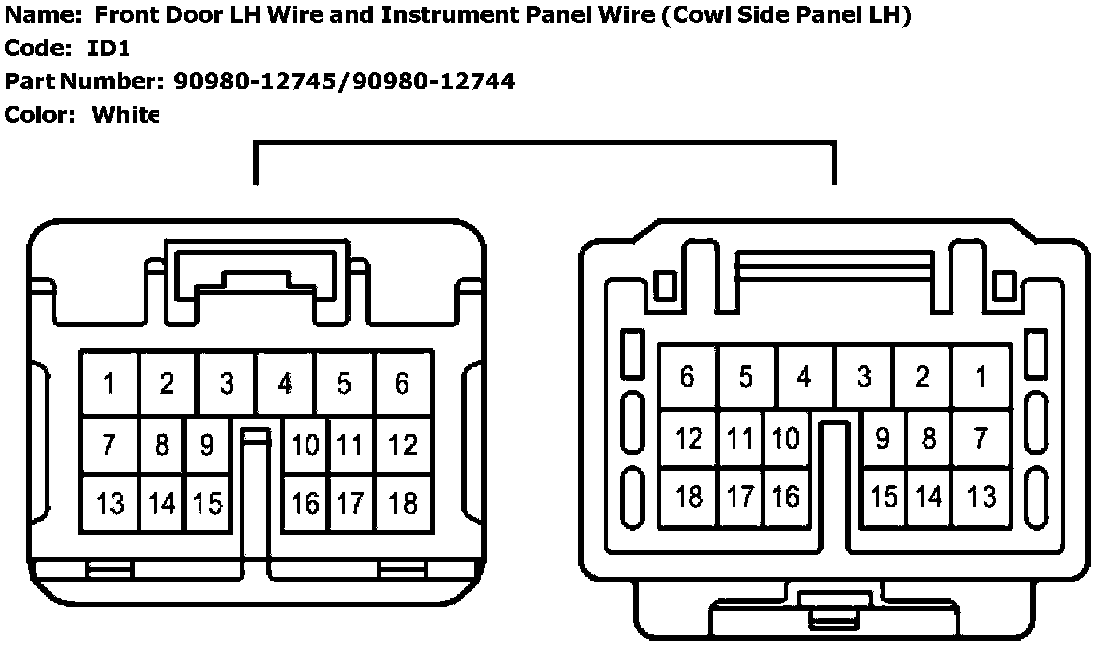

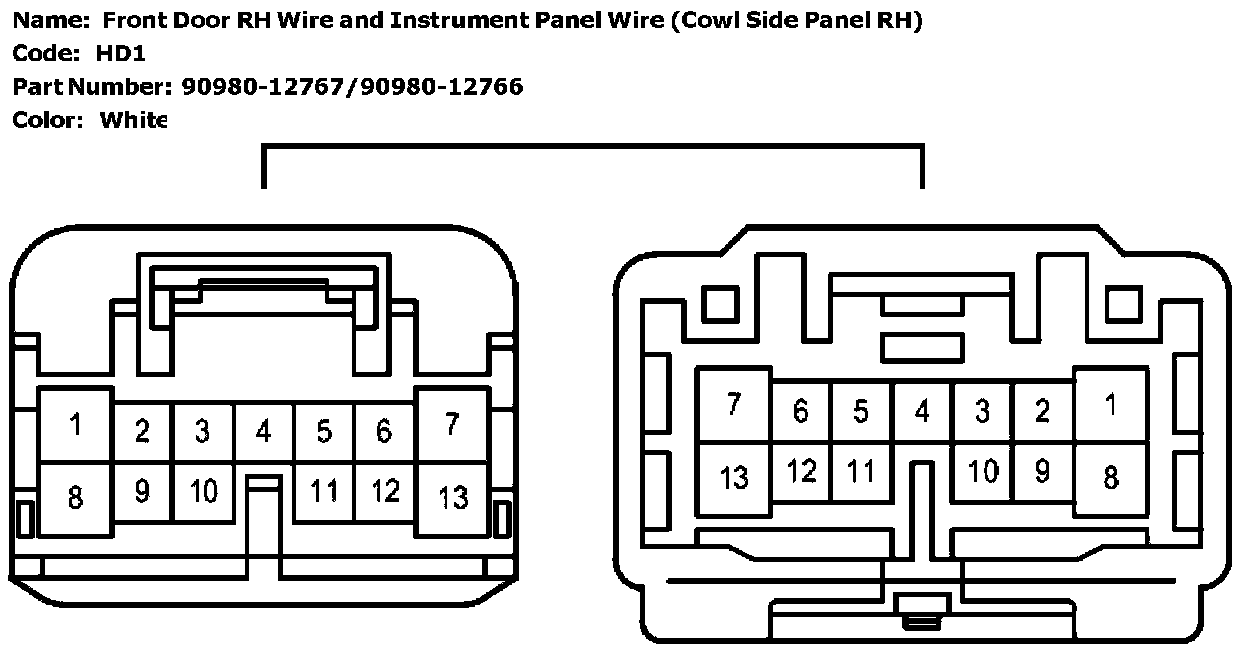

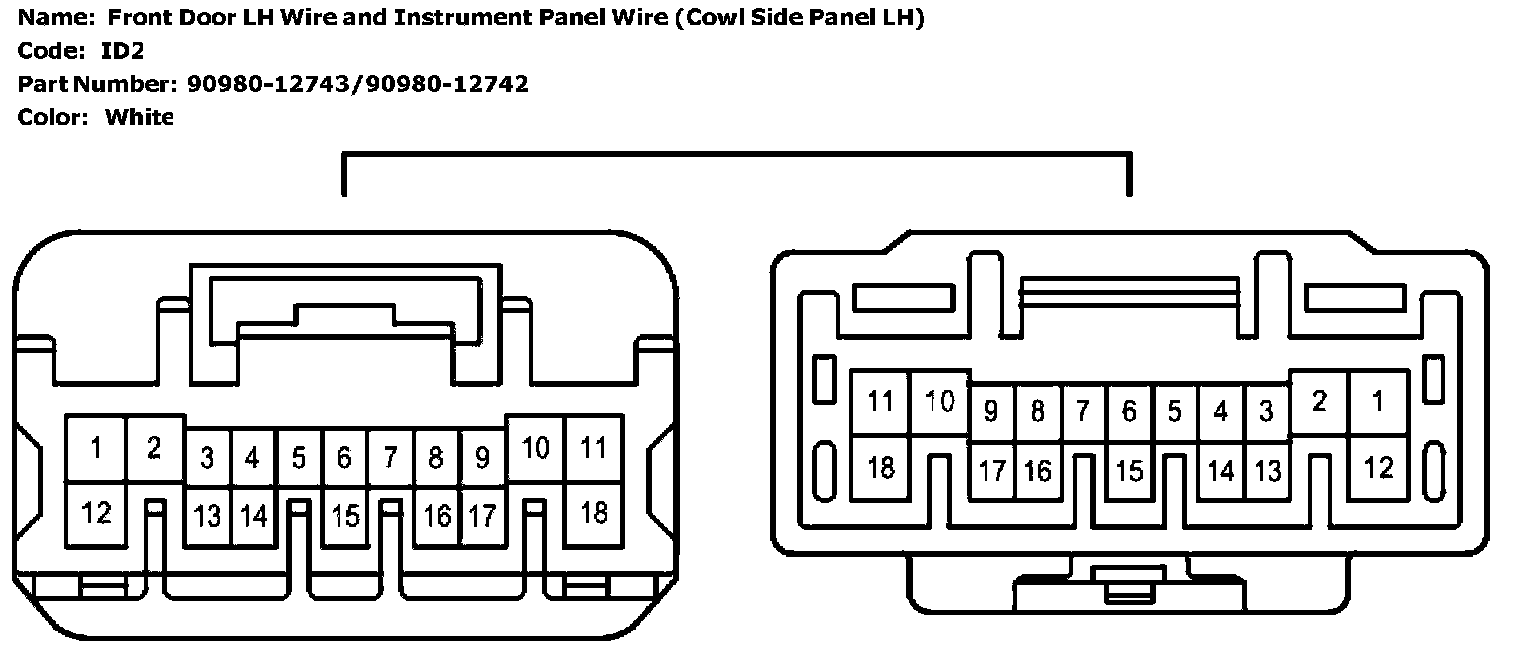

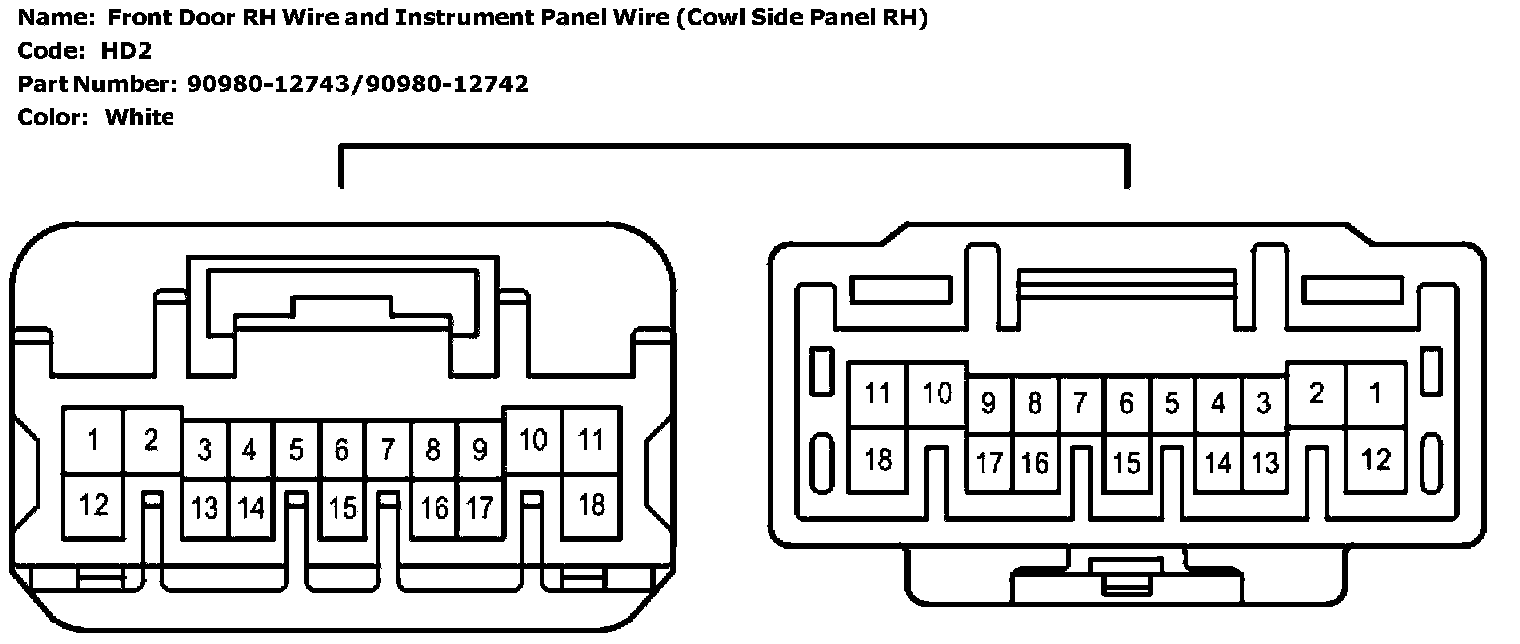

Front Door Wire
Front Door Wire

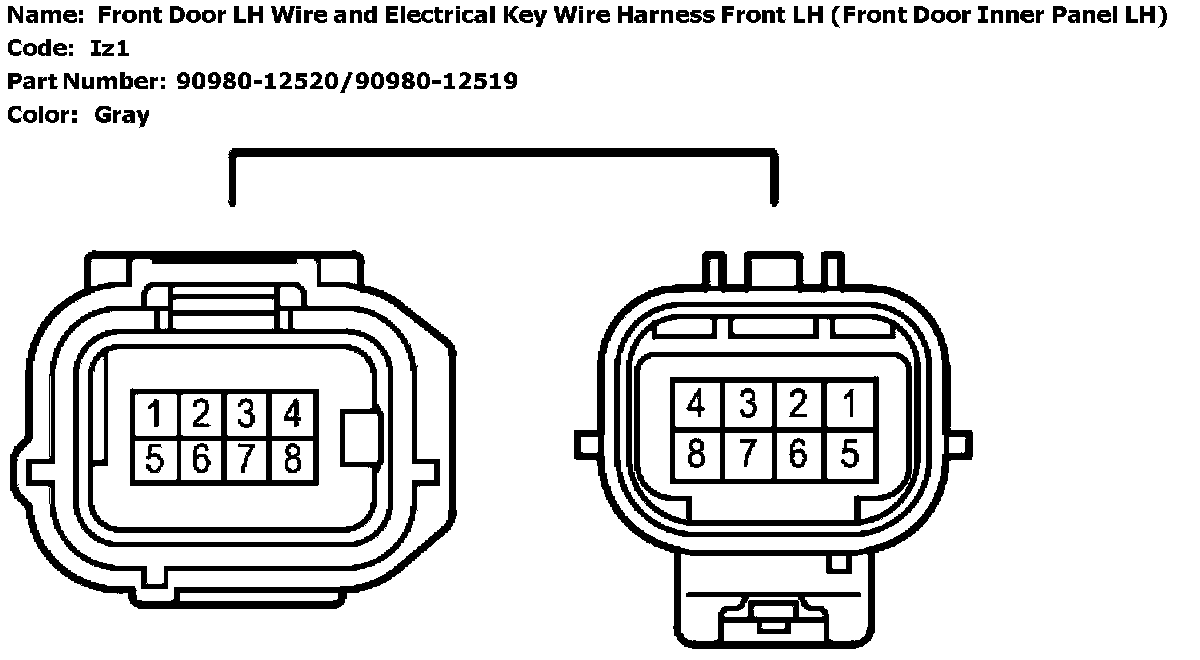

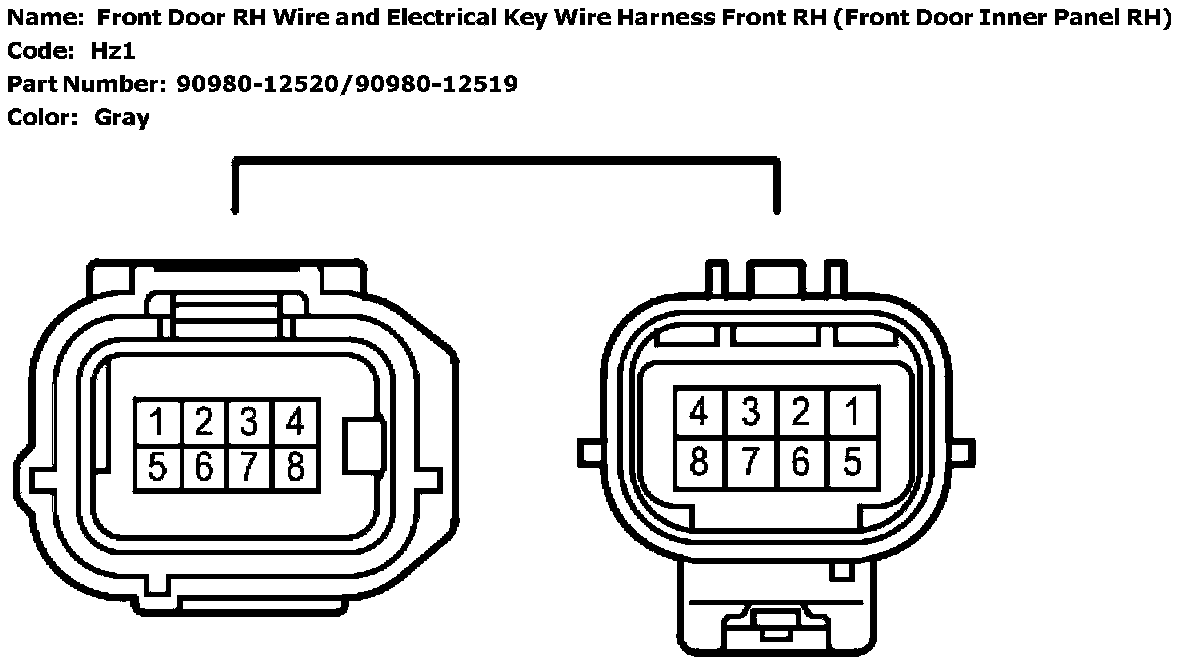

Gray:

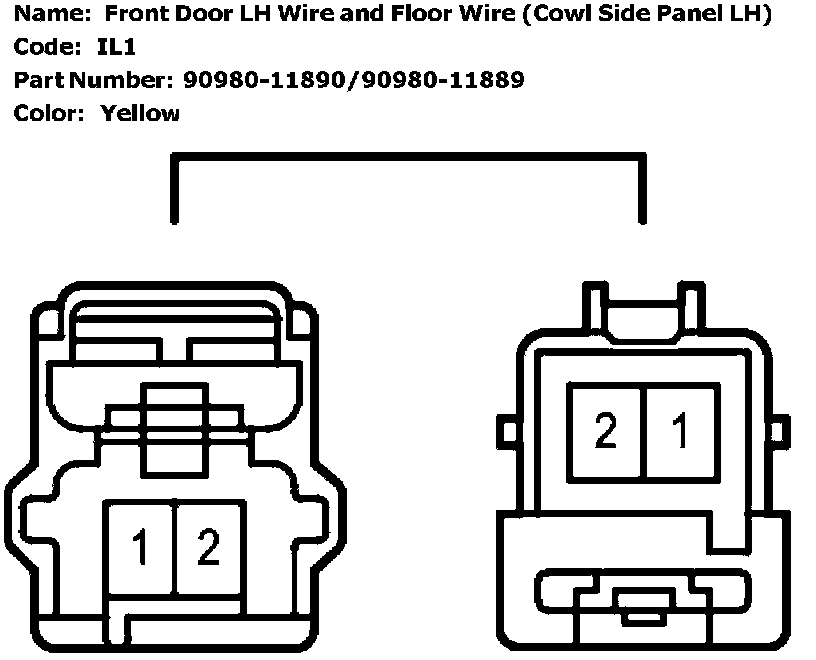

Yellow:
Gray:

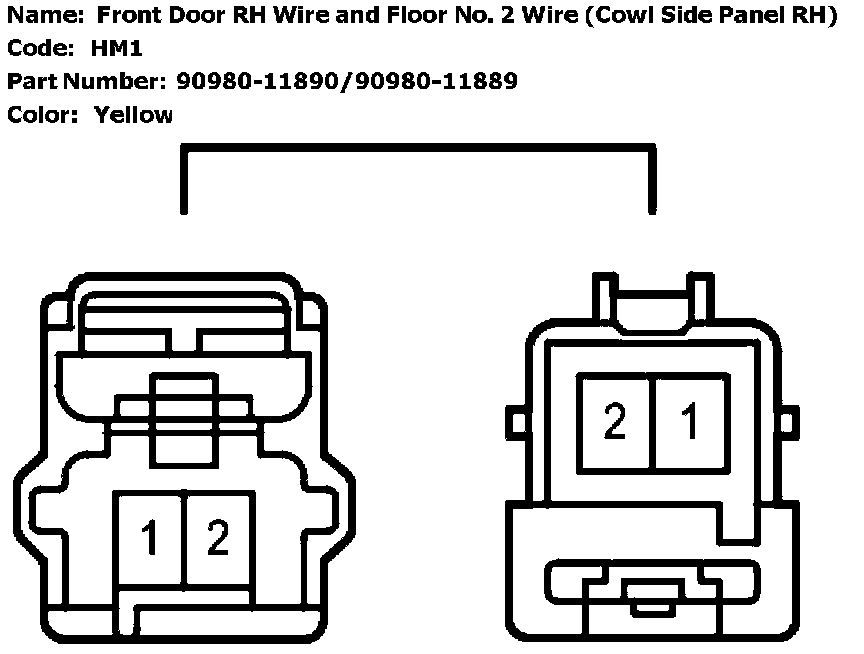

Yellow:
