Position of Parts In Seat [w/o Front Passenger's Power Seat]
Position of Parts In Seat [w/o Front Passenger's Power Seat]

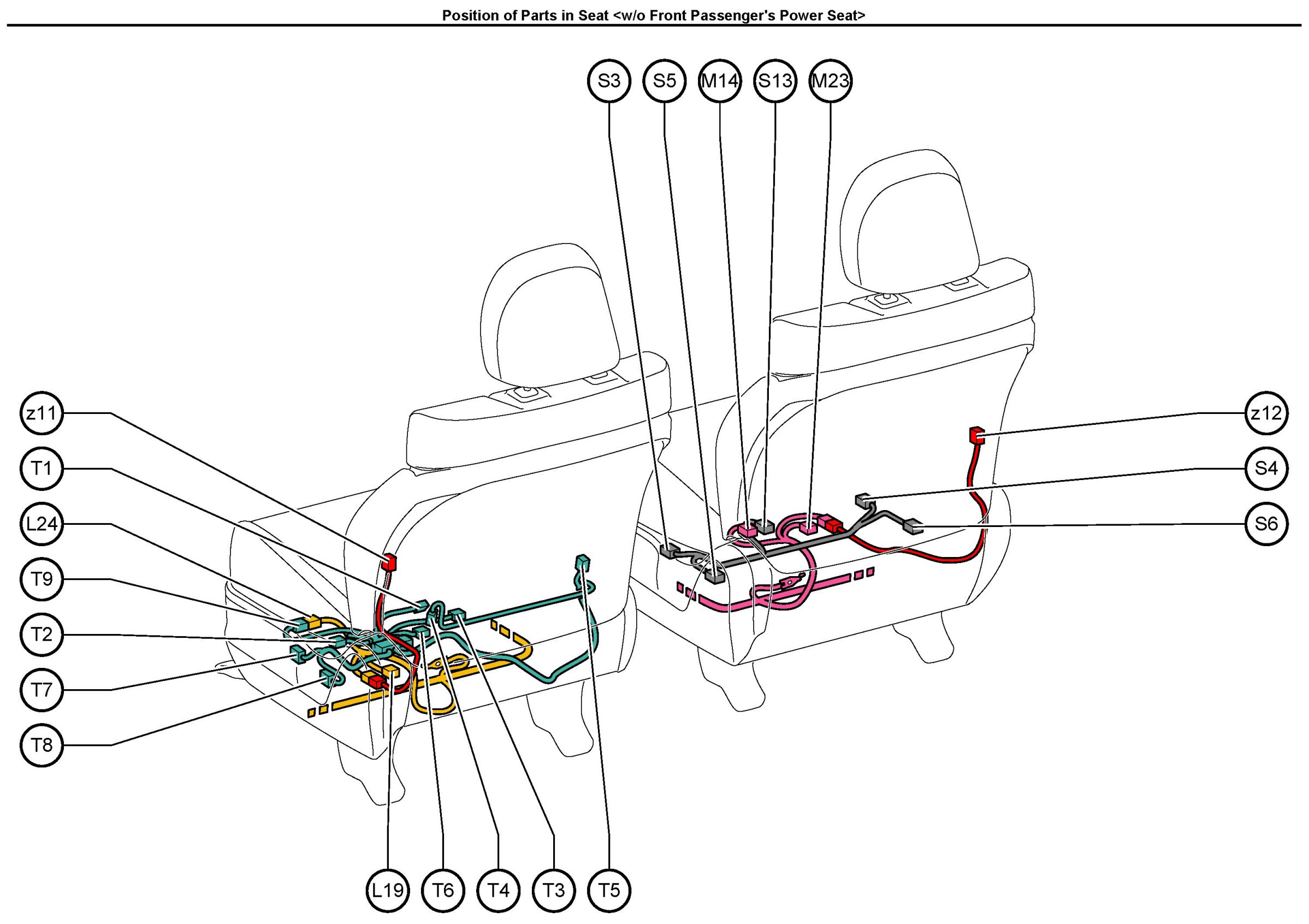

Position of Parts in Seat [w/o Front Passenger's Power Seat]:

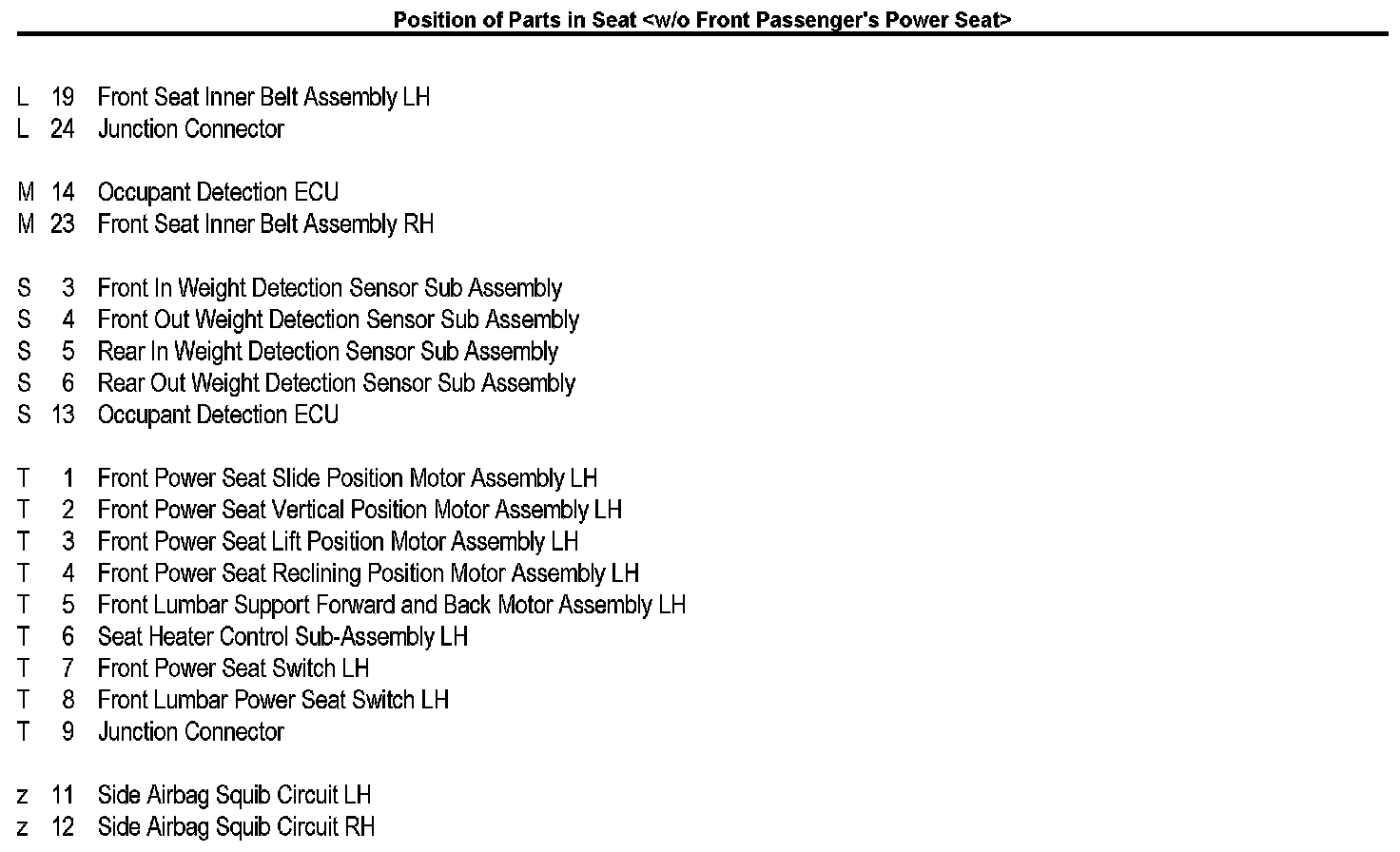

Legend:

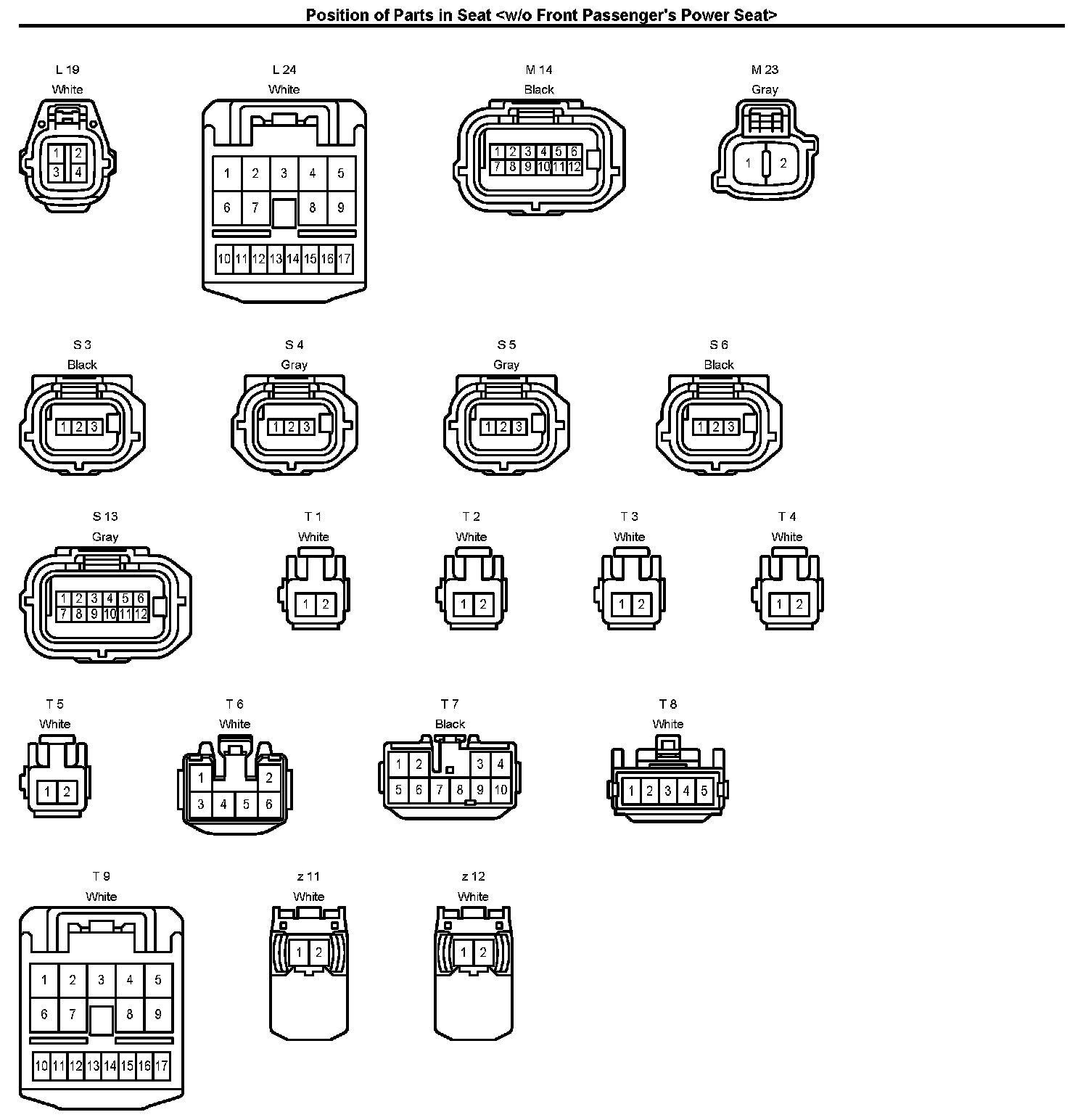

Connector Views:
