Installation

PARKING BRAKE: PARKING BRAKE CABLE: INSTALLATION

1. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY

(a) Install the No. 3 parking brake cable assembly with the bolt and 4 nuts.

Nut (A) - Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

Nut (B) - Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)

Bolt - Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)

(b) Install the No. 3 parking brake cable assembly to the backing plate with the 2 bolts.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

2. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY

HINT
Use the same procedure as for the No. 3 parking brake cable assembly.

3. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY WITH PARKING BRAKE SHOE LEVER

(a) Refer to the instructions for Installation of the No. 2 parking brake shoe assembly with parking brake shoe lever Reassembly.

4. INSTALL REAR WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

5. INSTALL PARKING BRAKE EQUALIZER

(a) Connect the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly to the parking brake equalizer to install it.

NOTICE:

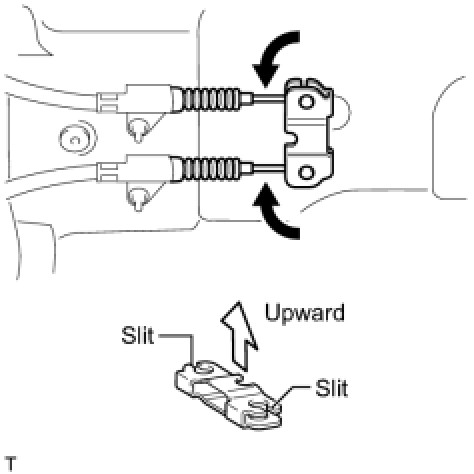

The slits of the parking brake equalizer face upward.

6. INSTALL NO. 4 PARKING BRAKE CABLE ASSEMBLY

(a) Install the No. 4 parking brake cable assembly with the 2 bolts.

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

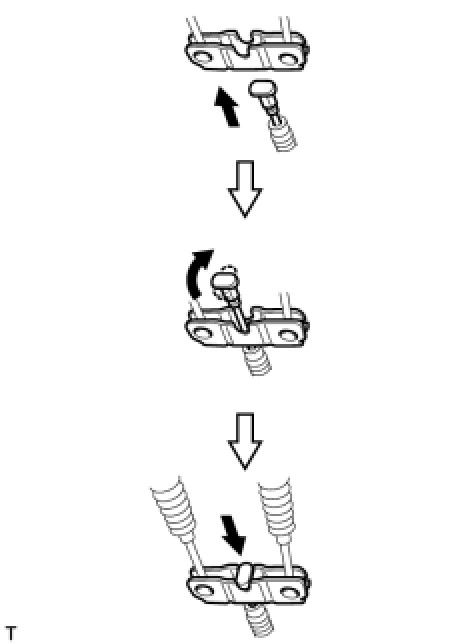

(b) Connect the No. 4 parking brake cable assembly to the parking brake equalizer as shown in the illustration.

7. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY

(a) Pass the No. 1 parking brake cable assembly through the parking brake pedal assembly.

(b) Install a new clip to the No. 1 parking brake cable assembly.

(d) Bend the parking brake pedal claw to hold the No. 1 parking brake cable assembly.

(e) Release the parking brake pedal.

8. INSTALL PARKING BRAKE PEDAL ASSEMBLY

HINT
Refer to the instructions for Installation of the parking brake pedal assembly Installation.

9. BED IN PARKING BRAKE SHOES TO DISCS Reassembly

10. ADJUST PARKING BRAKE SHOE CLEARANCE AND PARKING BRAKE PEDAL TRAVEL Adjustments

11. INSPECT BRAKE WARNING LIGHT Adjustments
