Front Seatback Heater

SEAT: FRONT SEATBACK HEATER: INSPECTION

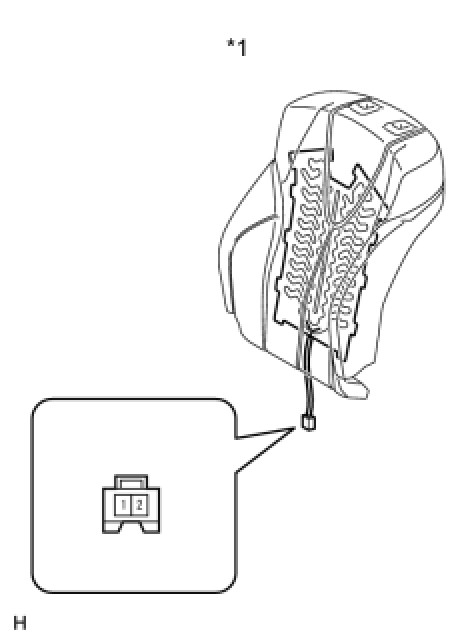

1. INSPECT FRONT SEATBACK HEATER LH

(a) Apply battery voltage and check the seatback heater.

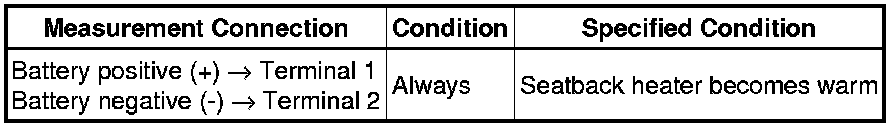

OK:

Text in Illustration:

(b) If the result is not as specified, replace the front seatback heater.

NOTICE:
Immediately after confirming that the seat heater is functioning normally, remove the battery leads. Failing to do so may cause the seat heater to overheat.
