Front Seat Cushion Heater

SEAT: FRONT SEAT CUSHION HEATER: INSPECTION

1. INSPECT FRONT SEAT CUSHION HEATER LH

(a) Check the seat cushion heater.

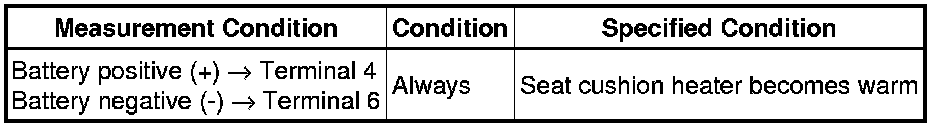

(1) Apply battery voltage and check the seat cushion heater.

OK:

Text in Illustration:

(2) If the result is not as specified, replace the seat cushion heater.

NOTICE:
Immediately after confirming that the seat heater is functioning normally, remove the battery leads. Failing to do so may cause the seat heater to overheat.

(b) Check the thermostat.

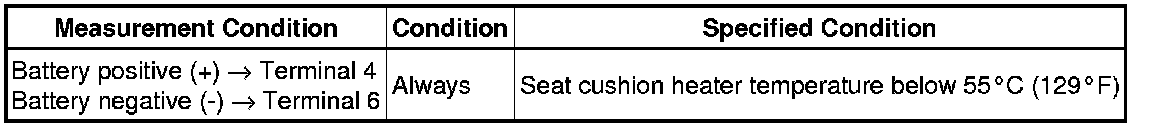

(1) Apply battery voltage and check the seat cushion heater.

OK:





(2) If the result is not as specified, replace the seat cushion heater.

NOTICE:
Immediately after confirming that the seat heater is functioning normally, remove the battery leads. Failing to do so may cause the seat heater to overheat.
