Removal

SEAT: FRONT SEAT CUSHION HEATER: REMOVAL

1. REMOVE FRONT SEAT HEADREST ASSEMBLY Removal

2. REMOVE FRONT SEAT REAR OUTER TRACK COVER Removal

3. REMOVE FRONT SEAT REAR INNER TRACK COVER Removal

4. REMOVE FRONT SEAT ASSEMBLY Removal

5. REMOVE RECLINING POWER SEAT SWITCH KNOB Disassembly

6. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB Disassembly

7. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY Disassembly

8. REMOVE FRONT SEAT INNER BELT ASSEMBLY Removal

9. REMOVE FRONT SEAT CUSHION INNER SHIELD Disassembly

10. REMOVE POWER SEAT SWITCH Disassembly

11. REMOVE FRONT SEAT CUSHION COVER WITH PAD Disassembly

12. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

(a) Remove the 18 hog rings and the separate type front seat cushion cover.

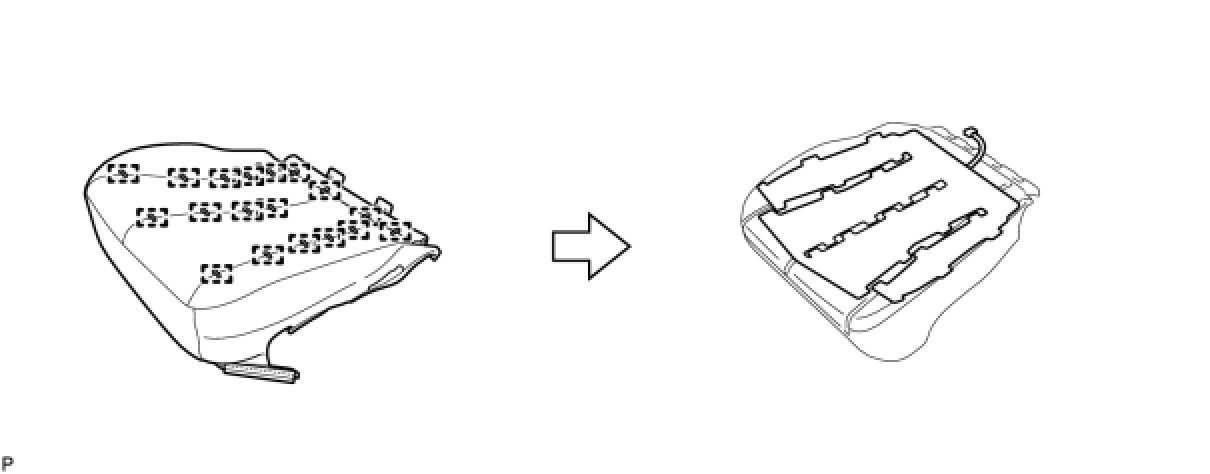

(b) Cut off the 25 tack pins that fasten the seat heater, and then remove the separate type front seat cushion heater assembly from the separate type front seat cushion cover.
