Reassembly

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF HOUSING: REASSEMBLY

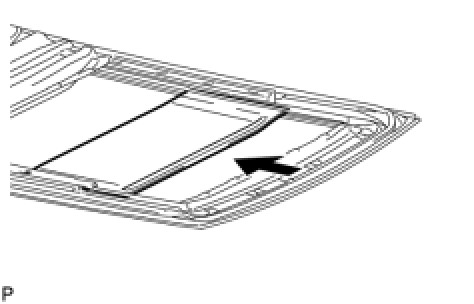

1. INSTALL NO. 1 SUNSHADE TRIM SUB-ASSEMBLY

(a) Slide and install the No. 1 sunshade trim sub-assembly.

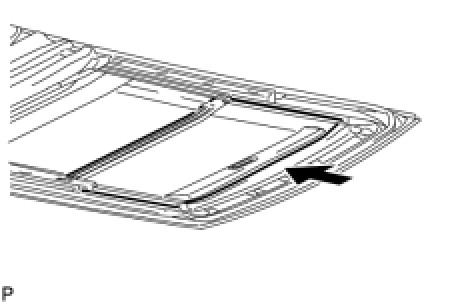

2. INSTALL NO. 2 SUNSHADE TRIM SUB-ASSEMBLY

(a) Slide and install the No. 2 sunshade trim sub-assembly.





3. INSTALL NO. 3 SUNSHADE TRIM SUB-ASSEMBLY

(a) Slide and install the No. 3 sunshade trim sub-assembly.

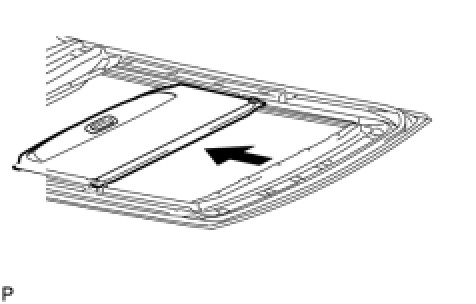

4. INSTALL NO. 4 SUNSHADE TRIM SUB-ASSEMBLY

(a) Slide and install the No. 4 sunshade trim sub-assembly.

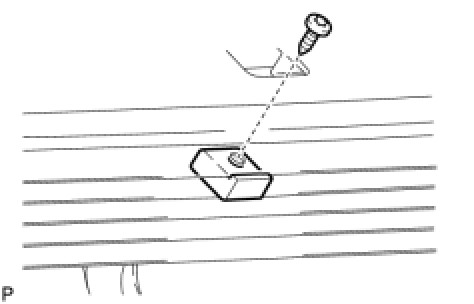

(b) Install the front sliding roof sunshade stopper LH with the screw.





HINT
Use the same procedure for the RH side and the LH side.

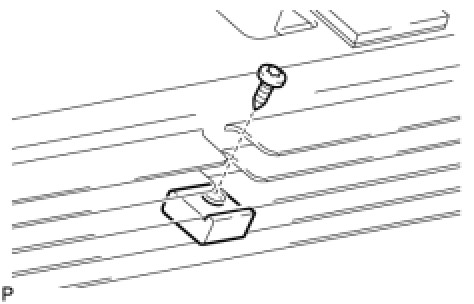

(c) Install the center sliding roof sunshade stopper LH with the screw.





HINT
Use the same procedure for the RH side and the LH side.

(d) Install the rear sliding roof sunshade stopper LH with the screw.





HINT
Use the same procedure for the RH side and the LH side.

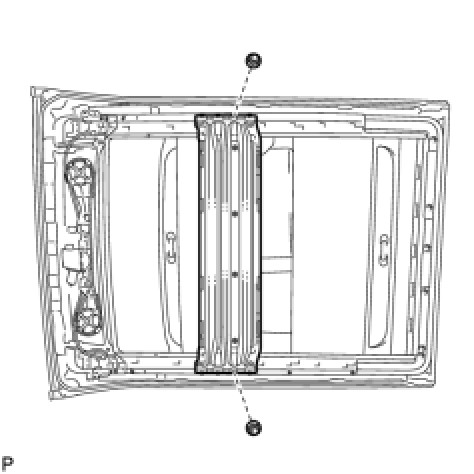

5. INSTALL SLIDING ROOF HOUSING CENTER FRAME

(a) Install the sliding roof housing center frame with the 2 nuts.





Torque : 7.0 Nm (71 kgf-cm, 62 in-lbf)
