Installation

MIRROR (EXT): OUTER REAR VIEW MIRROR GLASS: INSTALLATION

1. INSTALL OUTER MIRROR

(a) w/ Mirror Heater:

(1) Connect each connector.

(b) Engage the 2 claws on the lower part of the outer mirror to the outer rear view mirror as shown in the illustration.

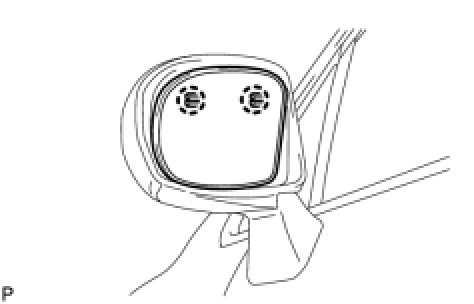

(c) Engage the 2 claws on the upper part of the outer mirror to the outer rear view mirror.
