Installation

DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSTALLATION

1. INSTALL WIRELESS DOOR LOCK BUZZER

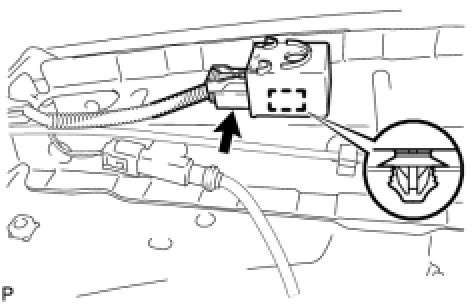

(a) Engage the clamp and install the wireless door lock buzzer.





(b) Connect the connector.

2. INSTALL FRONT FENDER LINER Installation

3. INSTALL FRONT FENDER MOULDING Installation

4. INSTALL FRONT WHEEL Installation
