Disassembly

INTERIOR PANELS / TRIM: ROOF HEADLINING: DISASSEMBLY

1. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY (w/o Sliding Roof) Removal

2. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY (w/ Sliding Roof) Removal

3. REMOVE VANITY LIGHT ASSEMBLY (w/ Vanity Light)

(a) Remove the vanity light assembly Removal.

HINT
Use the same procedure for the RH side and the LH side.

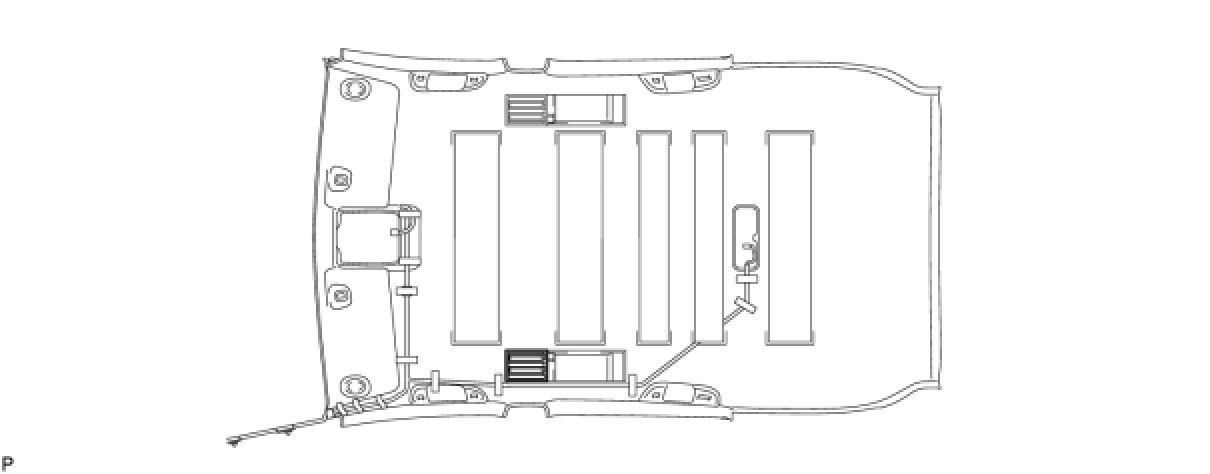

4. REMOVE FRONT SIDE RAIL SPACER LH (w/o Sliding Roof)

(a) Remove the front side rail spacer LH.





5. REMOVE FRONT SIDE RAIL SPACER RH (w/o Sliding Roof)

HINT
Use the same procedure for the RH side and the LH side.

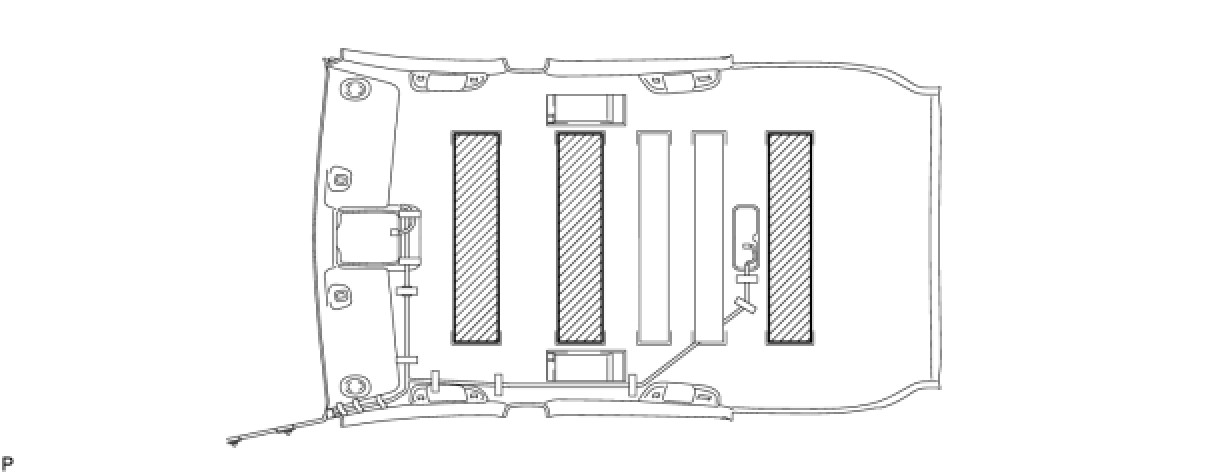

6. REMOVE NO. 3 ROOF SILENCER PAD (w/o Sliding Roof)

(a) w/o Rear Seat Entertainment System:

(1) Remove the 3 No. 3 roof silencer pads.





(b) w/ Rear Seat Entertainment System:

(1) Remove the 2 No. 3 roof silencer pads.





7. REMOVE NO. 2 ROOF SILENCER PAD (w/o Sliding Roof)

(a) Remove the 2 No. 2 roof silencer pads.

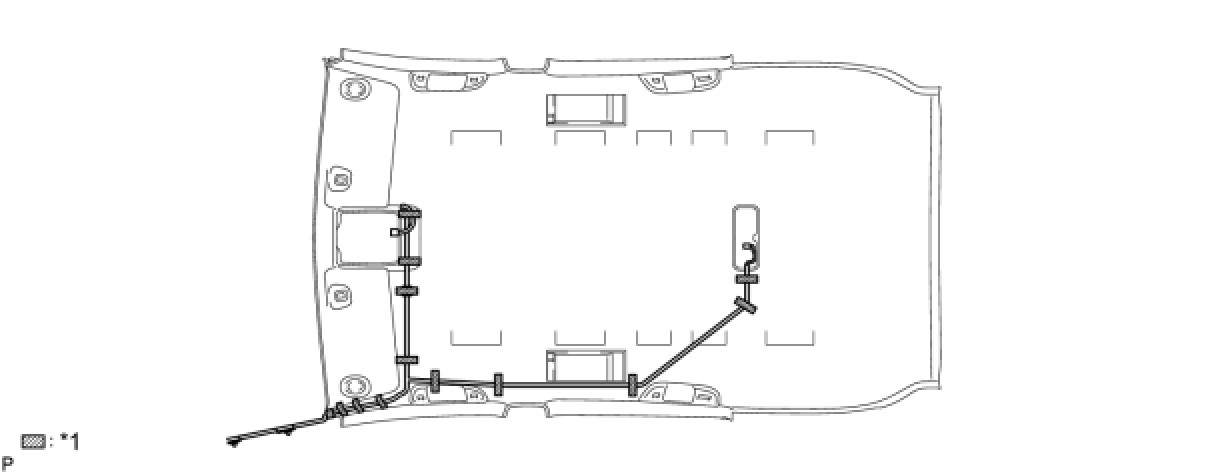

8. REMOVE NO. 2 ROOF WIRE (w/ Rear Seat Entertainment System)

(a) Remove the adhesive tape.

(b) Remove the No. 2 roof wire.

Text in Illustration:

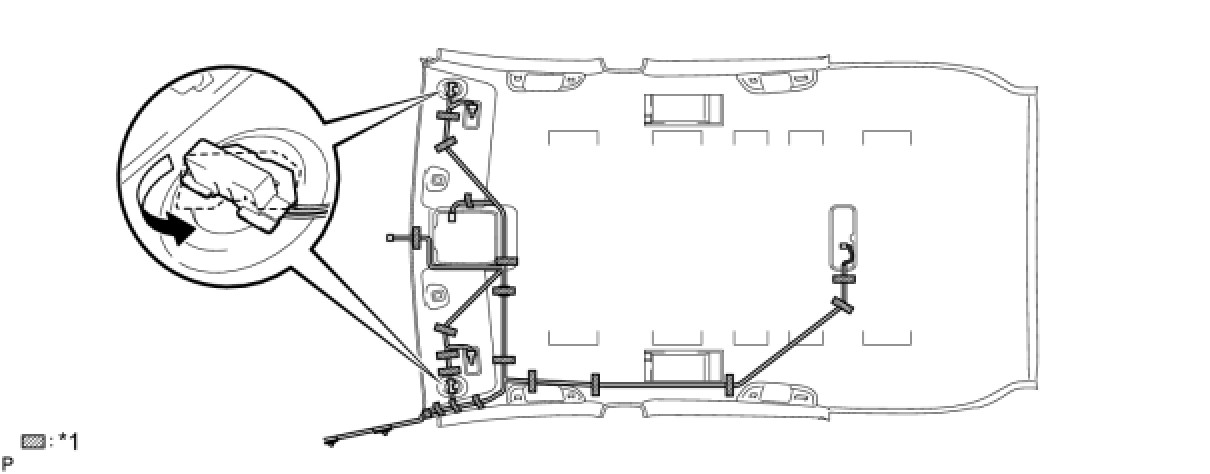

9. REMOVE NO. 1 ROOF WIRE (w/o Sliding Roof)

(a) w/o Vanity Light:

(1) Remove the adhesive tape.

(2) Remove the No. 1 roof wire.

Text in Illustration:

(b) w/ Vanity Light:

(1) Remove the adhesive tape.

(2) Turn the visor connectors counterclockwise approximately 90° and separate the connectors.

(3) Remove the No. 1 roof wire.

Text in Illustration:

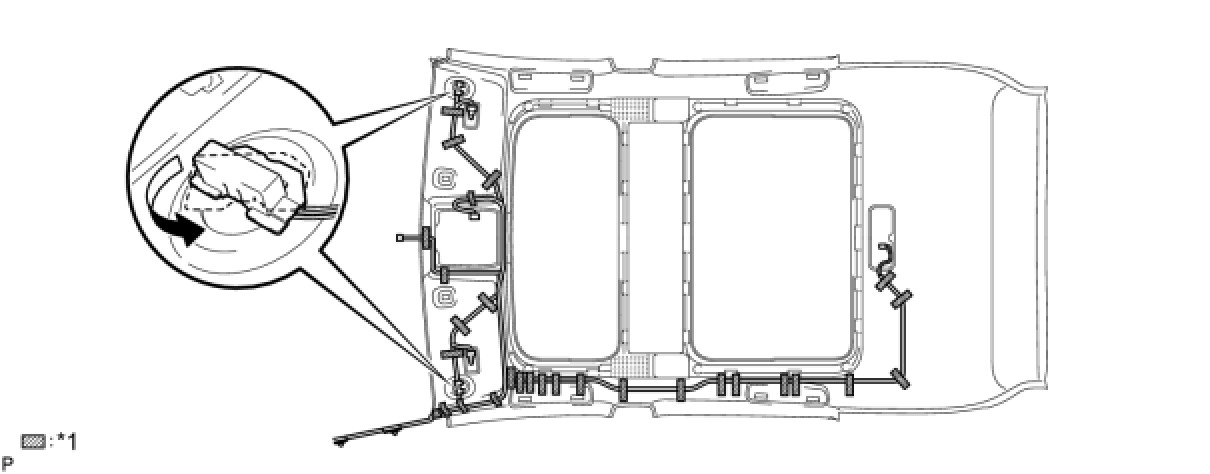

10. REMOVE NO. 1 ROOF WIRE (w/ Sliding Roof)

(a) Remove the adhesive tape.

(b) Turn the visor connectors counterclockwise approximately 90° and separate the connectors.

(c) Remove the No. 1 roof wire.

Text in Illustration:

11. REMOVE NO. 14 ROOF SILENCER PAD

(a) Remove the No. 14 roof silencer pad.
