Removal

EXTERIOR PANELS / TRIM: NAME PLATE: REMOVAL

HINT
When installing new name plates and emblem, heat the vehicle body, name plates and emblem using a heat light.

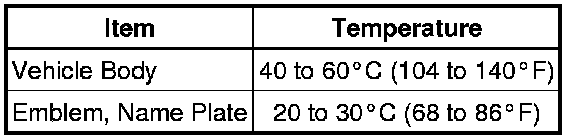

Heating Temperature:

NOTICE:
Do not heat the vehicle body, name plates or emblem excessively.

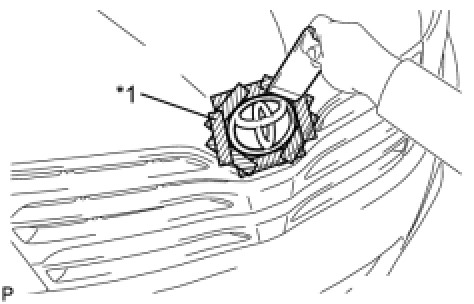

1. REMOVE HOOD EMBLEM

(a) Put protective tape around the hood emblem.

Text in Illustration:

(b) Using a moulding remover, peel off the double-sided tape to remove the hood emblem.

NOTICE:
* If reusing the emblem, take care not to damage the hood emblem.
* Be careful not to damage the vehicle body.

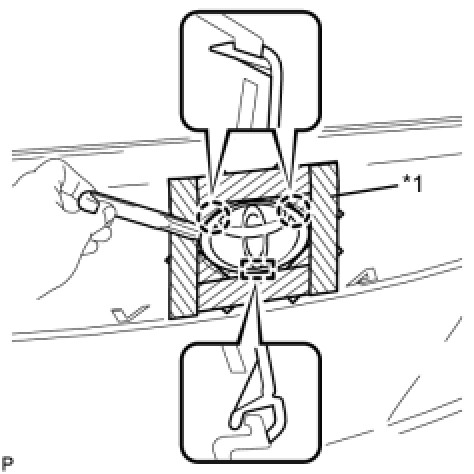

2. REMOVE NO. 1 BACK DOOR EMBLEM

(a) Put protective tape around the No. 1 back door emblem.

Text in Illustration:

(b) Using a moulding remover, disengage the 2 claws.

NOTICE:
* If reusing the emblem, take care not to damage the No. 1 back door emblem.
* Be careful not to damage the vehicle body.
(c) Disengage the guide and remove the No. 1 back door emblem.

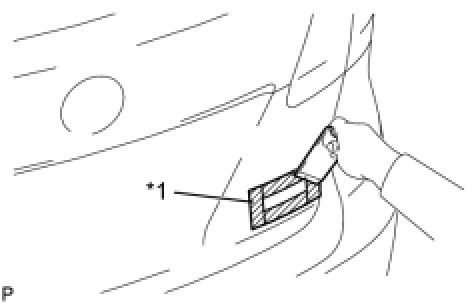

3. REMOVE NO. 2 BACK DOOR NAME PLATE

(a) Put protective tape around the No. 2 back door name plate.

Text in Illustration:

(b) Using a moulding remover, peel off the double-sided tape to remove the No. 2 back door name plate.

NOTICE:
* If reusing the name plate, take care not to damage the No. 2 back door name plate.
* Be careful not to damage the vehicle body.

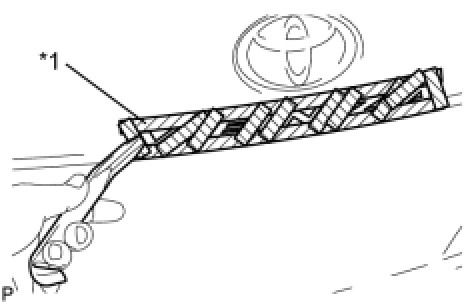

4. REMOVE NO. 3 BACK DOOR NAME PLATE

(a) Put protective tape around the No. 3 back door name plate.

Text in Illustration:

(b) Using a moulding remover, peel off the double-sided tape to remove the No. 3 back door name plate.

NOTICE:
* If reusing the name plate, take care not to damage the No. 3 back door name plate.
* Be careful not to damage the vehicle body.
