Removal

DOOR / HATCH: FUEL LID LOCK CONTROL CABLE ASSEMBLY: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system Service Precautions.

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE FRONT SEAT HEADREST ASSEMBLY LH (for Manual Seat) Removal

3. REMOVE FRONT SEAT HEADREST ASSEMBLY LH (for Power Seat) Removal

4. REMOVE FRONT SEAT REAR OUTER TRACK COVER LH (for Manual Seat) Removal

5. REMOVE FRONT SEAT REAR OUTER TRACK COVER LH (for Power Seat) Removal

6. REMOVE FRONT SEAT REAR INNER TRACK COVER LH (for Manual Seat) Removal

7. REMOVE FRONT SEAT REAR INNER TRACK COVER LH (for Power Seat) Removal

8. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat) Removal

9. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat) Removal

10. REMOVE FRONT DOOR SCUFF PLATE LH Removal

11. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal

12. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal

13. REMOVE REAR DOOR SCUFF PLATE LH Removal

14. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH Removal

15. REMOVE LAP BELT OUTER ANCHOR COVER LH Removal

16. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH Removal

17. REMOVE LOWER CENTER PILLAR GARNISH LH Removal

18. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover) Removal

19. REMOVE DECK BOARD ASSEMBLY Removal

20. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY Removal

21. REMOVE DECK SIDE TRIM BOX LH Removal

22. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY Removal

23. REMOVE DECK SIDE TRIM BOX RH Removal

24. REMOVE NO. 1 DECK BOARD Removal

25. REMOVE REAR SEAT SUB FLOOR PANEL ASSEMBLY Removal

26. REMOVE REAR FLOOR FINISH PLATE Removal

27. REMOVE REAR SEAT HEADREST ASSEMBLY LH Removal

28. REMOVE REAR SEAT INNER TRACK BRACKET COVER LH Removal

29. REMOVE REAR SEAT OUTER TRACK BRACKET COVER LH Removal

30. DISCONNECT REAR SEAT NO. 2 RECLINING CONTROL CABLE SUB-ASSEMBLY Removal

31. REMOVE REAR SEAT ASSEMBLY LH Removal

32. REMOVE RECLINING REMOTE CONTROL BEZEL LH Removal

33. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY LH Removal

34. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH Removal

35. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH Removal

36. DISCONNECT FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

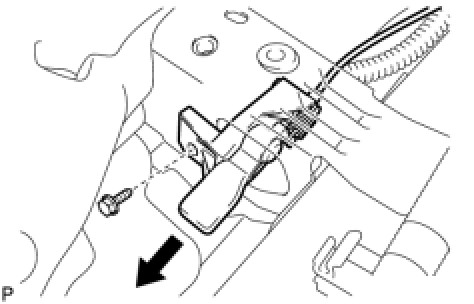

(a) Remove the bolt.





(b) Disconnect the fuel lid lock open lever sub-assembly as shown in the illustration.

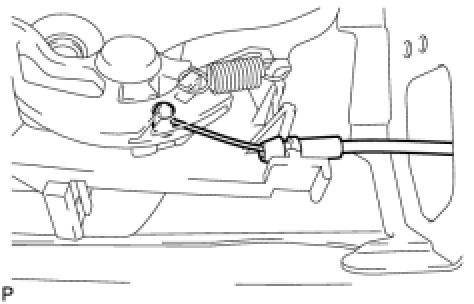

(c) Disconnect the fuel lid lock control cable sub-assembly.





37. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

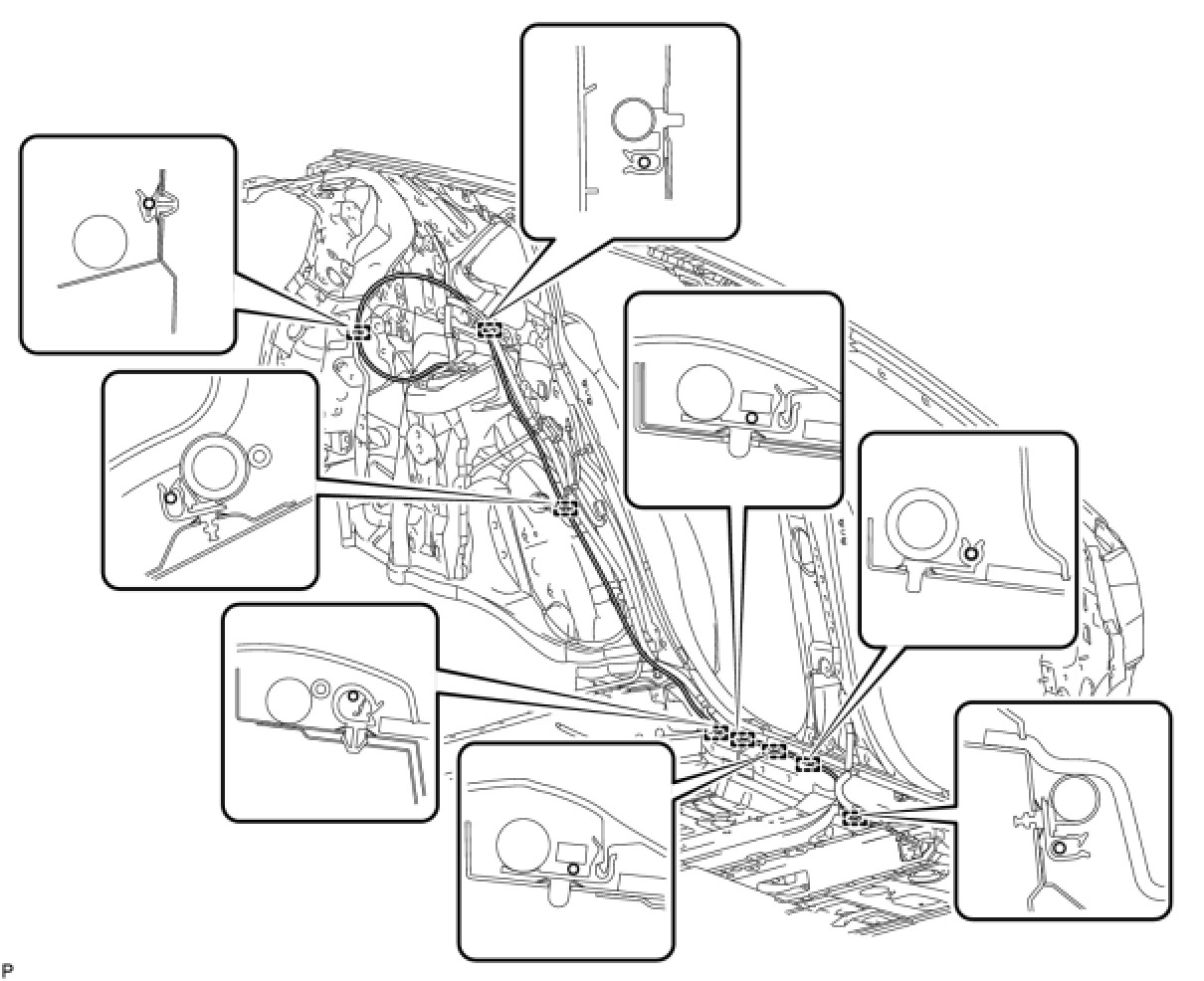

(a) Disengage the 2 claws and disconnect the fuel lid lock control cable sub-assembly.





(b) Disengage the 8 clamps and remove the fuel lid lock control cable sub-assembly.
