Steering Pad Switch Circuit

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: Steering Pad Switch Circuit
- Steering Pad Switch Circuit

DESCRIPTION

This circuit sends an operation signal from the steering pad switch to the radio receiver.

If there is an open in the circuit, the audio system cannot be operated using the steering pad switch.

If there is a short in the circuit, the same condition as when a switch is continuously depressed occurs.

Therefore, the radio receiver cannot be operated using the steering pad switch, and also the radio receiver itself cannot function.

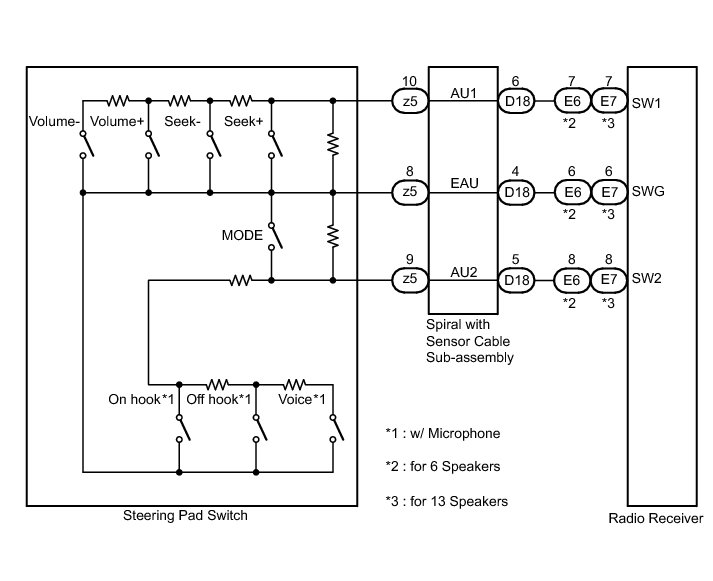

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System Service Precautions.

PROCEDURE

1. INSPECT RADIO RECEIVER

(a) Disconnect the radio receiver connector.





(b) Measure the resistance according to the value(s) in the table below.

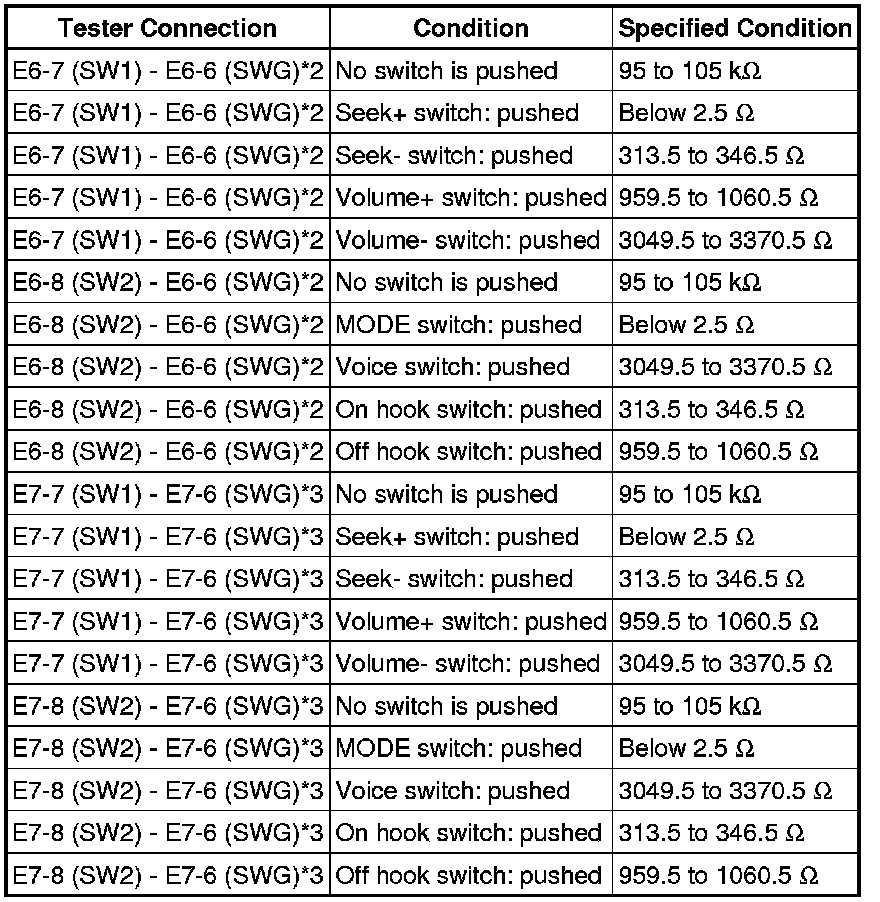

Standard Resistance:

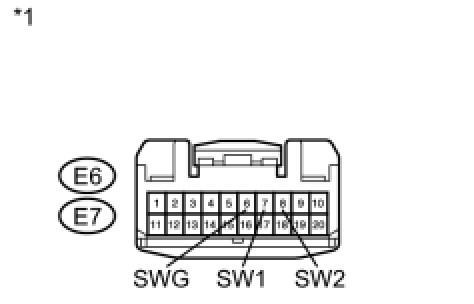

Text in Illustration

Text in Illustration:

*2: for 6 speakers

*3: for 13 Speakers

NG -- INSPECT STEERING PAD SWITCH

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

2. INSPECT STEERING PAD SWITCH

(a) Disconnect the steering pad switch connector.

(b) Measure the resistance according to the values in the table below.

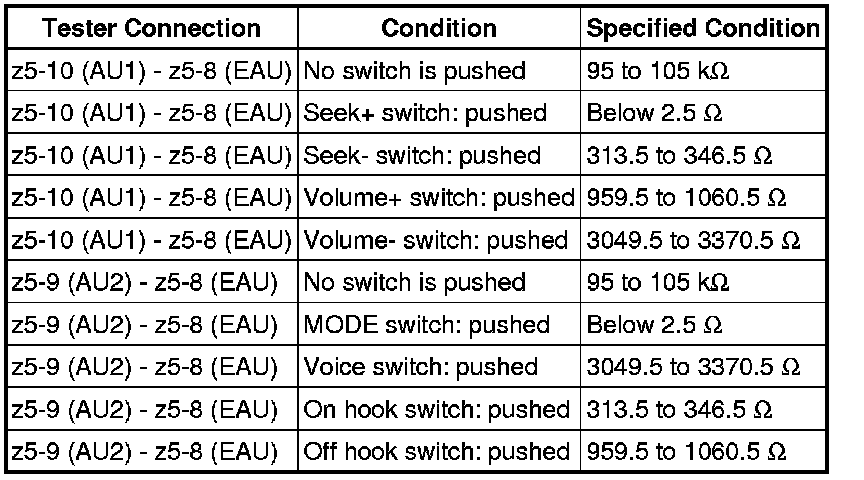

Standard Resistance:

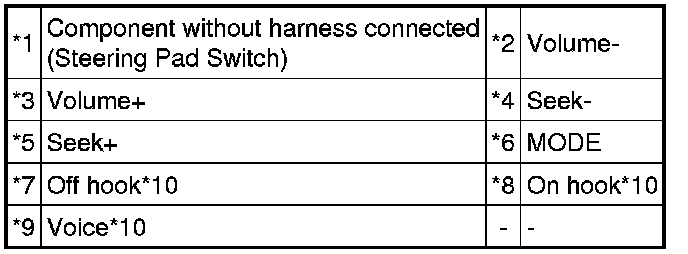

Text in Illustration

Text in Illustration:

*10: for 13 Speakers

NG -- REPLACE STEERING PAD SWITCH ASSEMBLY Removal
OK -- Continue to next step.

3. INSPECT SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY

(a) Disconnect the steering pad switch and spiral with sensor cable sub-assembly connectors.





(b) Measure the resistance according to the value(s) in the table below.

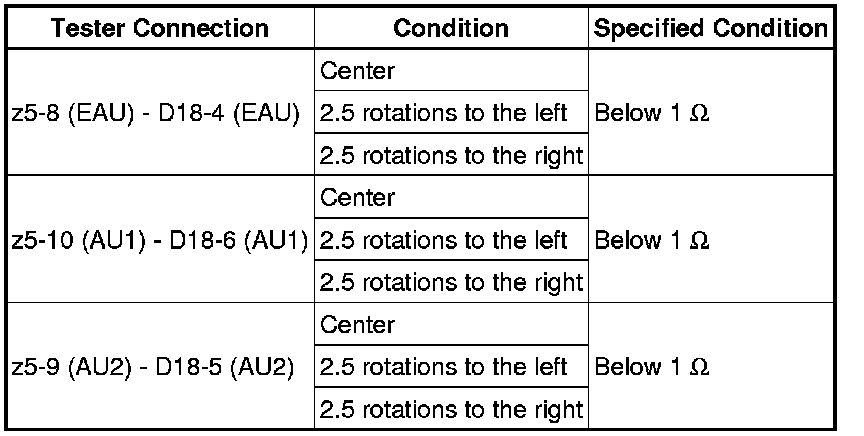

Standard Resistance:





NOTICE:
The spiral with sensor cable sub-assembly is an important part of the SRS airbag system. Incorrect removal or installation of the spiral with sensor cable sub-assembly may prevent the airbag from deploying. Be sure to read the pages shown in the brackets.

HINT
* Removal Removal
* Installation Installation

Text in Illustration

Text in Illustration:

NG -- REPLACE SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY Removal

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY - RADIO RECEIVER)
