Microphone Circuit between Microphone and Radio Receiver

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: Microphone Circuit between Microphone and Radio Receiver
- Microphone Circuit between Microphone and Radio Receiver

DESCRIPTION

This circuit sends the voice signal from the inner rear view mirror assembly (microphone) to the radio receiver.

It also supplies power source from the radio receiver to the inner rear view mirror assembly (microphone).

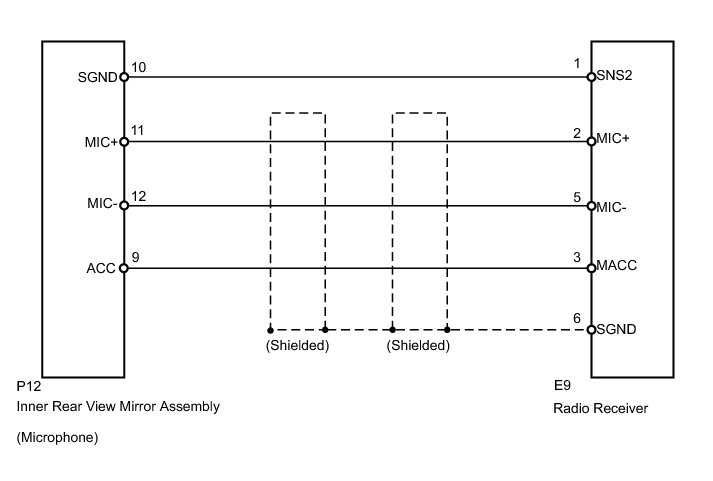

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT RADIO RECEIVER

(a) Disconnect the radio receiver connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration

Text in Illustration:

NG -- REPLACE RADIO RECEIVER Removal
OK -- Continue to next step.

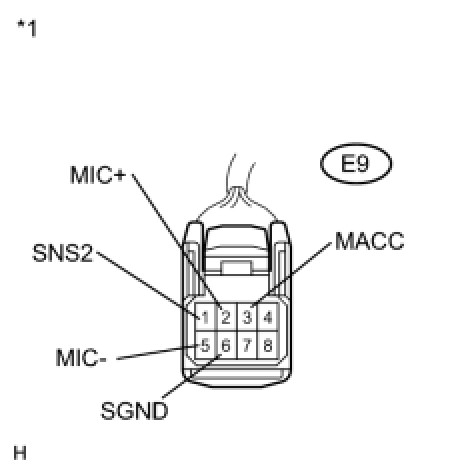

2. CHECK HARNESS AND CONNECTOR (INNER REAR VIEW MIRROR ASSEMBLY - RADIO RECEIVER)

(a) Disconnect the inner rear view mirror assembly and radio receiver connectors.

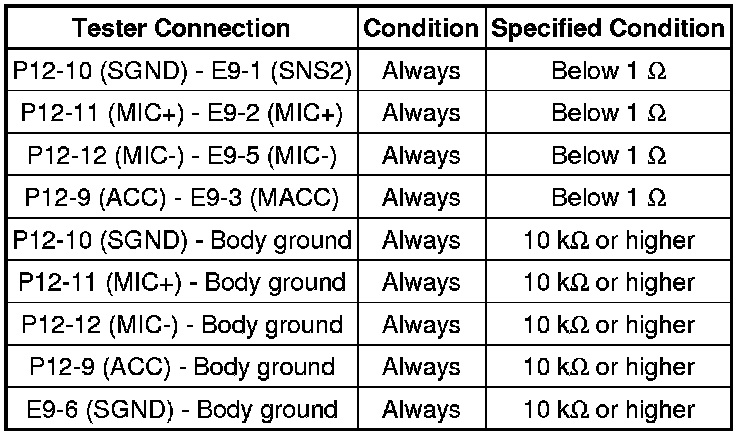

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration

Text in Illustration:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. INSPECT INNER REAR VIEW MIRROR ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration

Text in Illustration:

NG -- REPLACE INNER REAR VIEW MIRROR ASSEMBLY Removal

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
