Cellular Phone Voice Circuit between Radio Receiver and Stereo Component Amplifier

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: Cellular Phone Voice Circuit between Radio Receiver and Stereo Component Amplifier
- Cellular Phone Voice Circuit between Radio Receiver and Stereo Component Amplifier

SYSTEM DESCRIPTION

This circuit is used when an incoming cellular phone voice in the "Bluetooth" handsfree system is received.

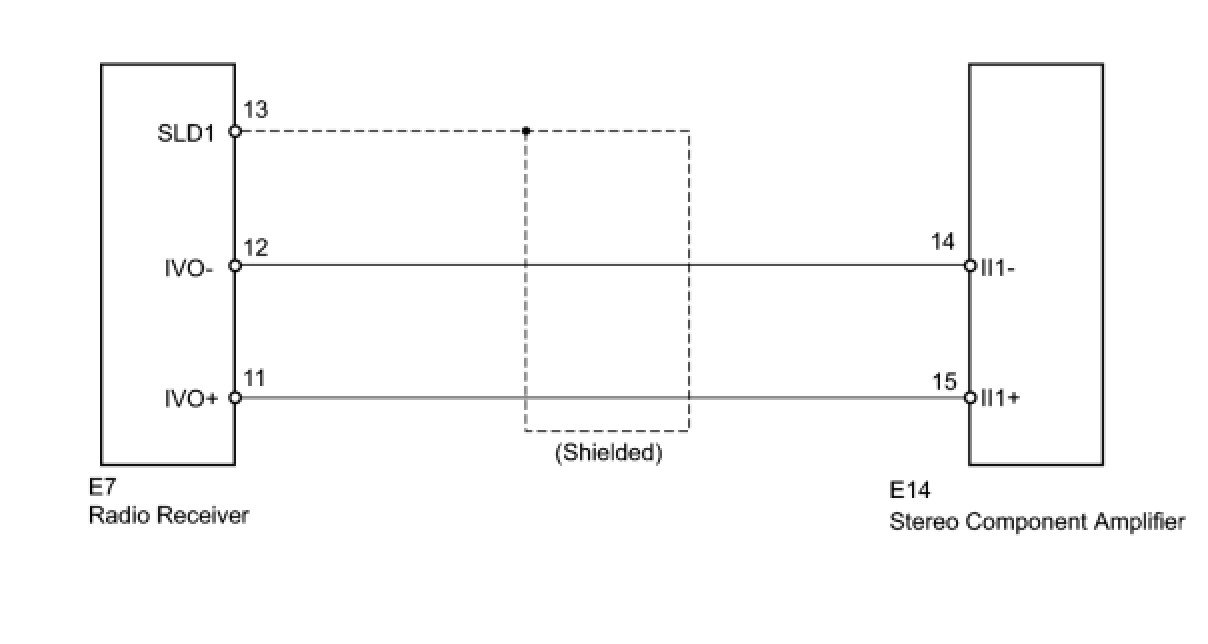

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)

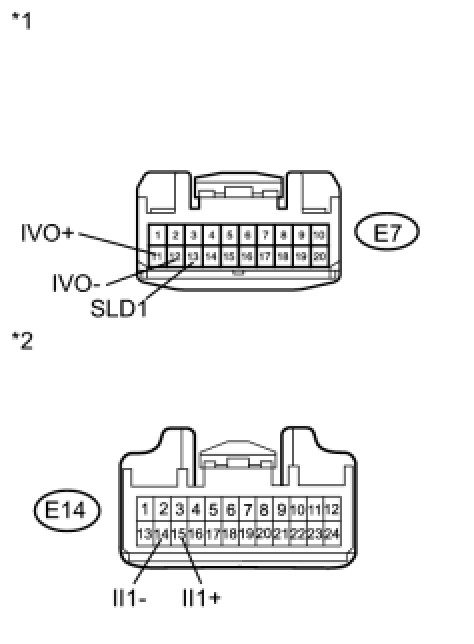

(a) Disconnect the radio receiver and stereo component amplifier connectors.





(b) Measure the resistance according to the value(s) in the table below.

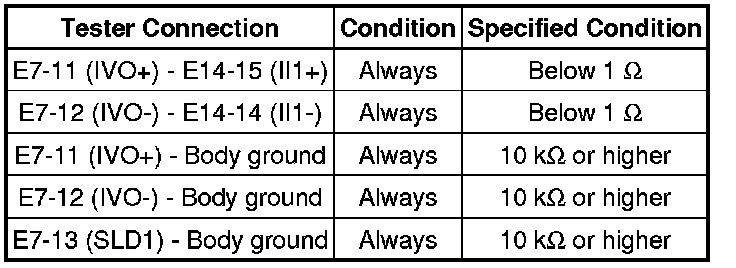

Standard Resistance:





Text in Illustration

Text in Illustration:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
