Removal

AUDIO / VIDEO: SATELLITE RADIO TUNER: REMOVAL

NOTICE:
After replacing the stereo component tuner assembly of vehicles subscribed to pay-type satellite radio broadcasts, registration of the XM radio ID is necessary.

1. REMOVE REAR DOOR SCUFF PLATE RH Removal

2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH Removal

3. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover) Removal

4. REMOVE DECK BOARD ASSEMBLY Removal

5. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY Removal

6. REMOVE DECK SIDE TRIM BOX LH Removal

7. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY Removal

8. REMOVE DECK SIDE TRIM BOX RH Removal

9. REMOVE NO. 1 DECK BOARD Removal

10. REMOVE REAR SEAT SUB FLOOR PANEL ASSEMBLY Removal

11. REMOVE REAR FLOOR FINISH PLATE Removal

12. REMOVE REAR SEAT HEADREST ASSEMBLY Removal

13. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY Removal

14. REMOVE REAR SEAT INNER TRACK BRACKET COVER RH Removal

15. REMOVE REAR SEAT OUTER TRACK BRACKET COVER RH Removal

16. DISCONNECT REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY Removal

17. REMOVE REAR SEAT ASSEMBLY RH Removal

18. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL RH Removal

19. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY RH Removal

20. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH Removal

21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

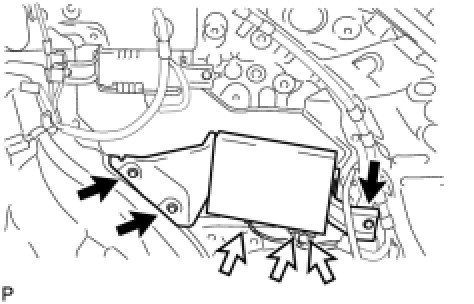

22. REMOVE SATELLITE RADIO TUNER ASSEMBLY

(a) Disconnect the 3 connectors.





(b) Remove the 3 bolts and satellite radio tuner assembly.
