Installation

AUDIO / VIDEO: TELEVISION DISPLAY: INSTALLATION

1. INSTALL TELEVISION DISPLAY ASSEMBLY

(a) Engage the 2 clamps and temporarily install the television display assembly.

Text in Illustration:

NOTICE:
* Be sure to place the television display assembly on the television bracket.
* Be careful not to drop the television display assembly.
(b) Install the television display assembly with the 4 bolts.

(c) Connect the connector.

2. INSTALL TELEVISION BASE

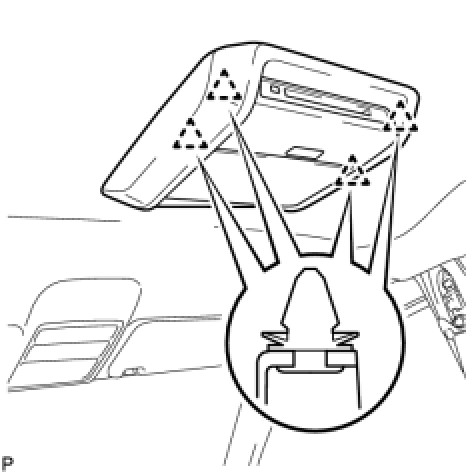

(a) Engage the 4 clips and install the television base.
