Removal

AUDIO / VIDEO: STEREO JACK ADAPTER ASSEMBLY: REMOVAL

1. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (w/o Seat Heater System) Removal

2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (w/ Seat Heater System) Removal

3. REMOVE NO. 2 CONSOLE BOX CARPET Removal

4. REMOVE CONSOLE BOX ASSEMBLY Removal

5. REMOVE STEREO JACK ADAPTER ASSEMBLY

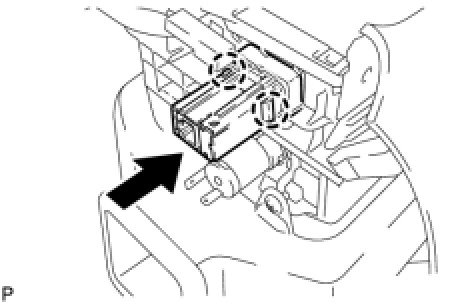

(a) Disengage the 2 claws and remove the stereo jack adapter assembly as shown in the illustration.





6. REMOVE REAR DOOR SCUFF PLATE RH (w/ Rear Seat Entertainment System) Removal

7. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (w/ Rear Seat Entertainment System) Removal

8. REMOVE TONNEAU COVER ASSEMBLY (w/ Rear Seat Entertainment System)

(a) w/ Tonneau Cover:

(1) Remove the tonneau cover assembly Removal.

9. REMOVE DECK BOARD ASSEMBLY (w/ Rear Seat Entertainment System) Removal

10. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY (w/ Rear Seat Entertainment System) Removal

11. REMOVE DECK SIDE TRIM BOX LH (w/ Rear Seat Entertainment System) Removal

12. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY (w/ Rear Seat Entertainment System) Removal

13. REMOVE DECK SIDE TRIM BOX RH (w/ Rear Seat Entertainment System) Removal

14. REMOVE NO. 1 DECK BOARD (w/ Rear Seat Entertainment System) Removal

15. REMOVE REAR SEAT SUB FLOOR PANEL ASSEMBLY (w/ Rear Seat Entertainment System) Removal

16. REMOVE REAR FLOOR FINISH PLATE (w/ Rear Seat Entertainment System) Removal

17. REMOVE REAR SEAT HEADREST ASSEMBLY (w/ Rear Seat Entertainment System) Removal

18. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (w/ Rear Seat Entertainment System) Removal

19. REMOVE REAR SEAT INNER TRACK BRACKET COVER RH (w/ Rear Seat Entertainment System) Removal

20. REMOVE REAR SEAT OUTER TRACK BRACKET COVER RH (w/ Rear Seat Entertainment System) Removal

21. DISCONNECT REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY (w/ Rear Seat Entertainment System) Removal

22. REMOVE REAR SEAT ASSEMBLY RH (w/ Rear Seat Entertainment System) Removal

23. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL RH (w/ Rear Seat Entertainment System) Removal

24. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY RH (w/ Rear Seat Entertainment System) Removal

25. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH (w/ Rear Seat Entertainment System) Removal

26. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/ Rear Seat Entertainment System) Removal

27. REMOVE SIDE TRIM COVER RH (w/ Rear Seat Entertainment System)

(a) Disengage the 4 claws and remove the side trim cover RH.





28. REMOVE VIDEO TERMINAL (w/ Rear Seat Entertainment System)

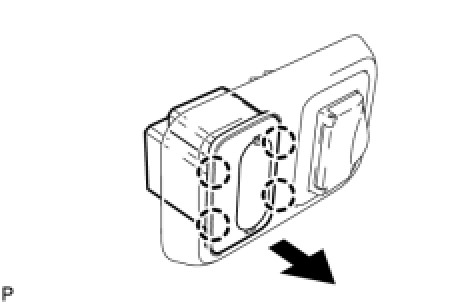

(a) Disengage the 4 claws and remove the video terminal as shown in the illustration.
