Installation

THEFT DETERRENT / KEYLESS ENTRY: SECURITY HORN ASSEMBLY: INSTALLATION

1. INSTALL SECURITY HORN ASSEMBLY

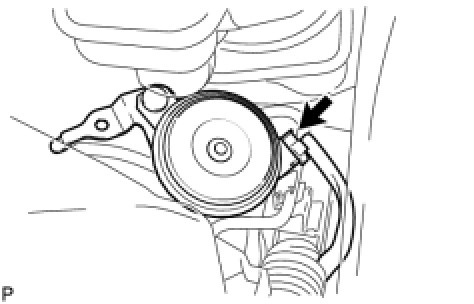

(a) Connect the connector.

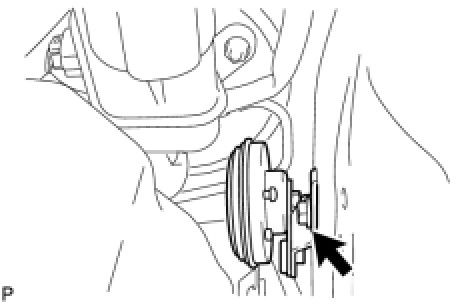

(b) Install the security horn assembly with the bolt.





Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
