Removal

AUDIO / VIDEO: RADIO ANTENNA: REMOVAL

1. REMOVE ROOF HEADLINING ASSEMBLY

HINT
Refer to the procedure up to Remove Roof Headlining Assembly Removal.

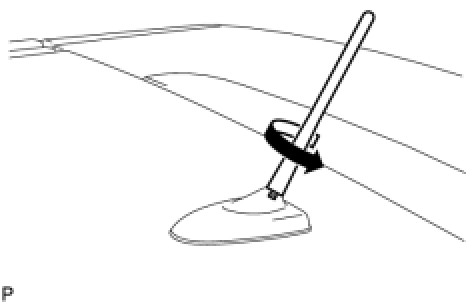

2. REMOVE ROOF ANTENNA POLE SUB-ASSEMBLY

(a) Remove the roof antenna pole sub-assembly by turning it as shown in the illustration.





3. REMOVE RADIO ANTENNA ASSEMBLY

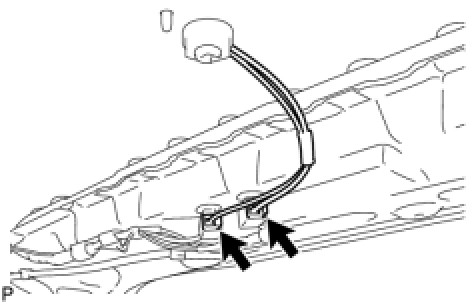

(a) w/o Satellite Radio:

(1) Disconnect the 2 connectors.





(b) w/ Satellite Radio:

(1) Disconnect the 3 connectors.

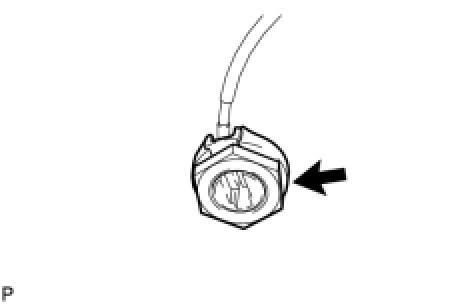

(c) Remove the antenna nut.





(d) Disengage the 2 claws and remove the radio antenna assembly.
