Installation

AUDIO / VIDEO: RADIO ANTENNA: INSTALLATION

1. INSTALL RADIO ANTENNA ASSEMBLY

(a) Engage the 2 claws to install the radio antenna assembly.





(b) Place the antenna cord in the cutout of the antenna nut.





(c) Install the radio antenna assembly with the antenna nut.

Torque : 4.5 Nm (45 kgf-cm, 40 in-lbf)

(d) w/o Satellite Radio:

(1) Connect the 2 connectors.





(e) w/ Satellite Radio:

(1) Connect the 3 connectors.





2. INSTALL ROOF ANTENNA POLE SUB-ASSEMBLY

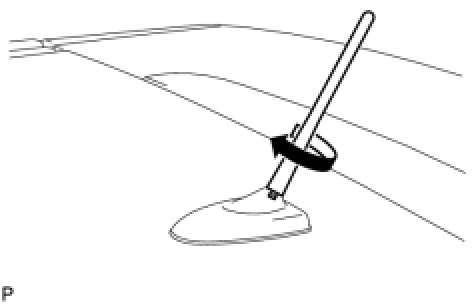

(a) Install the roof antenna pole sub-assembly by turning it as shown in the illustration.





3. INSTALL ROOF HEADLINING ASSEMBLY

HINT
Refer to the procedure from Install Roof Headlining Assembly Installation.
