Rear Seat Entertainment System

AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: B15A5: Rear Seat Entertainment System Malfunction
B15A5 - Rear Seat Entertainment System Malfunction

DESCRIPTION

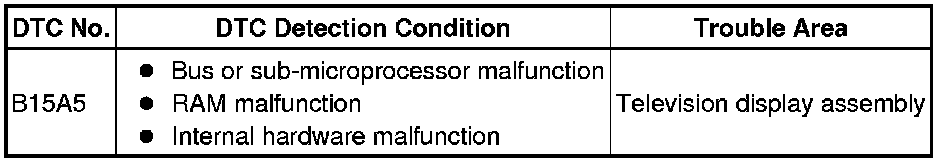

* This DTC is stored when a malfunction occurs in the television display assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CLEAR DTC

(a) Check for DTC Reading and Clearing Diagnostic Trouble Codes.

(b) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

2. RECHECK FOR DTC

(a) Recheck for the DTC Reading and Clearing Diagnostic Trouble Codes.

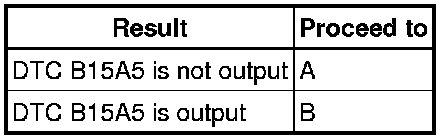

Result:





B -- REPLACE TELEVISION DISPLAY ASSEMBLY Removal

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
