Home >> Toyota >> 2010 >> Matrix AWD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Exhaust System >> Exhaust Pipe >> Service and Repair >> Components >> Exhaust Pipe (For 2WD)

Exhaust Pipe (For 2WD)

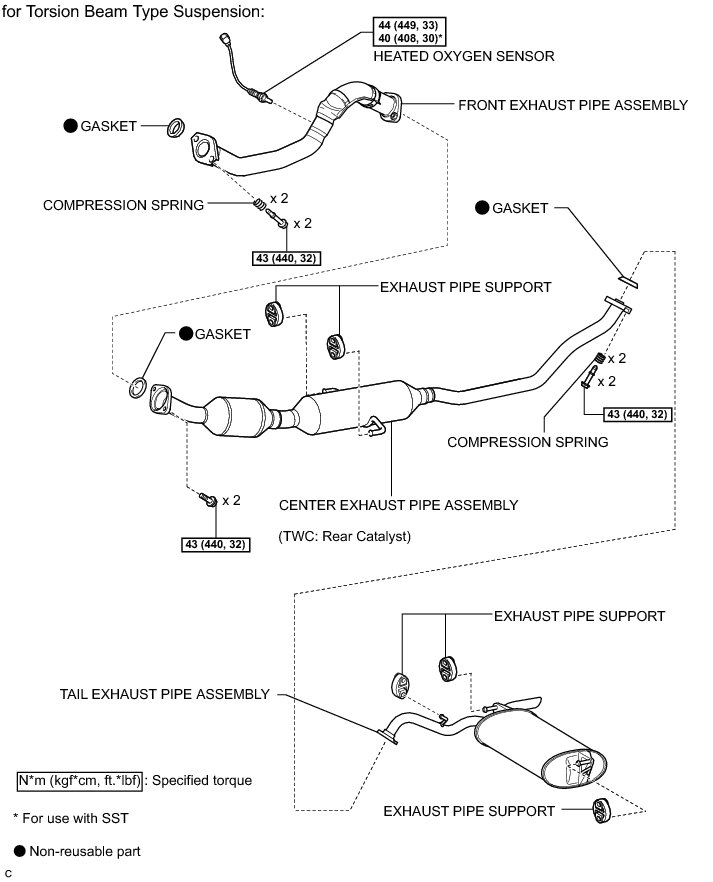

2AZ-FE INTAKE / EXHAUST: EXHAUST PIPE (for 2WD): COMPONENTS
