Fuse Block

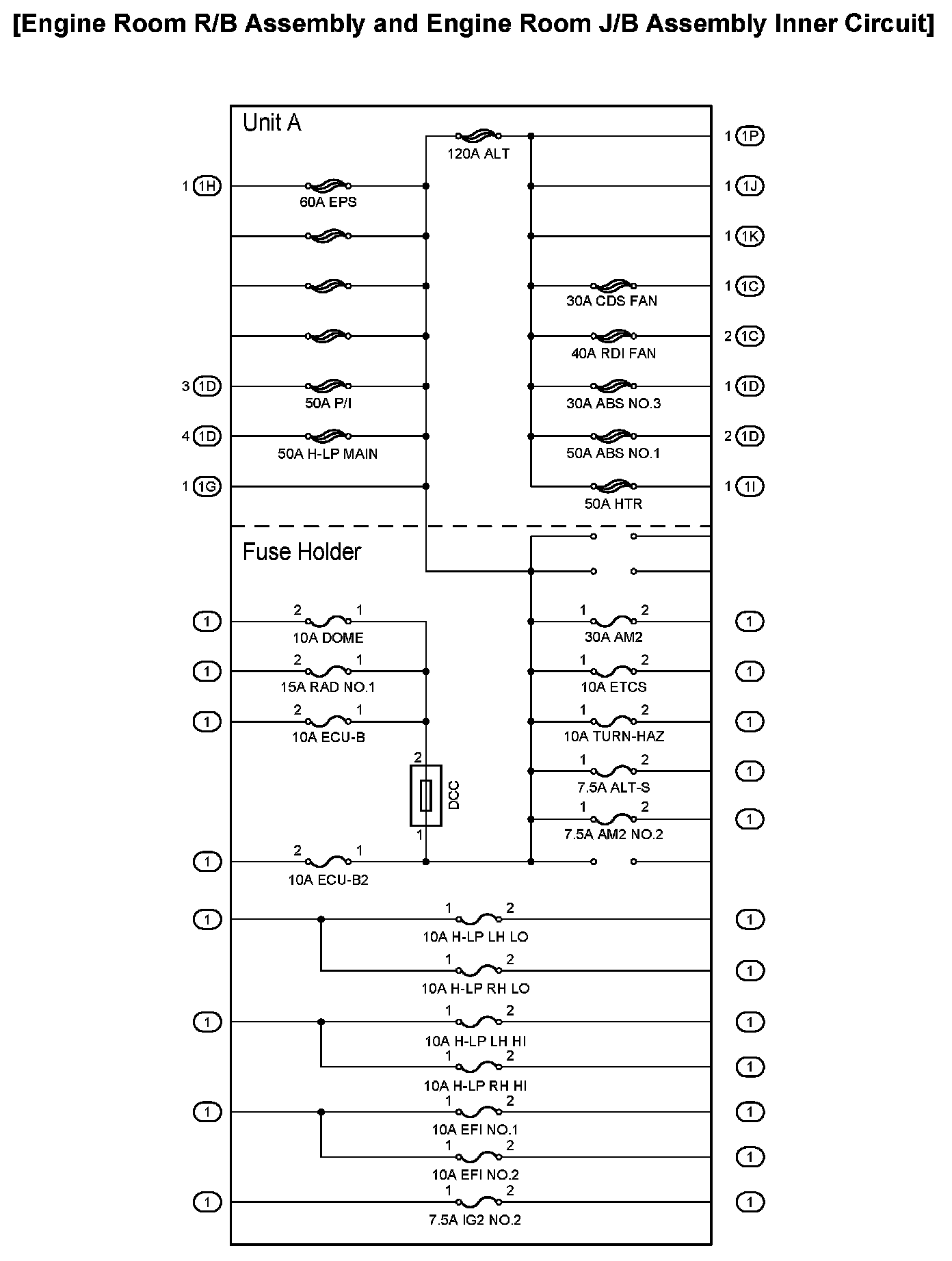

Engine Room R/B Assembly And Engine Room J/B Assembly Inner Circuit:

Engine Room R/B Assembly And Engine Room J/B Assembly Inner Circuit:

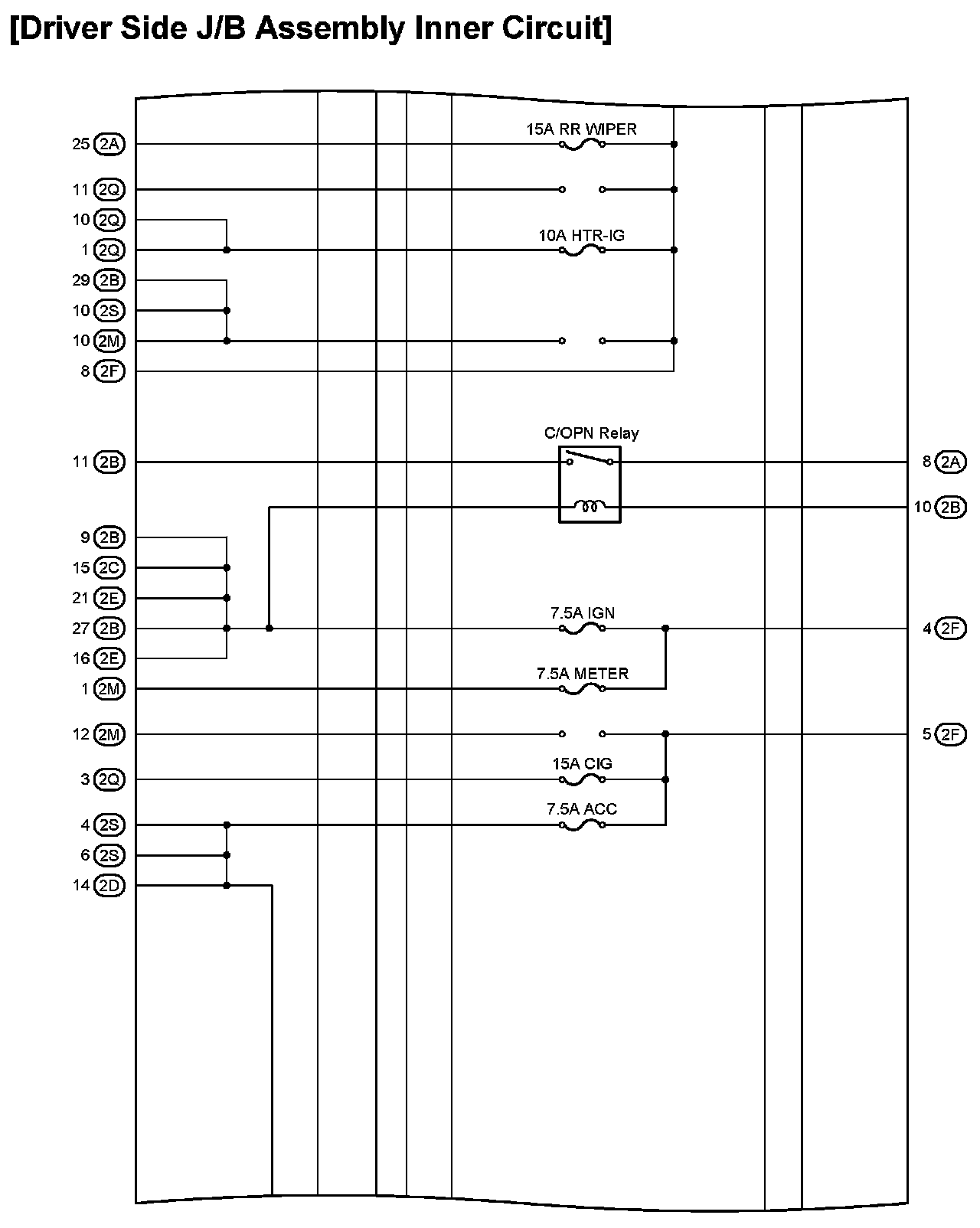

Driver Side J/B Assembly Inner Circuit:

Driver Side J/B Assembly Inner Circuit:

Driver Side J/B Assembly Inner Circuit:

Driver Side J/B Assembly Inner Circuit:

Junction Connector (CAN) Inner Circuit:
