Removal

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION ANTENNA CORD: REMOVAL

1. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY

HINT
Refer to the procedures up to Remove Upper Instrument Panel Sub-assembly Removal.

2. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET Removal

3. REMOVE NAVIGATION ANTENNA CORD SUB-ASSEMBLY

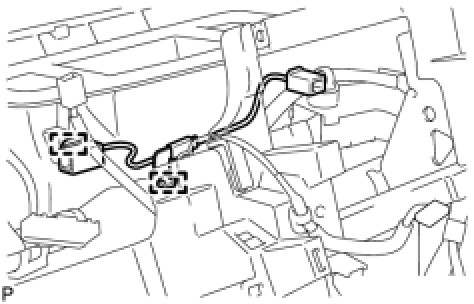

(a) Disengage the 2 clamps and remove the navigation antenna cord sub-assembly.
