Active Torque Control 4WD System
Active Torque Control 4WD System

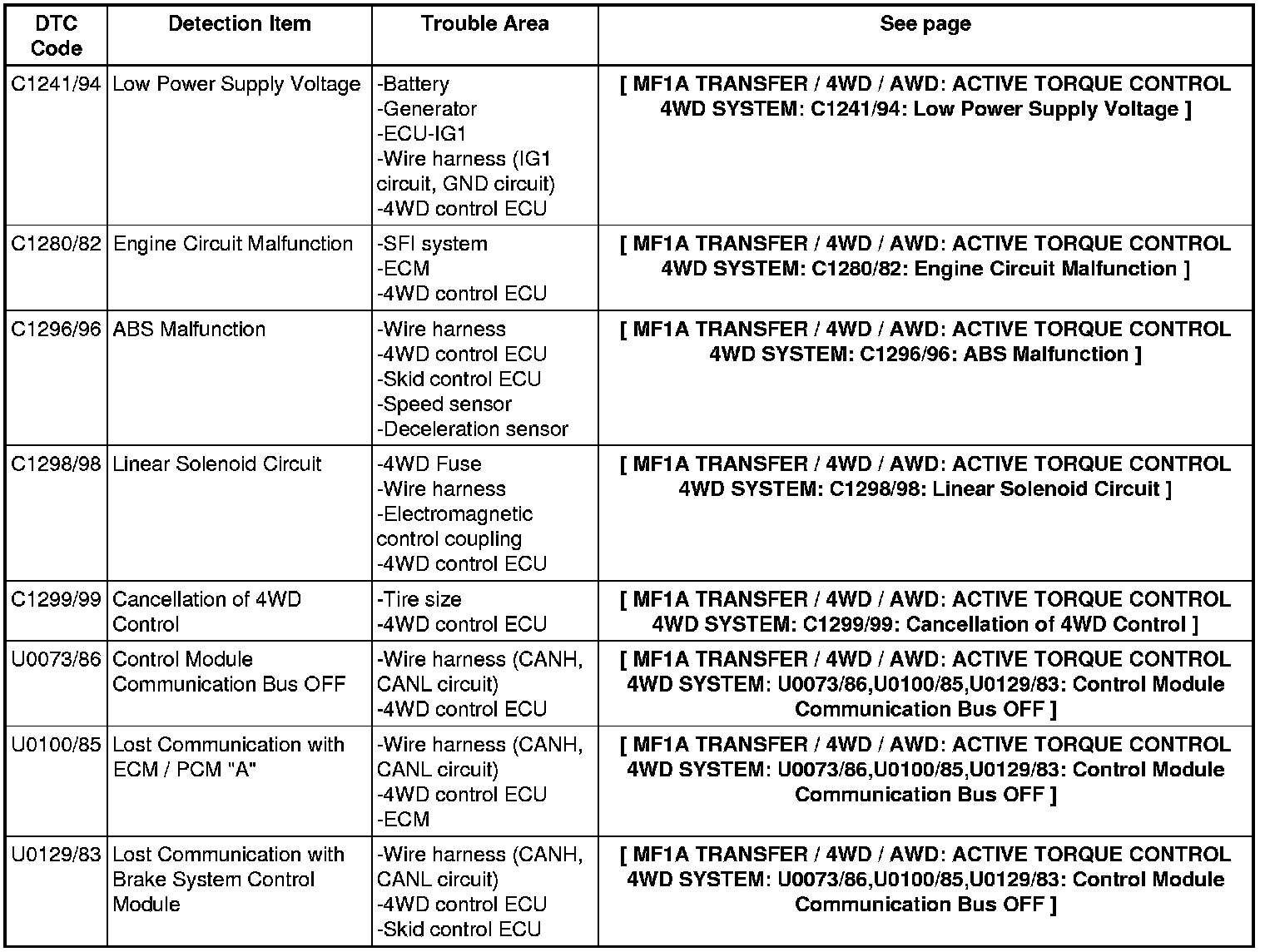

MF1A TRANSFER / 4WD / AWD: ACTIVE TORQUE CONTROL 4WD SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
Active Torque Control 4WD System
C1241/94 - C1299/99 / U0073/86 - U0129/83:
