Torque Specifications






SERVICE SPECIFICATIONS: U760E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

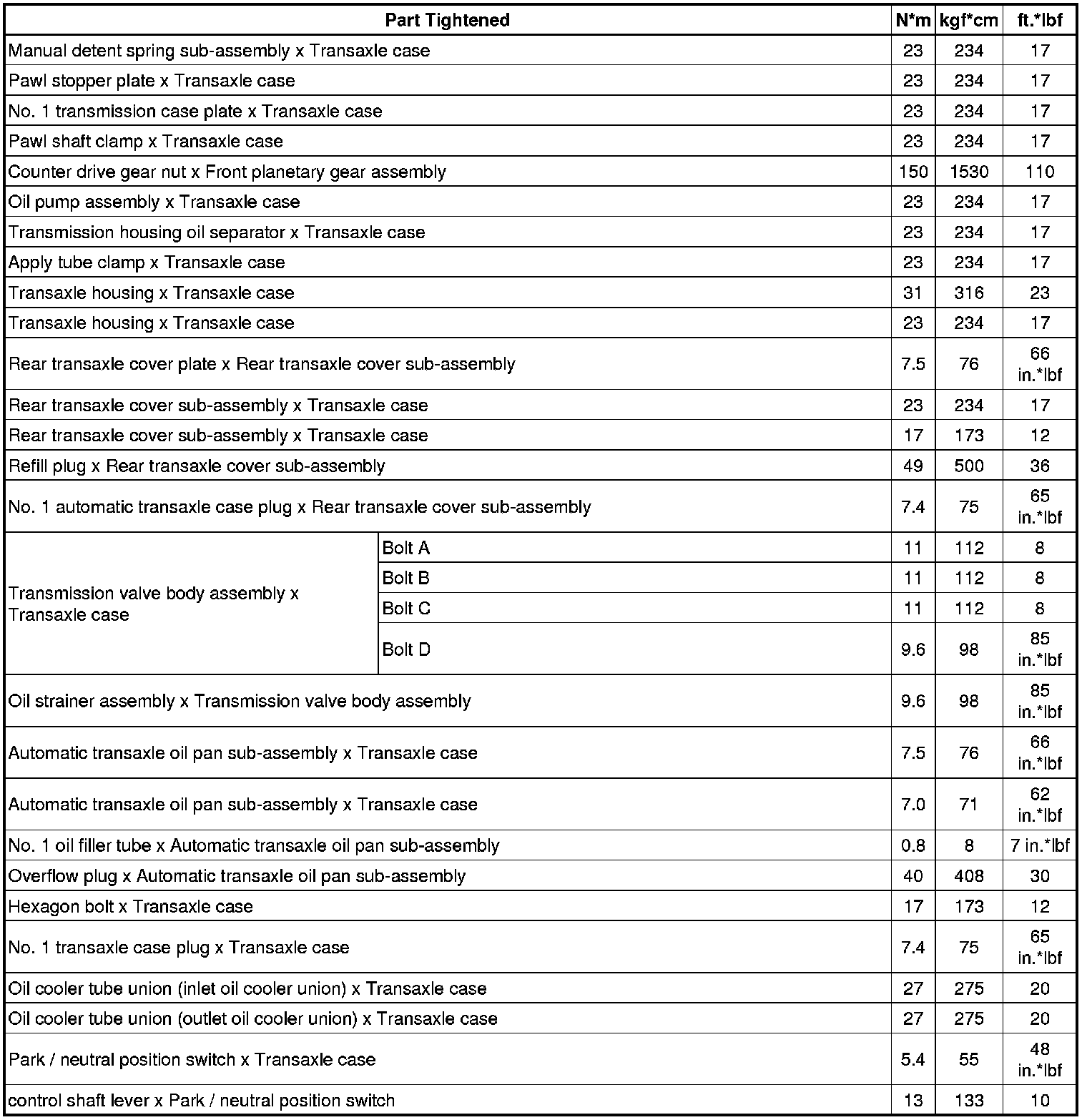

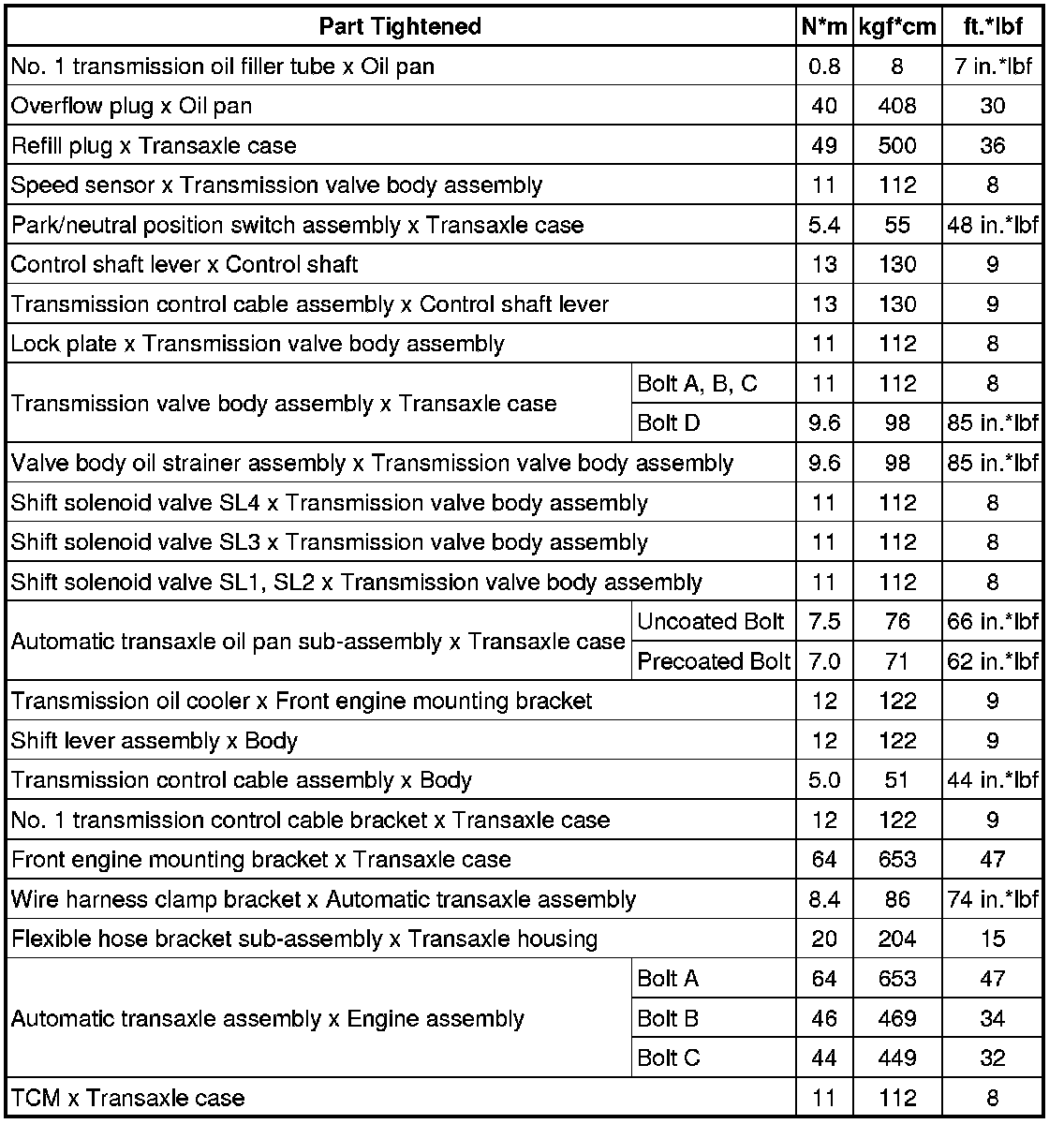

Automatic Transaxle Unit:





Oil Pump:





Shift Solenoid Valve:





Differential Case:
