Fuse Block

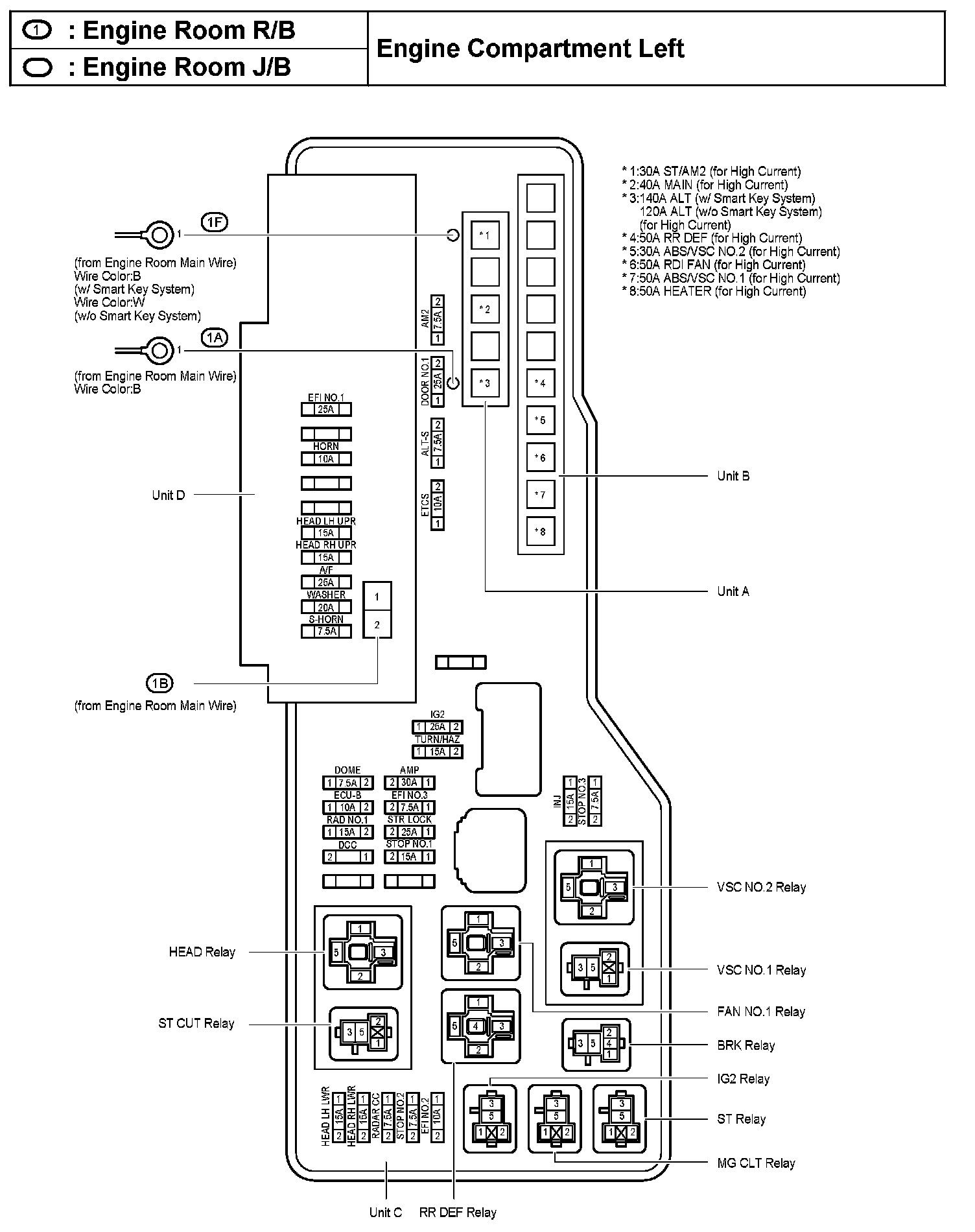

Engine Room R/B, J/B - Engine Compartment Left:

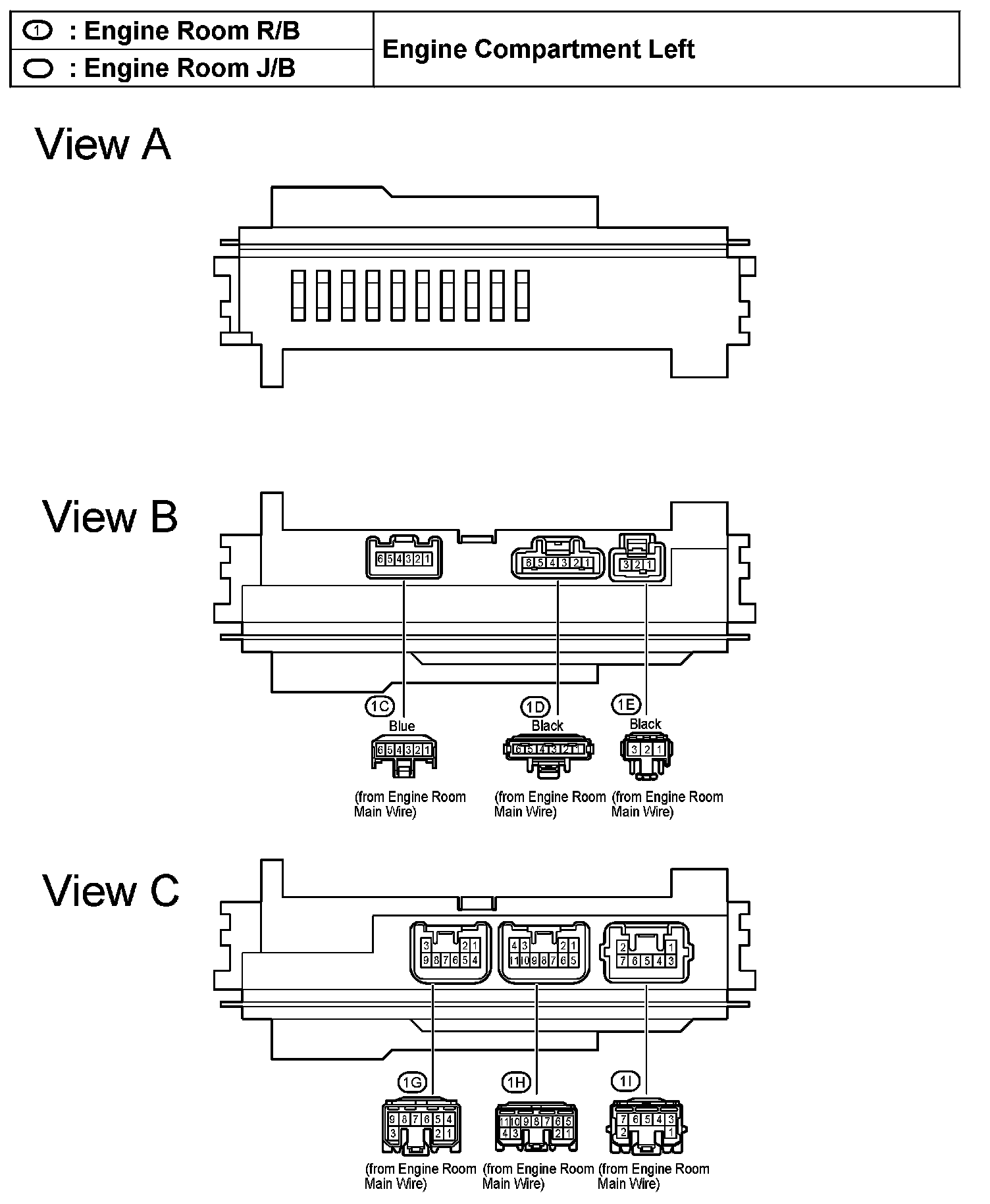

Engine Room R/B, J/B - Engine Compartment Left:

Engine Room R/B, J/B - Engine Compartment Left:

Instrument Panel J/B - Lower Finish Panel:

Instrument Panel J/B - Lower Finish Panel:

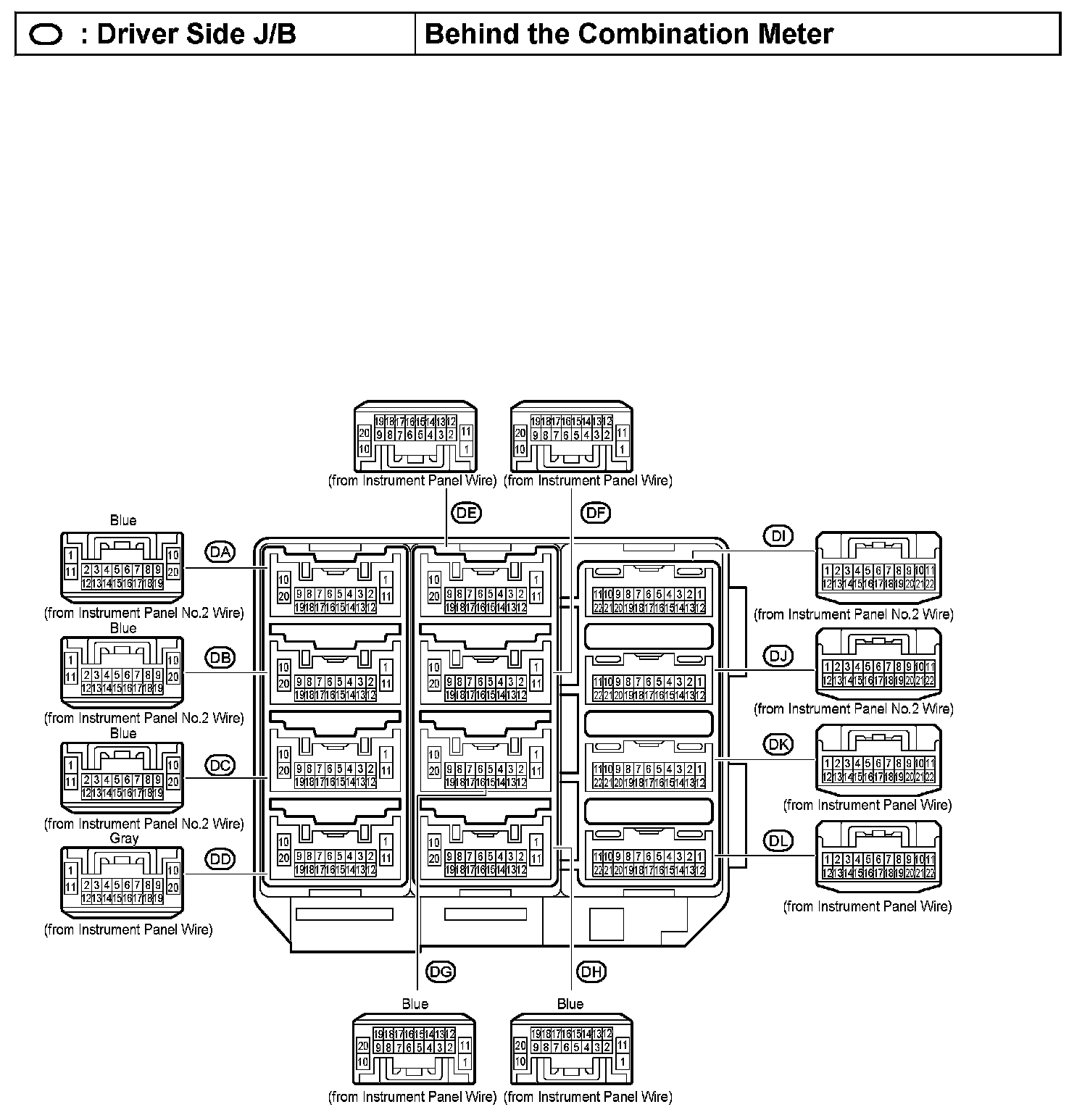

Driver Side J/B - Behind The Combination Meter:

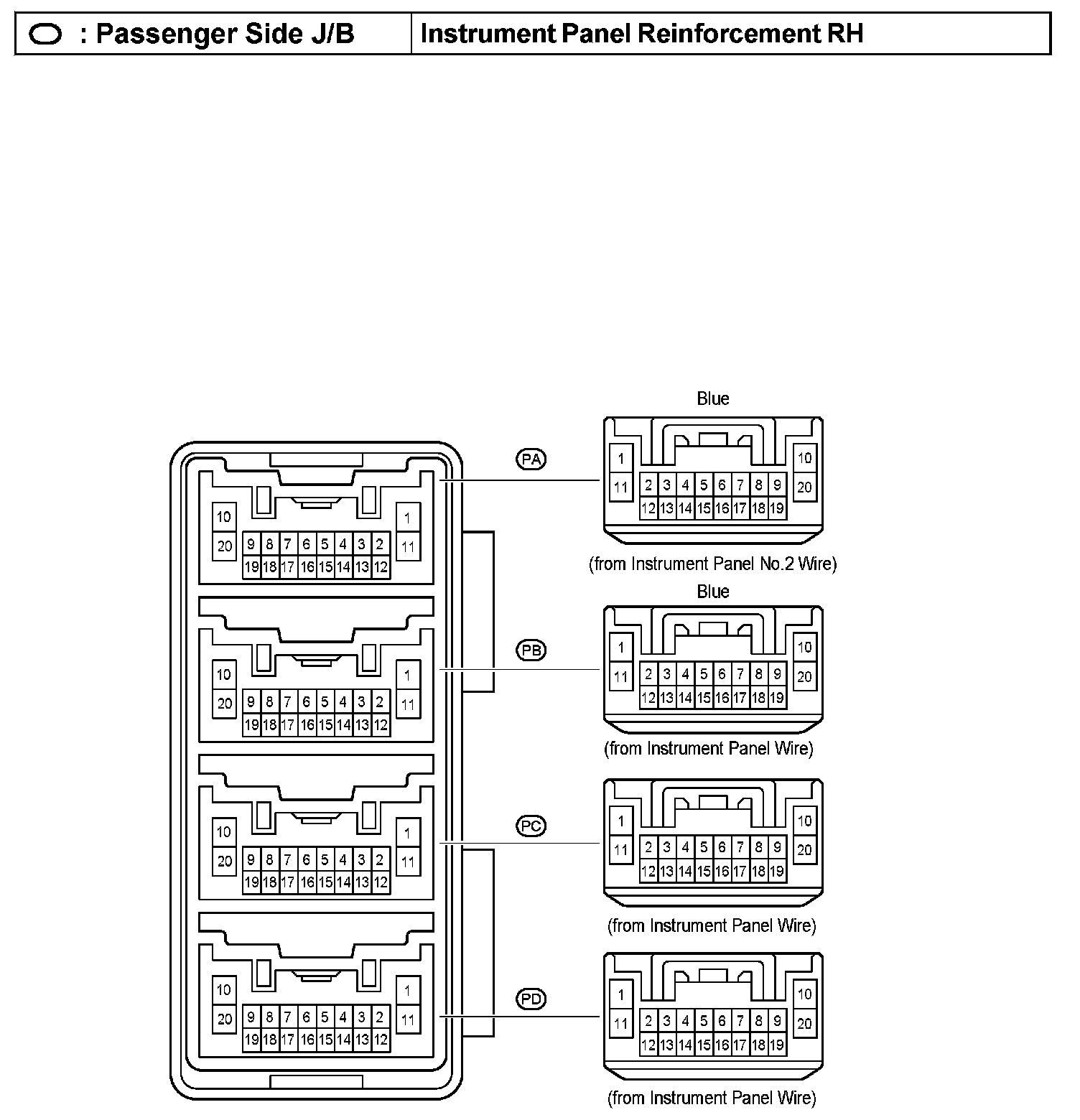

Passenger Side J/B - Instrument Panel Reinforcement RH:

Junction Connector (CAN) - Behind The Glove Box:
