Front Wiper Motor

WIPER / WASHER: FRONT WIPER MOTOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY
(a) for RH Side




(1) Operate the windshield wiper motor assembly.
(2) Stop the windshield wiper motor assembly operation.
(3) Check the automatic stop (park) position.
OK:

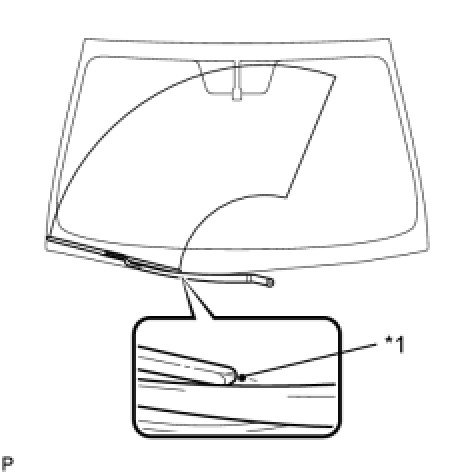

The front wiper stops at the position shown in the illustration.
(b) for LH Side




(1) Operate the windshield wiper motor assembly.
(2) Stop the windshield wiper motor assembly operation.
(3) Check the automatic stop (park) position.
OK:
The front wiper stops at the position shown in the illustration.

Text in Illustration
