Removal

WIPER / WASHER: WASHER NOZZLE (for Front Side): REMOVAL

REMOVAL

1. REMOVE FRONT WASHER NOZZLE SUB-ASSEMBLY

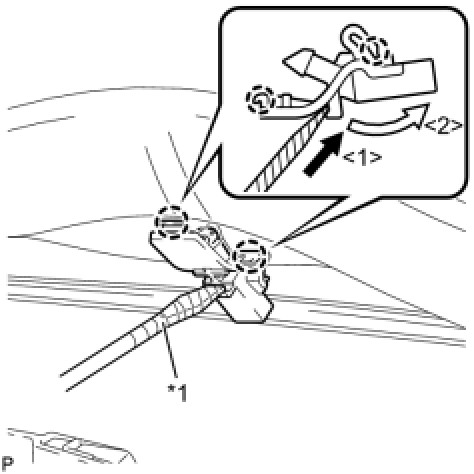

(a) Using a screwdriver, disengage the 2 claws and separate the washer nozzle sub-assembly as shown in the illustration.
NOTICE: Be careful not to damage the windshield.
HINT: Tape the screwdriver tip before use.

Text in Illustration









(b) Remove the washer nozzle sub-assembly from the washer hose.
NOTICE: Washer nozzles cannot be reused.
