Torque Specifications

SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

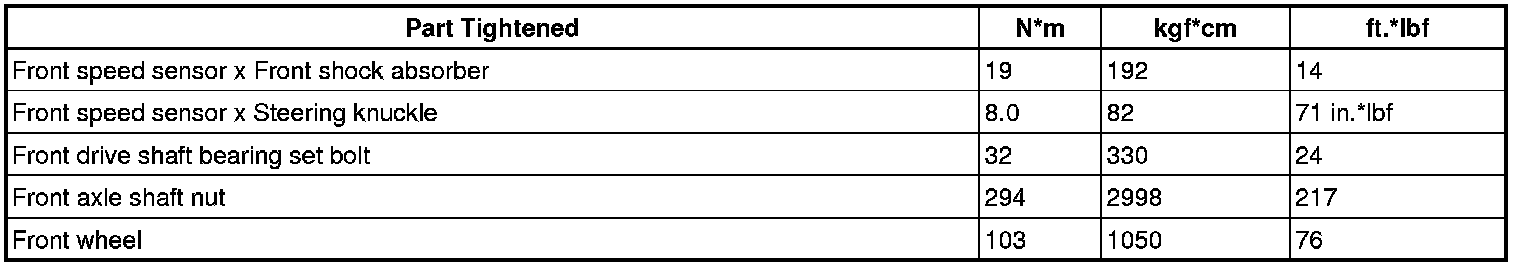

Front Drive Shaft

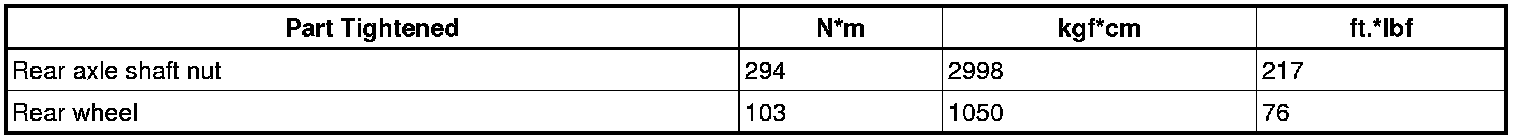

Rear Drive Shaft

Propeller Shaft
