Service Data








SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

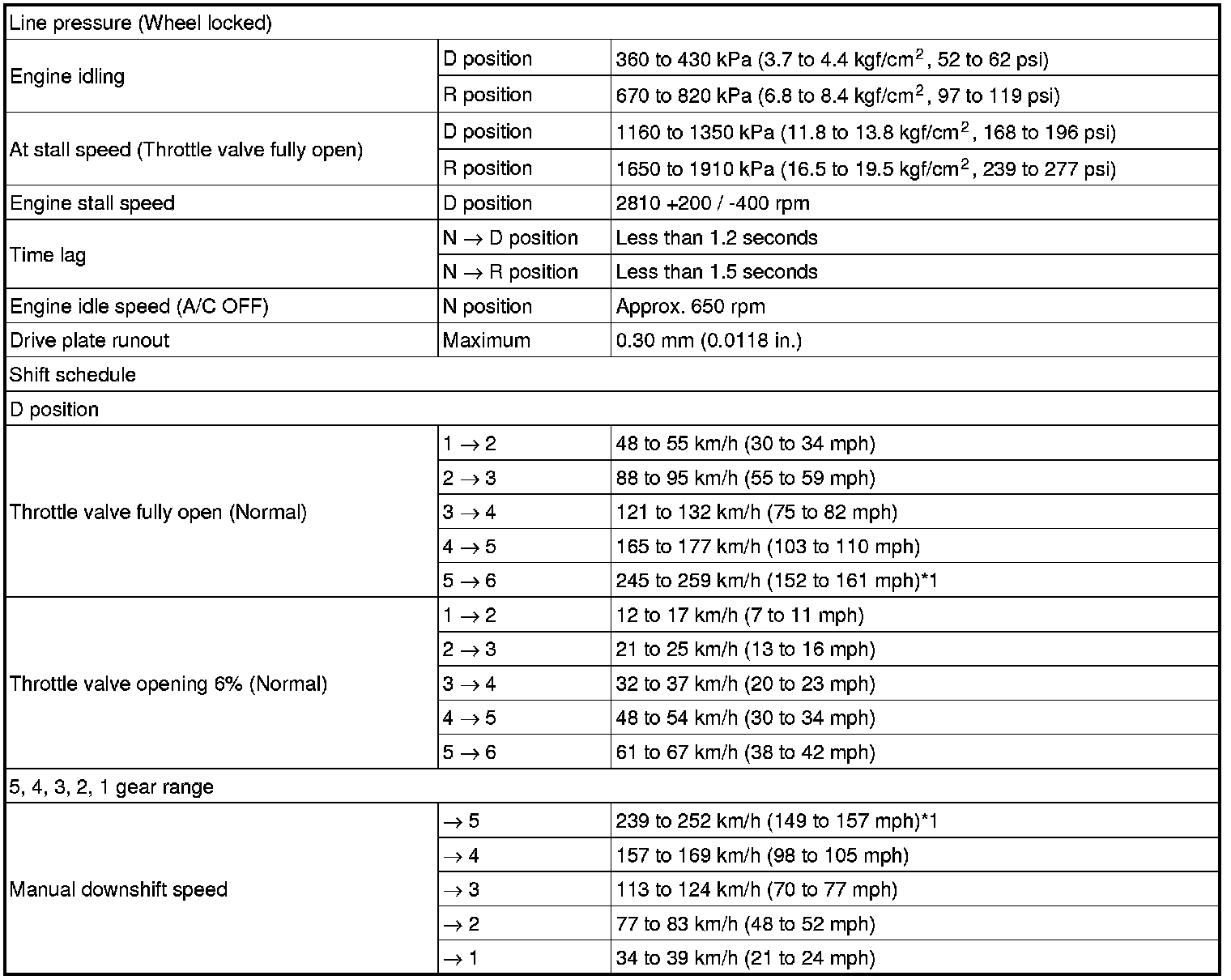

SERVICE DATA





*1: Speed limiter active

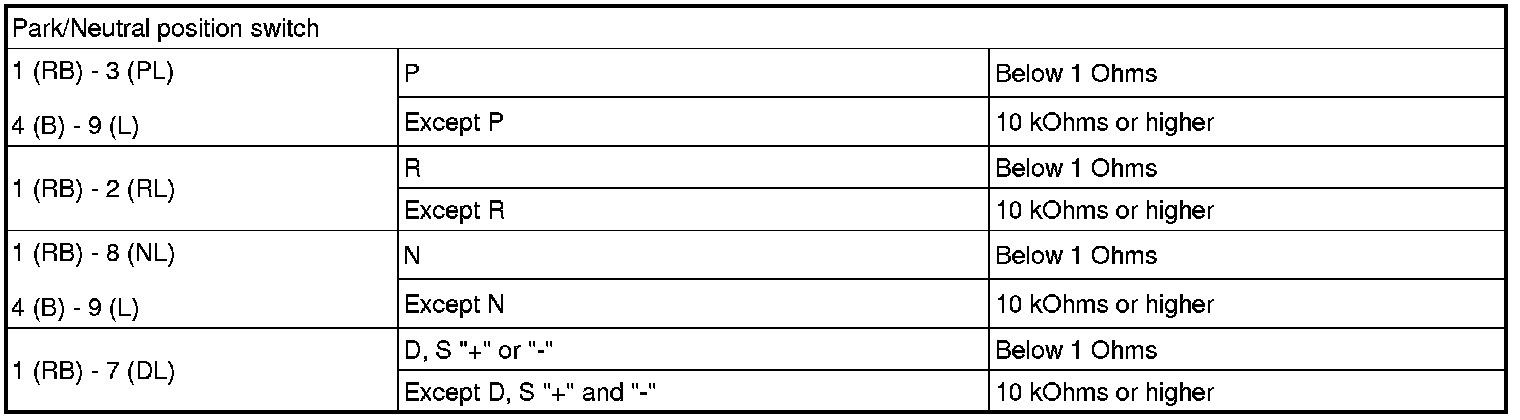

Park/Neutral Position Switch

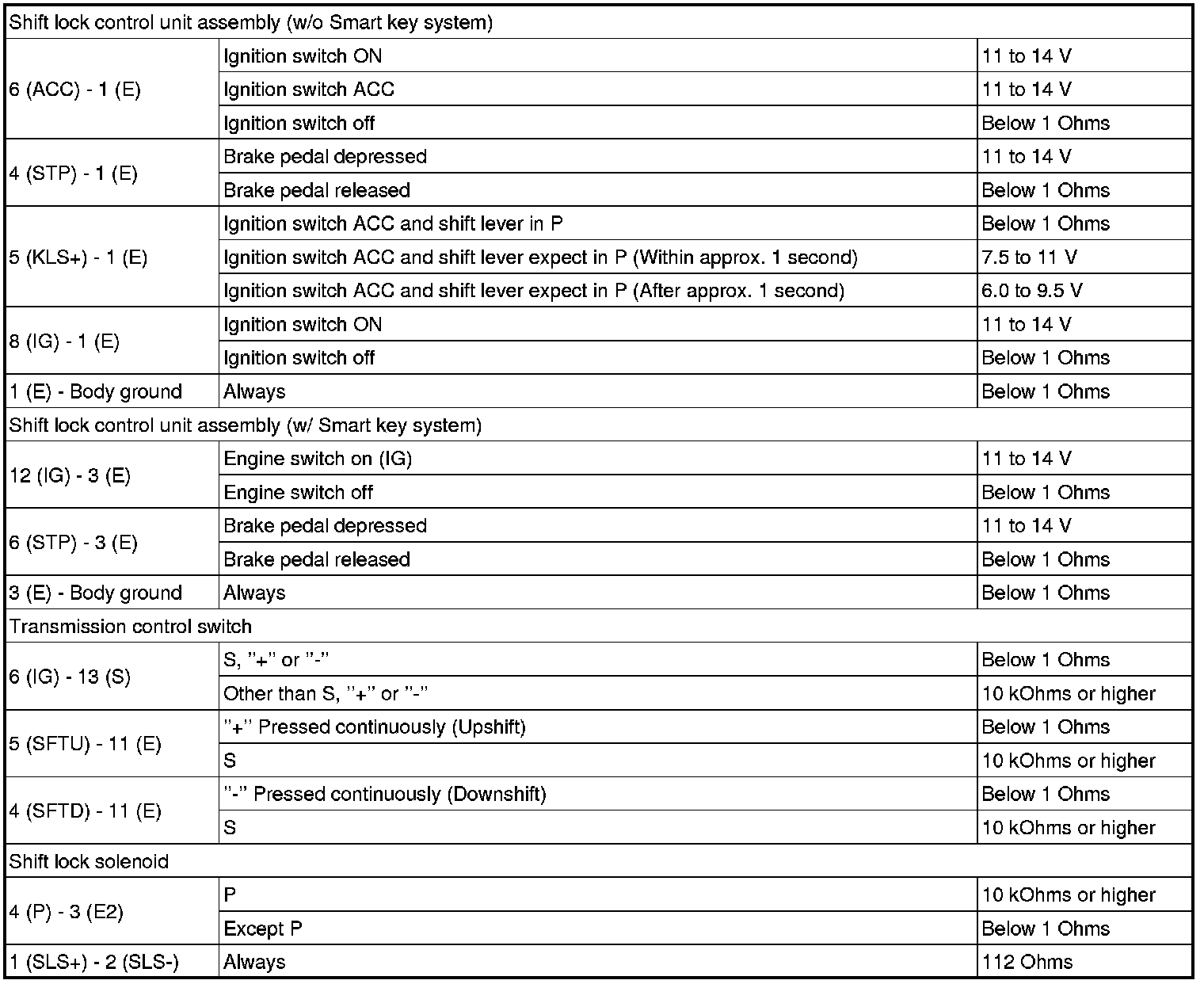

Shift Lever





Shift Solenoid Valve





Automatic Transaxle Unit

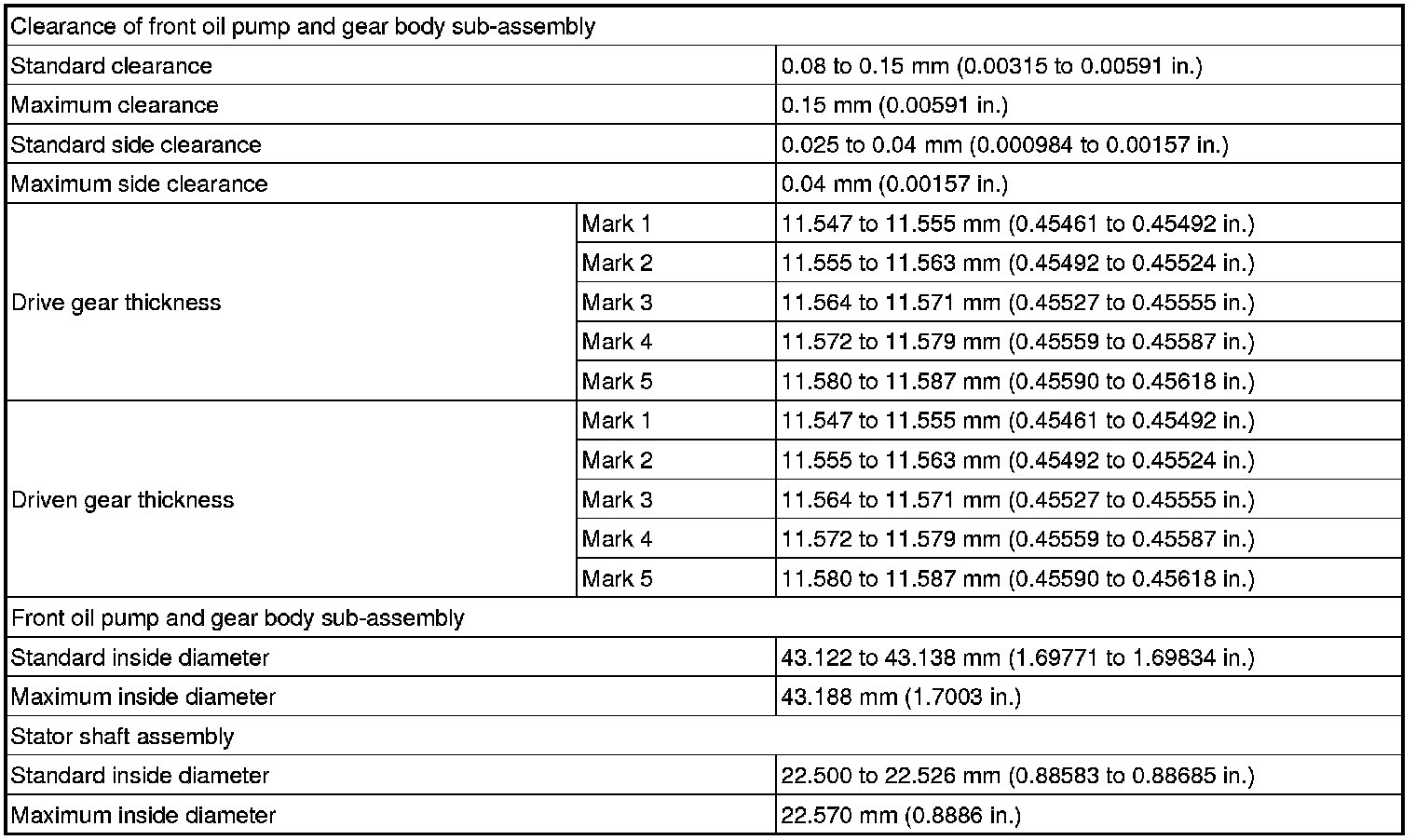

Oil Pump





Differential Case
