Steering Wheel: Testing and Inspection

STEERING COLUMN: STEERING WHEEL: INSPECTION

INSPECTION

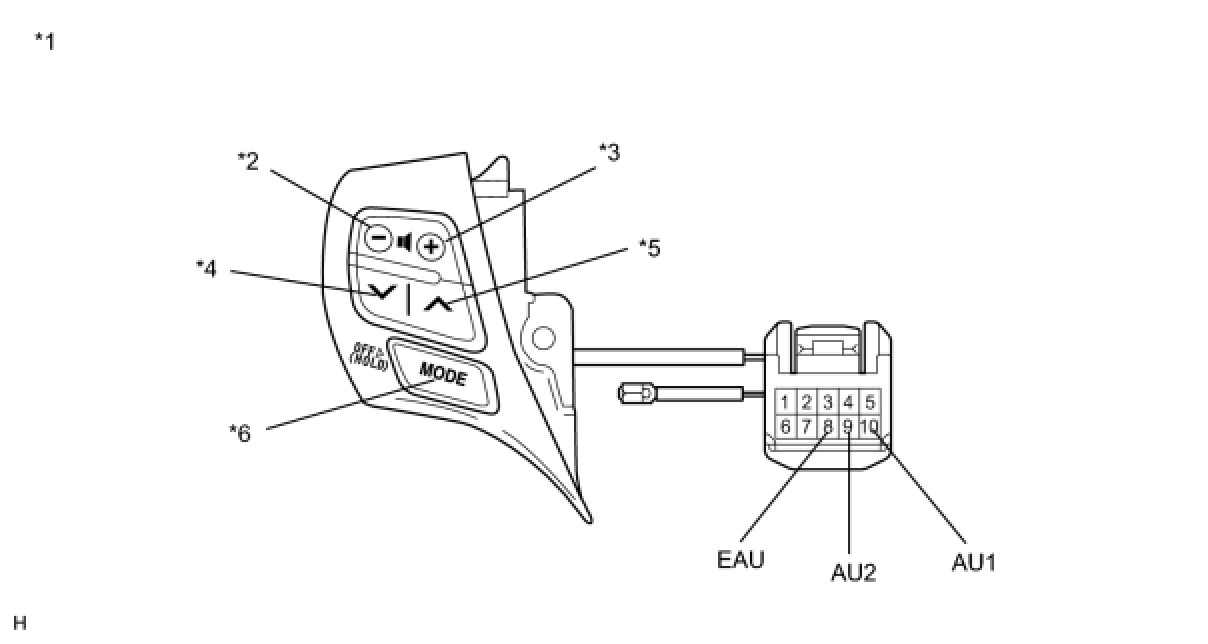

1. INSPECT STEERING PAD SWITCH LH (w/o Microphone)
(a) Disconnect the steering pad switch LH connector.





(b) Measure the resistance according to the values in the table below.

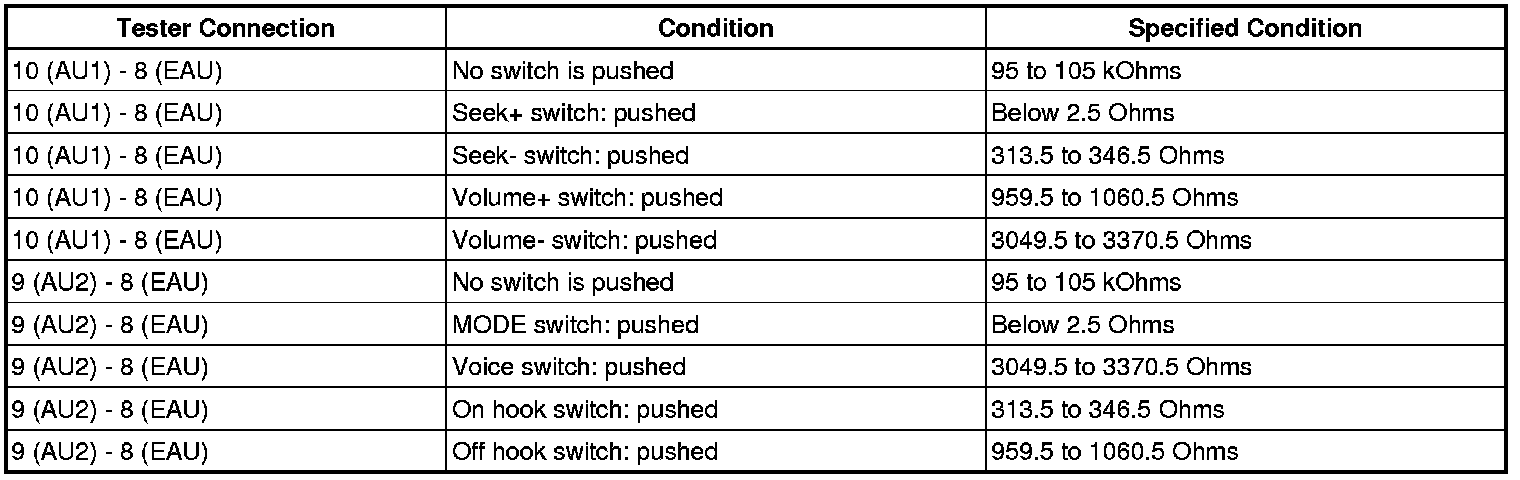

Standard Resistance:

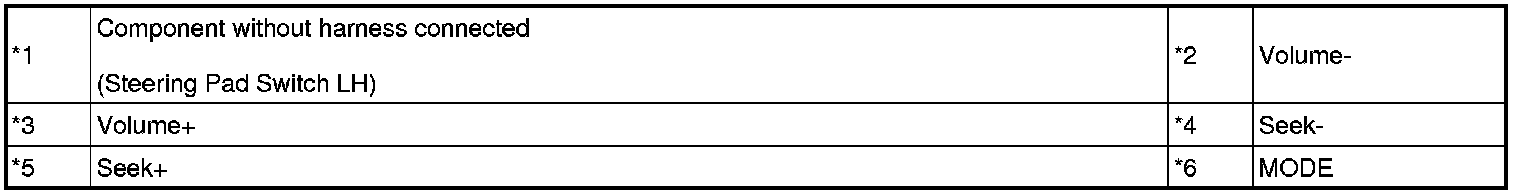

Text in Illustration





2. INSPECT STEERING PAD SWITCH ASSEMBLY (w/ Microphone)
(a) Disconnect the steering pad switch assembly connector.





(b) Measure the resistance according to the values in the table below.
Standard Resistance:

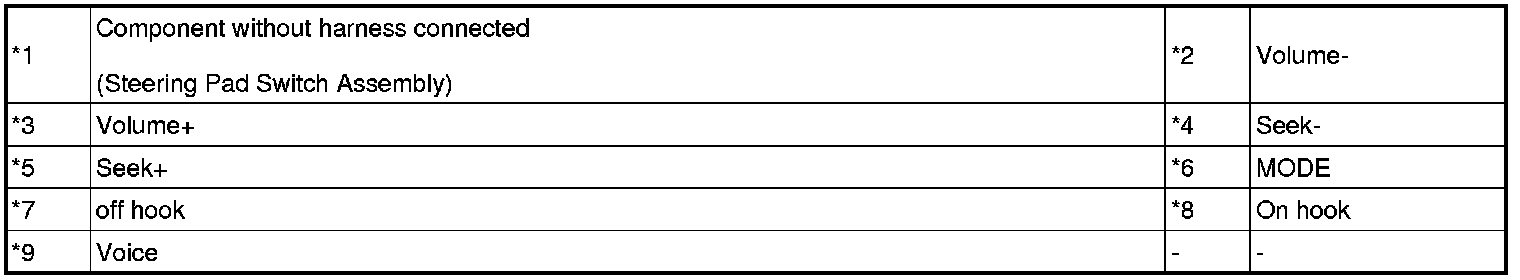

Text in Illustration
