Starter Relay: Testing and Inspection

1AR-FE STARTING: RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

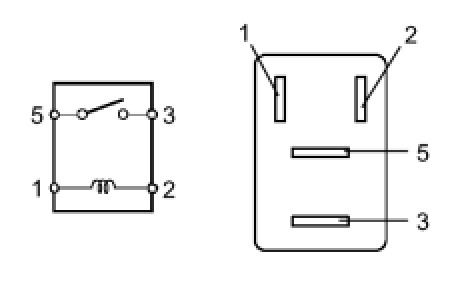

1. INSPECT STARTER RELAY

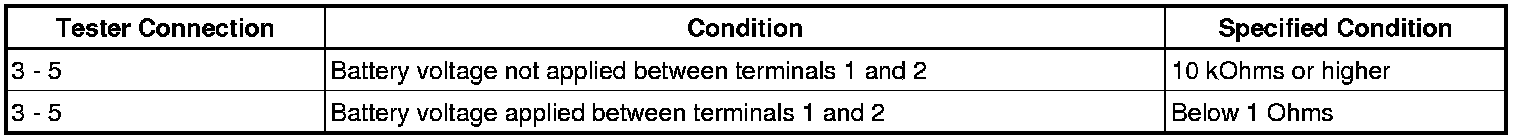

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the resistance is not as specified, replace the relay.
