Fuse: Locations

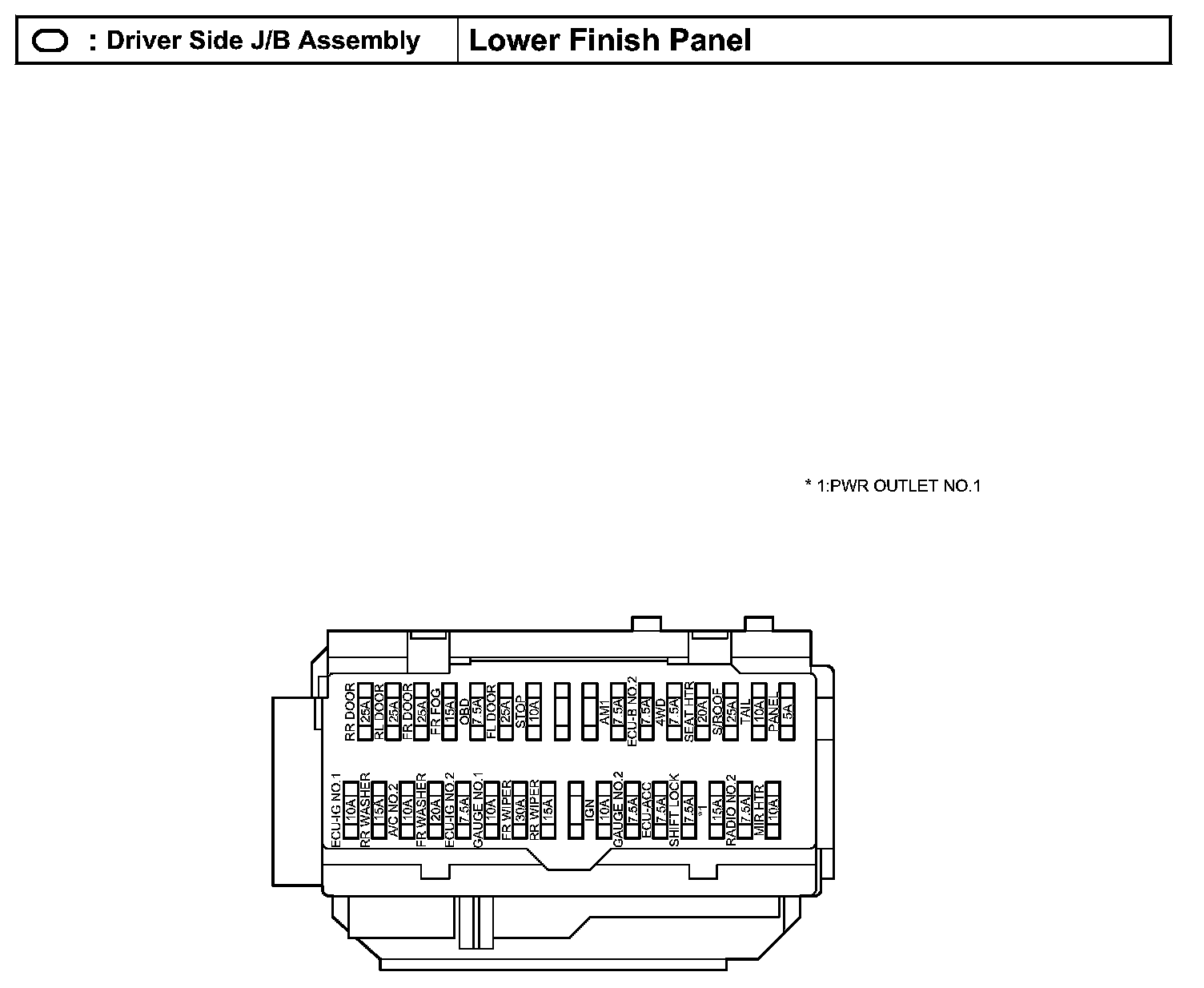

Driver Side J/B Assembly - Lower Finish Panel:



Driver Side J/B Assembly - Lower Finish Panel:



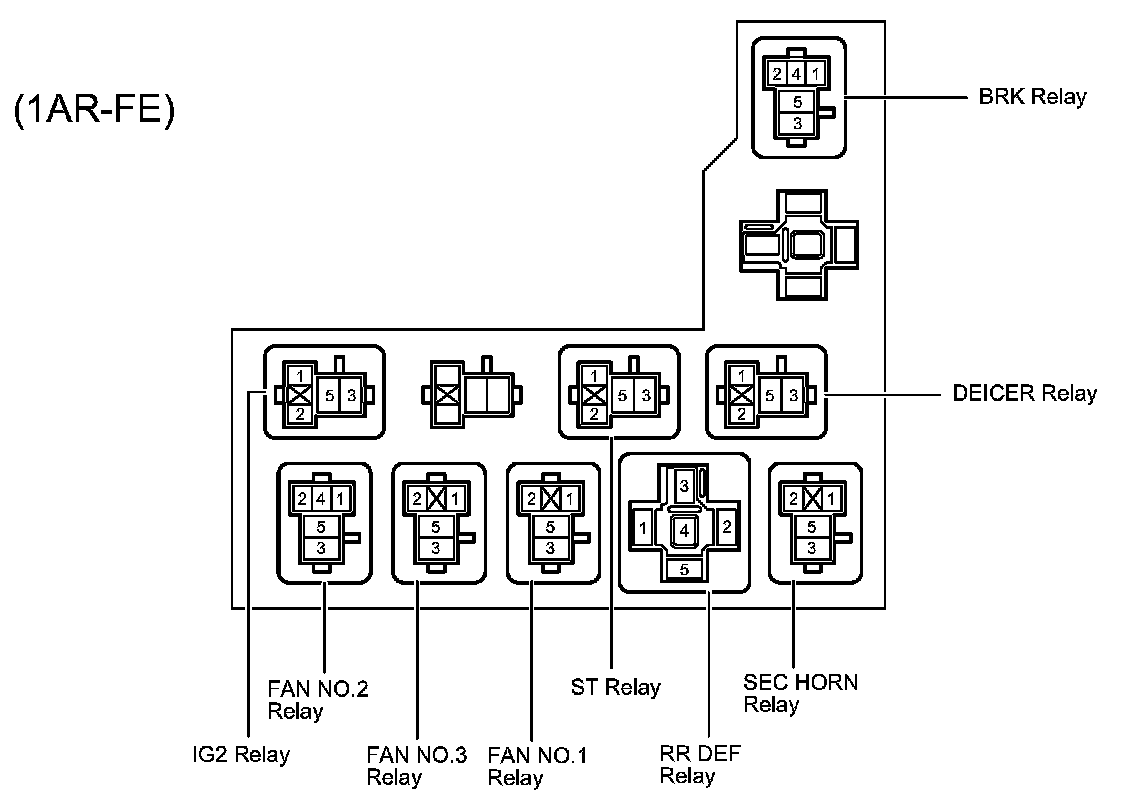

Engine Room R/B, J/B - Front Fender Apron LH:



Engine Room R/B, J/B - Front Fender Apron LH:



Engine Room R/B, J/B - Front Fender Apron LH:
