Removal

LIGHTING (INT): LUGGAGE COMPARTMENT ROOM LIGHT: REMOVAL

REMOVAL

1. REMOVE NO. 2 ROOM LIGHT ASSEMBLY

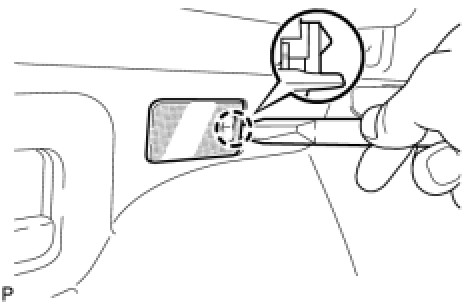

(a) Using a moulding remover, disengage the claw.
(b) Disconnect the connector and remove the No. 2 room light assembly.
