Removal








LIGHTING (EXT): AUTOMATIC LIGHT CONTROL SENSOR: REMOVAL

REMOVAL

1. REMOVE DEFROSTER NOZZLE GARNISH Removal
2. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

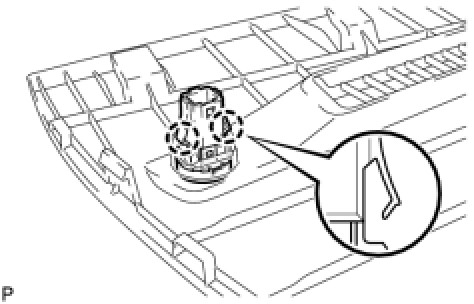

(a) Disengage the 2 claws and remove the automatic light control sensor.
