Torque Specifications








SPECIFICATIONS: 1AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

ENGINE





CAMSHAFT

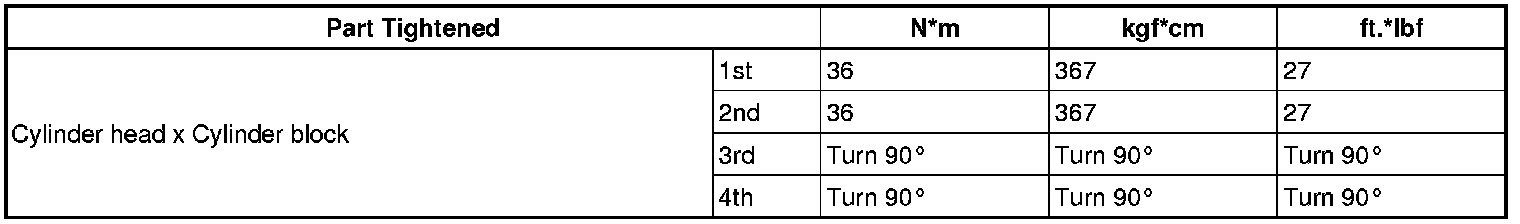

CYLINDER HEAD GASKET

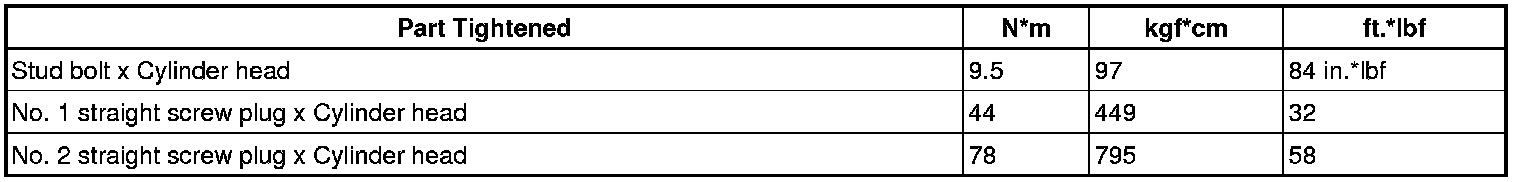

CYLINDER HEAD

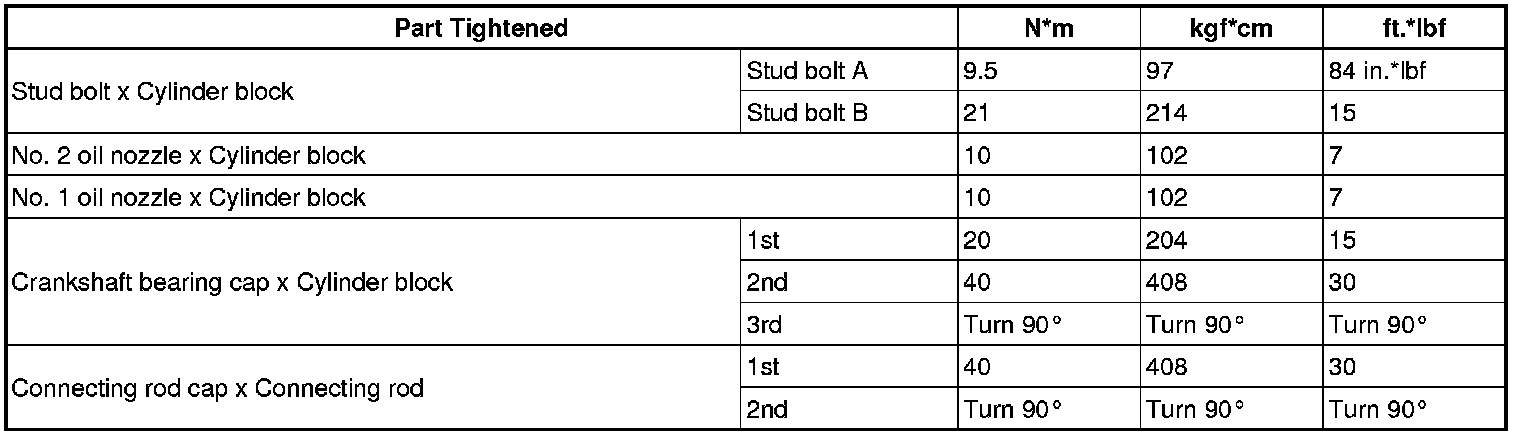

CYLINDER BLOCK





ENGINE REAR OIL SEAL

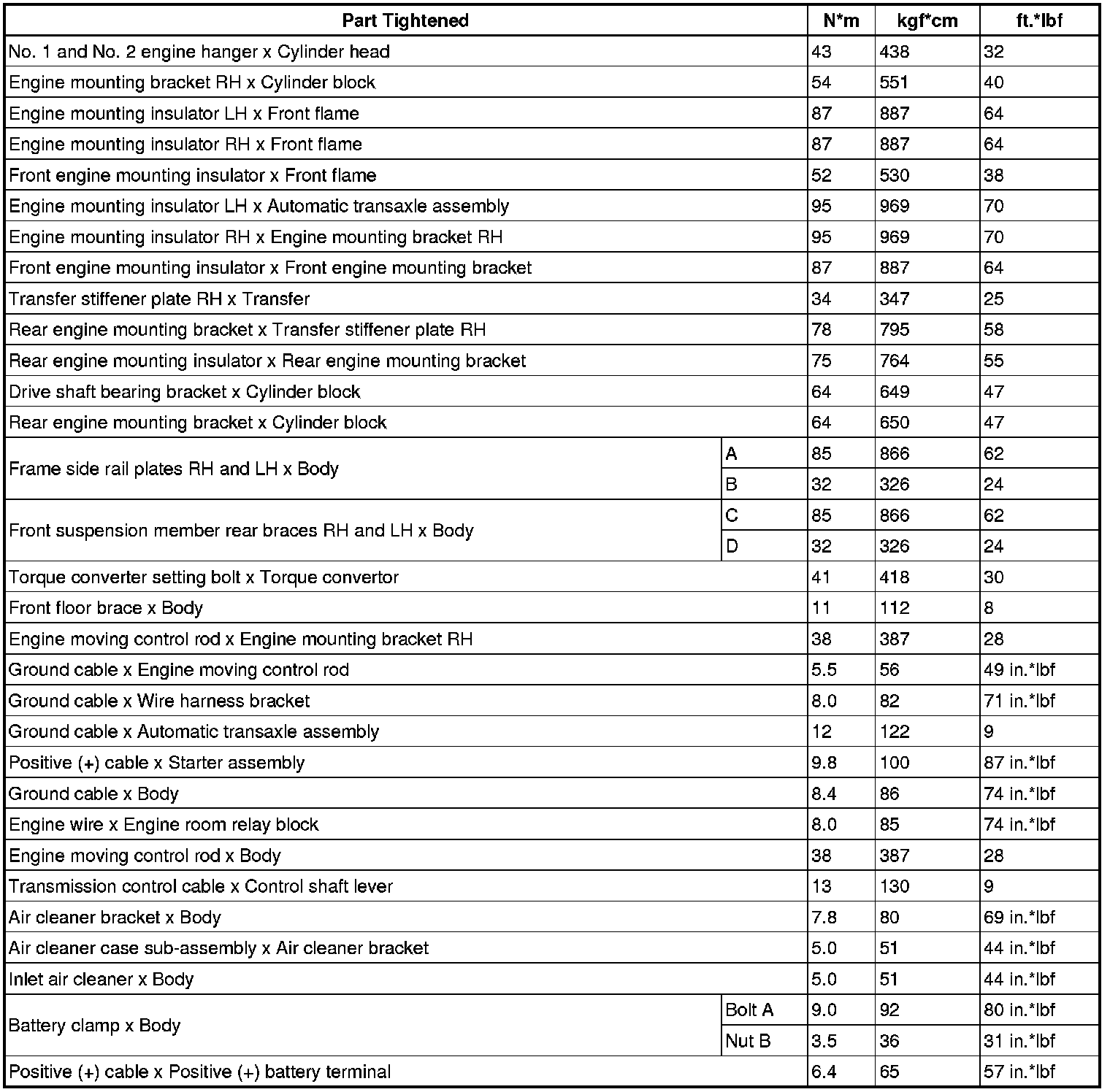

ENGINE ASSEMBLY





ENGINE UNIT
