Venza AWD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

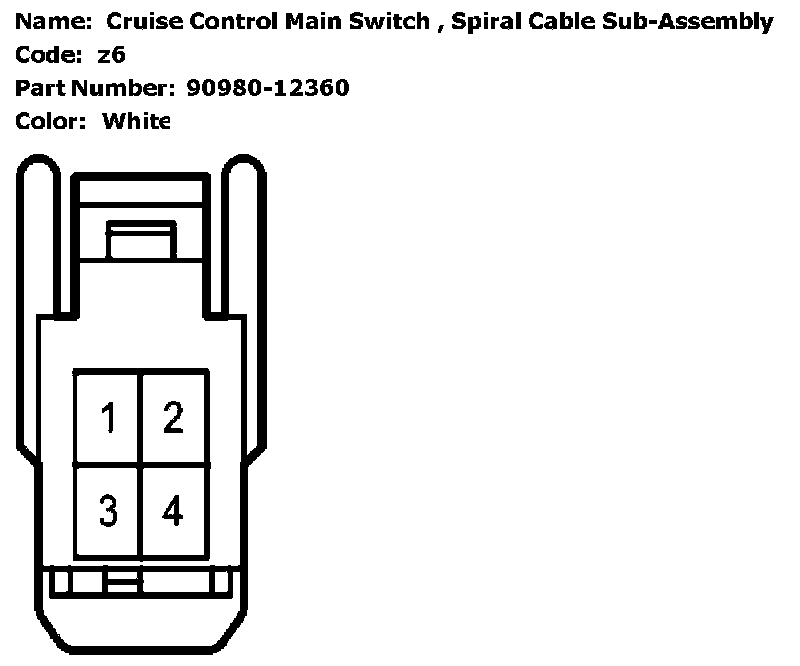

z6 (Cruise Control Main Switch, Spiral Cable Sub-Assembly)
z6 (Cruise Control Main Switch, Spiral Cable Sub-Assembly)
